TR6 Goodparts Trail arm kits mounting just to the frame( no body) and shims?

Kingcat

Freshman Member
Country flag
Offline
I’m installing Goodparts Trail arm kits on my frame. Somewhere in the instruction or I read on a post that to set the toe shims are needed between the mounts and frame. It was so long ago since disassembly I have no idea how many shims were there originally. Is this something I shouldn’t worry about now since it’ll be awhile before the suspension is fully loaded. Or should I put a couple in to fit up the TA’s Thanks

If the toe (or wheel base) is too far off without the shims or the wrong number of shims you'll know it on your first drive.
Been there.

As poolboy says, you still need to shim to even out wheelbase and adjust rear toe. The significance of the adjustable bracket is that they let you adjust camber without all the exercises of figuring your baseline then juggling one, two or three notch brackets and whether or not they should be notches up or notches down to adjust rear camber. After that little exercise, you get to recheck rear camber and if it is not where it should, you get to disassemble, rejuggle everything and reassemble then recheck repeating as necessary until you get it where you want it. I talked a friend into getting a set for his TR250 before he took it in for an alignment. The folks at GT East knew what rear camber adjustment was like on these cars and went into it expecting the usual task ahead. Then they saw the adjustable trailing arm brackets and he said they just smiled and then asked why he didn't tell them he had those on the car. Everyone was happy.

The only thing I didn't like about that kit, and it seems the vast majority of kits out there regardless of source is the hardware. Richard uses SAE hardware which has somewhat restricted bolt grip length choices available and longer threaded sections. I replaced the supplied hardware with AN stuff so I could make sure that the threads would not be loaded in shear (bad juju there). The primary pivot bolts are an AN7 but I don't recall specifically which grip length dash number I used. I think it was -42 which is a 3 11/16" grip length but take a measurement on the movable block outer to outer face to confirm the grip length you need. The callout for the bolt you need if -42 is the correct grip length would be AN7-42A for an undrilled head and undrilled shank 7/16" bolt. Another thing is that you will probably need slightly longer bracket to frame bolts unless Richard is kitting them with longer bolts now to allow shim fitment compared to when I bought them many years ago. Those would be an AN6-xxA but I have no idea off hand what grip dash number other than it was in the -5x or low -6x range. It's been many years now and the memory has gotten a bit foggy on that level of detail.

And remember, you can always "adjust" grip lengths by going the next dash longer and stacking washers on the nut side (or on the bracket to frame bolts more so on the bolt head side) if need be to keep the threads from seeing shear loads. Good sources for AN hardware are Aircraft Spruce and Pegasus Racing.I find that I can buy AN stuff from Spruce and often from Pegasus for less than what I would pay at local hardware stores or local fastener houses. Once or twice a year I take a look at what I have on hand and place what amount to a stock order with Spruce as a result. Pegasus has a nice little explainer on AN fastener callouts here:


Last edited:
As poolboy says, you still need to shim to even out wheelbase and adjust rear toe. The significance of the adjustable bracket is that they let you adjust camber without all the exercises of figuring your baseline then juggling one, two or three notch brackets and whether or not they should be notches up or notches down to adjust rear camber. After that little exercise, you get to recheck rear camber and if it is not where it should, you get to disassemble, rejuggle everything and reassemble then recheck repeating as necessary until you get it where you want it. I talked a friend into getting a set for his TR250 before he took it in for an alignment. The folks at GT East knew what rear camber adjustment was like on these cars and went into it expecting the usual task ahead. Then they saw the adjustable trailing arm brackets and he said they just smiled and then asked why he didn't tell them he had those on the car. Everyone was happy.

The only thing I didn't like about that kit, and it seems the vast majority of kits out there regardless of source is the hardware. Richard uses SAE hardware which has somewhat restricted bolt grip length choices available and longer threaded sections. I replaced the supplied hardware with AN stuff so I could make sure that the threads would not be loaded in shear (bad juju there). The primary pivot bolts are an AN7 but I don't recall specifically which grip length dash number I used. I think it was -42 which is a 3 11/16" grip length but take a measurement on the movable block outer to outer face to confirm the grip length you need. The callout for the bolt you need if -42 is the correct grip length would be AN7-42A for an undrilled head and undrilled shank 7/16" bolt. Another thing is that you will probably need slightly longer bracket to frame bolts unless Richard is kitting them with longer bolts now to allow shim fitment compared to when I bought them many years ago. Those would be an AN6-xxA but I have no idea off hand what grip dash number other than it was in the -5x or low -6x range. It's been many years now and the memory has gotten a bit foggy on that level of detail.

And remember, you can always "adjust" grip lengths by going the next dash longer and stacking washers on the nut side (or on the bracket to frame bolts more so on the bolt head side) if need be to keep the threads from seeing shear loads. Good sources for AN hardware are Aircraft Spruce and Pegasus Racing.I find that I can buy AN stuff from Spruce and often from Pegasus for less than what I would pay at local hardware stores or local fastener houses. Once or twice a year I take a look at what I have on hand and place what amount to a stock order with Spruce as a result. Pegasus has a nice little explainer on AN fastener callouts here:

Thanks for the great info on the bolts. Not sure if my kit came with the longer bolts. Since the suspension won't be put under load for a good while should I put acouple of shims in just for mounting the TA's now. Thanks again. One of those long restoration stories 40 yrs in the making. Lot's of questions. Thanks

Probably not a bad idea to get things semi-dialed in if the suspension and hub are in place and the car is already up in the air but not really required at this point. You can at least get the wheelbase adjustment pretty close and depending on what kind of precision measuring instruments or if have them, toe plates, you can do a little in that area too. Just bear in mind anything you do now regarding rear toe will probably have to be readjusted somewhat once you start adjusting camber. They are interrelated to some degree so an adjustment to one means that you need to at least check the other. And make sure that you allow the suspension to "settle" by rolling the car back and forth a few times unless you are using some hubstands on a really nice smooth level surface that allow the suspension to settle as you lower the car.

Get some string. The roughing out of the rear suspension is a lot of fun. Find the center line of the frame, use it for a reference
for installing the shims. Bear in mind you are setting the THRUST alignment also . The wheel base and the tow need to be reasonably close
to drive it to the alignment shop .Just get in the ballpark ,Buy the beer when you get there!!
Mad dog

This is great advice that will give me some direction to use now. These are things I wouldn't have thought of at this point in reassembly. Thanks

Probably not a bad idea to get things semi-dialed in if the suspension and hub are in place and the car is already up in the air but not really required at this point. You can at least get the wheelbase adjustment pretty close and depending on what kind of precision measuring instruments or if have them, toe plates, you can do a little in that area too. Just bear in mind anything you do now regarding rear toe will probably have to be readjusted somewhat once you start adjusting camber. They are interrelated to some degree so an adjustment to one means that you need to at least check the other. And make sure that you allow the suspension to "settle" by rolling the car back and forth a few times unless you are using some hubstands on a really nice smooth level surface that allow the suspension to settle as you lower the car.
Thanks for the great advice. I'll keep the info in mind as I set things up.

Get some string. The roughing out of the rear suspension is a lot of fun. Find the center line of the frame, use it for a reference
for installing the shims. Bear in mind you are setting the THRUST alignment also . The wheel base and the tow need to be reasonably close
to drive it to the alignment shop .Just get in the ballpark ,Buy the beer when you get there!!
Mad dog
Driving to the alignment will call for a celebration.

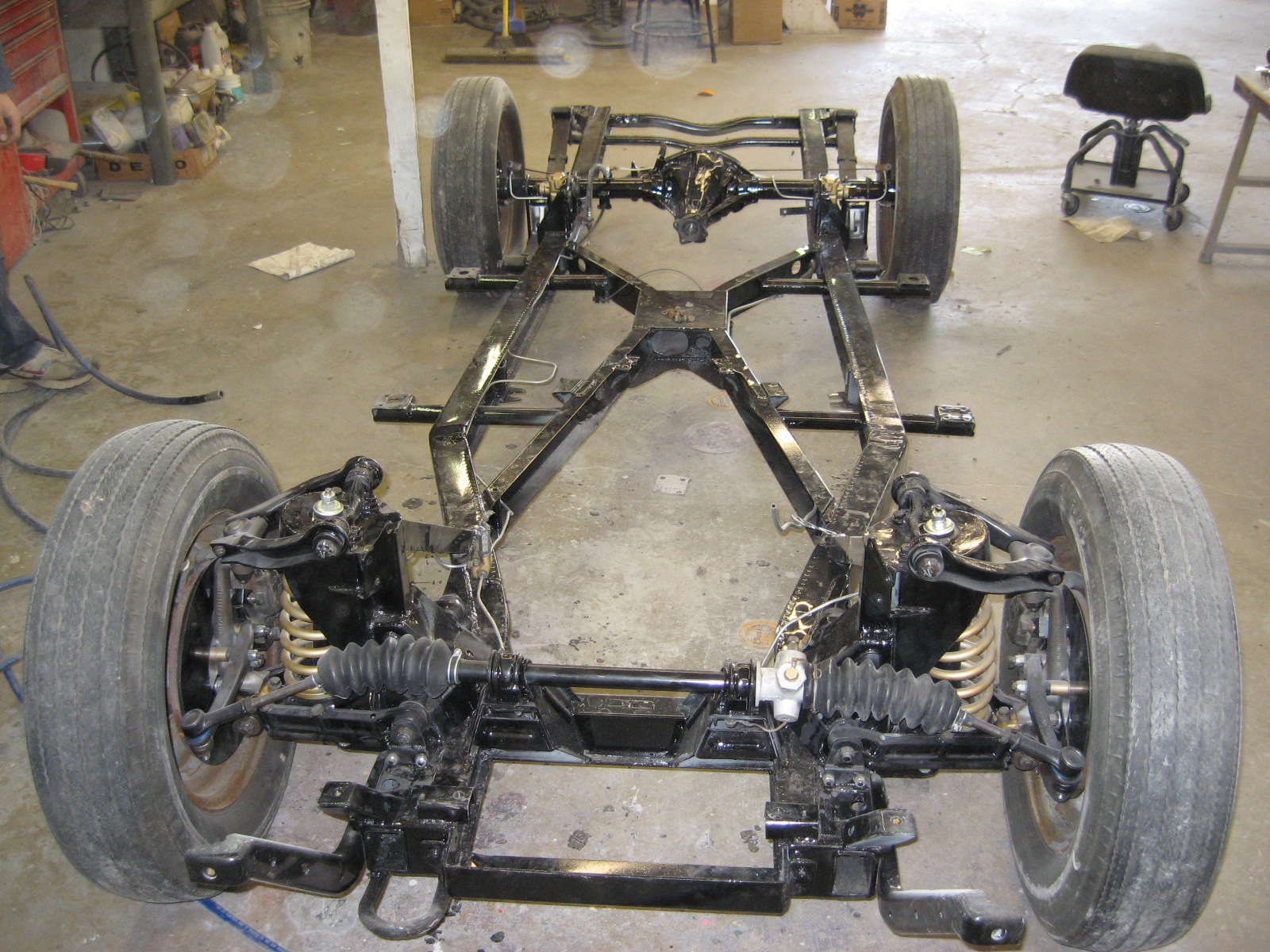

Yes kingcat, it will be great but dont under estimate the thrill of seeing FOUR wheels on the ground

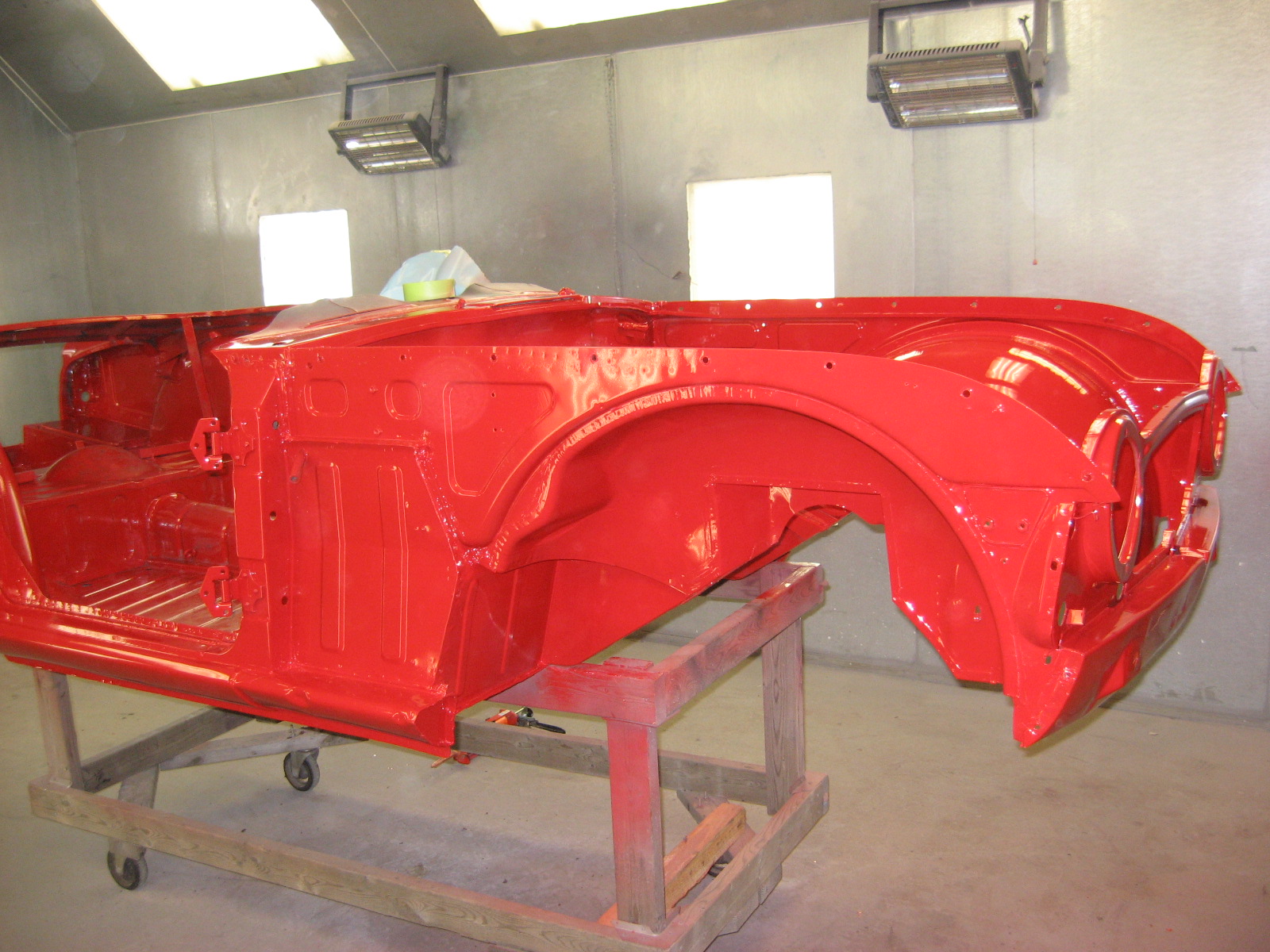

holding up a well done chassis . Then the motor can be set in and soon the body can be affixed!!
Mad dog


Attachments

  • tr4 gu frame.jpg
    tr4 gu frame.jpg
    700.8 KB · Views: 27
  • tr4 groundup1.jpg
    tr4 groundup1.jpg
    530 KB · Views: 22
