Things I have learned from buying a car in pieces:

[Jimflorida]

Lesson #1: It is a heck of a lot easier to put something together if you are the one who took it apart.

Right now I am staring at about 15 little covers, pieces, etc. that look like they may be some part of the pedal assembly. The Haynes manual doesn't help too much with this. I am sure I will eventally puzzle it out. Jim



[RickB]

There is a pdf of a parts manual available, want me to email you a copy?
Wait, if you put your car in your signature it would be easier for people to assist. What model & year is your boxed Spridget?



[DrEntropy]

Or post some pix of the mystery bits and we can all chime in at recognizing what they are and where they go. A kind of 3-D virtual puzzle! :laugh:



[Jimflorida]

Thanks for the offer of the parts manual. i will pm you with my email address.

I could have a "Name that Part" contest! Have to figure out how to post pictures.
Jim



[DrEntropy]

One day I'm gonna get over your way and mebbe can help sort out some of that pile for ya. :wink:



[Billm]

Here is that manual- already on line:
https://www.spridgetguru.com/TchIndx17_files/AKD3514.pdf
BillM



[RickB]

Thanks Bill, I also answered the same thing in a PM so Jim should have it.



[Jimflorida]

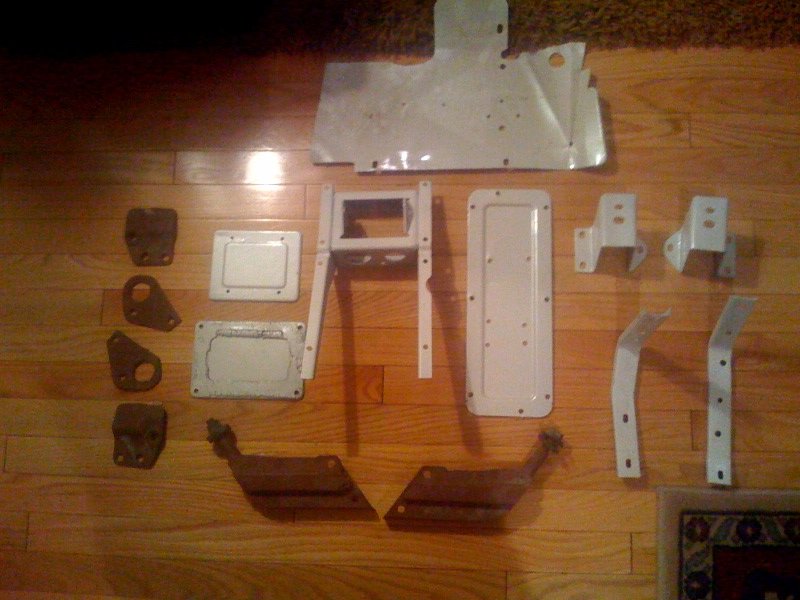

Can anyone identify these pieces? There is a good chance they may not be Bugeye parts, but they came with the Bugeye. The pedal box doesn't not look right to me--too big. But, I could be wrong.



[Billm]

Well- the motor mounts are correct for a Bugeye (and anything else) but the rest are all for later model cars (like '68 and later)
BillM



[Trevor Jessie]

On the left (top and bottom) are the latch plates for the bugeye. In between those are the toe eyelets. Top is a bent up 948 heat shield. At the bottom are bumper mounts for a later model car. Right lower corner are the splash panel brackets that span in between the inner fender and radiator uprights. Then there is a late model pedal box in the middle and a early model blanking cover for the rhd pedal box.



[Billm]

Trev
You took far too long analyzing those (even if you are correct)!
BillM



[Gerard]

On the left (top and bottom) are the latch plates for the bugeye. In between those are the toe eyelets. Top is a bent up 948 heat shield. At the bottom are bumper mounts for a later model car. Right lower corner are the splash panel brackets that span in between the inner fender and radiator uprights. Then there is a late model pedal box in the middle and a early model blanking cover for the rhd pedal box.

That's not a heat shield. It's a splashguard between the inner fender and radiator on a later car. Goes with the right side bracket. The two plates to the left of the pedals box are: 1 cover for the pedal box, 1 blanking cover for opposite side pedal box location.



[Trevor Jessie]

Ha! you're correct. They should issue magnifying glasses with smart phones.



[Jimflorida]

Thanks for your help guys. That's an odd selection of parts for a 1960 Bugeye. I did not think that pedal box was right. At least one or two of the parts are usable. i did not find a correct pedal box for the Bugeye in the catalogs. Anyone know of a source?
Jim



[Jimflorida]

I see that AHSpares has a pedal box for about $120.



[kalist]

Check ebay. The early pedal boxes show up there quite often.



[tomshobby]

Lesson #1: It is a heck of a lot easier to put something together if you are the one who took it apart.

Right now I am staring at about 15 little covers, pieces, etc. that look like they may be some part of the pedal assembly. The Haynes manual doesn't help too much with this. I am sure I will eventally puzzle it out. Jim

Good luck Jim,

I just saw this thread and can identify the parts. The reason is that I bought my 74 in boxes and had to do the same thing. I had only ever had Triumphs and had never seen a Midget in driving condition.

Thanks for reminding me where I was. It makes me feel better about where I am.



[tomshobby]

BTW Jim,

Check with Peter at World Wide Auto in Madison, WI for those hard to find parts.

https://www.nosimport.com/

He has a warehouse filled with hard to find parts. I know. I live only about 6 miles from there and bug him often and am very rarely disappointed.



[Sopwith_Camel]

yep I recogonise the bits from the mark 4 so early seventy is what you got there.

cheery
steve



[Jimflorida]

If anyone needs the later-model pedal box or splash guard, let me know. They're no good to me and my Bugeye. Jim
