TR2/3/3A Oil Pressure low all of a sudden

[HighAltitudeTR3]

My oil pressure gauge is reading very low all of a sudden. I recently replaced the rod bearings. I noticed the change when I had a mechanic come by and try and set my carbs. We were revving the Roma quite a bit and didn't notice it until about 1/2 done with the carbs. It will climb to about 50 at 2600 RPM, but at 750 RPM it drops to maybe 10!? Where should I start??



[poolboy]

Does the motor oil on the dip stick smell like gasoline ?



[M_Pied_Lourd]

Did you do anything with the distributor ?

Cheers
Tush



[HighAltitudeTR3]

Motor oil does not smell.

I did move the distributor one tooth as it was off. I was finally able to set the timing correctly.



[HighAltitudeTR3]

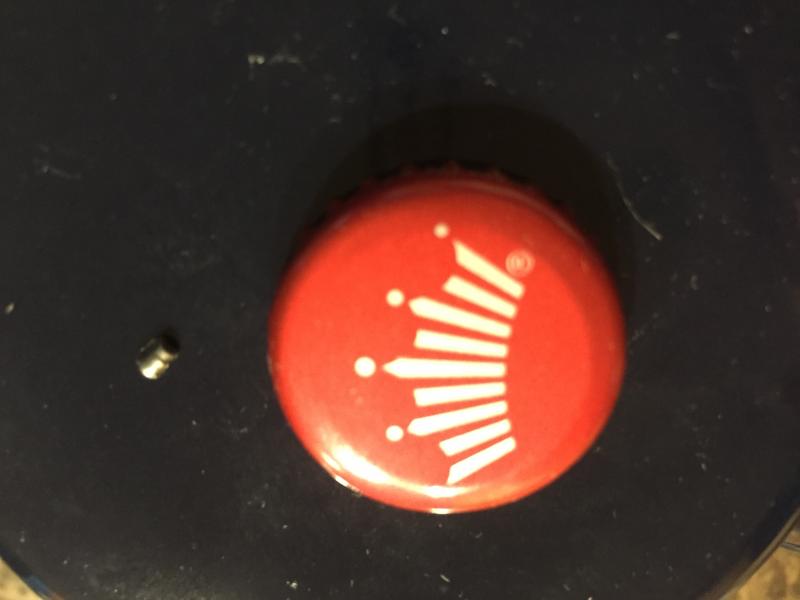

Well I fixed it. But take a look at the can of worms I opened. I found this little piece of aluminum (non magnetic) in the Pressure Relief Valve.



[HighAltitudeTR3]

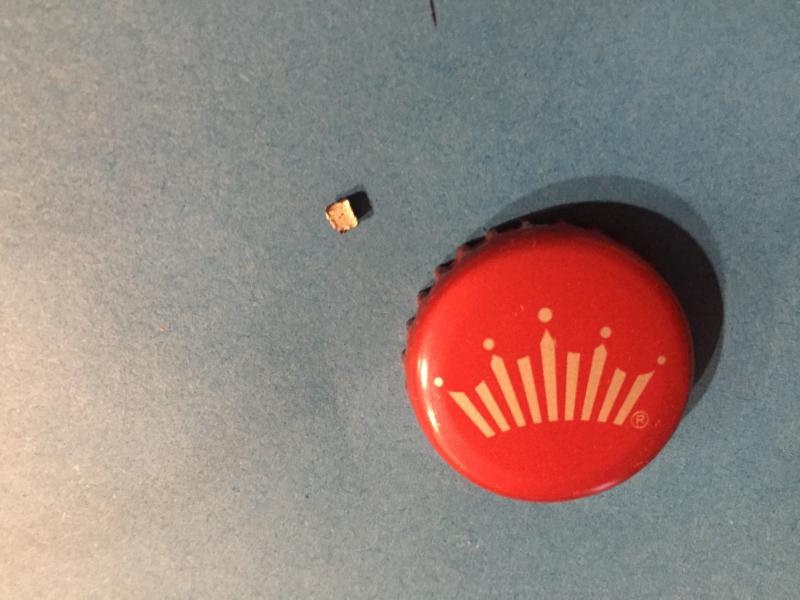

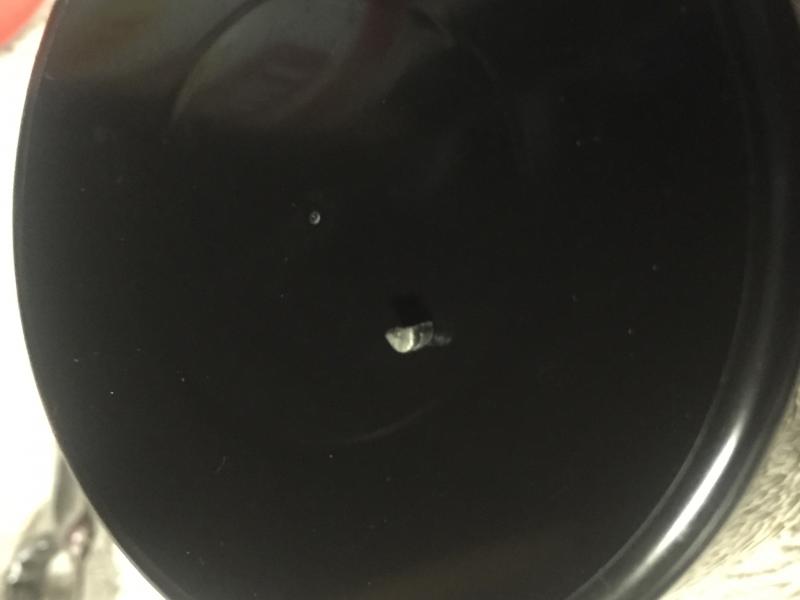

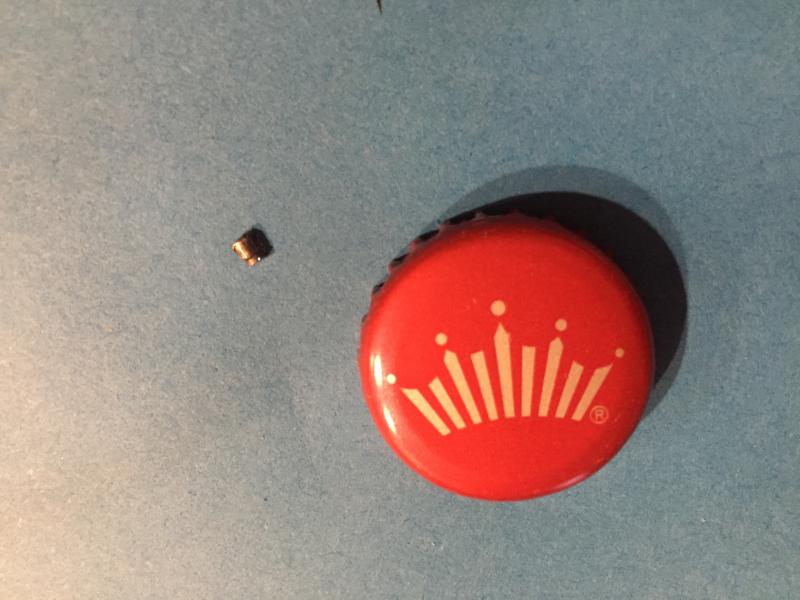

It's hard to take a picture of this little guy. This is the best I could come up with.



[titanic]

A plug from the end of the rocker shaft?
Berry



[Geo Hahn]

It does look like half of something.

Like taking a bite from an apple and finding half a worm inside.

I do not recognize it.



[HighAltitudeTR3]

It's a little small for a plug from rocker shaft. It's the size of the top of a pen, maybe a tad bigger.



[TR4nut]

Whatever it is it looks too big to pass through the oil pickup, let alone the oil pump itself.



[HighAltitudeTR3]

I'm thinking it's something from the distributor. What could it be?! Is there more? Luckily it's aluminum and soft.
