Ok I have a customer that brought his spit6 in to get some work done. One thing he wants is the heater hooked up. The back of the GT6 manifold has a Y shaped adaptor that the heater valve screws into. My plan was to remove that valve and put a nipple in to run to the stock spitfire heater valve but where do I run the heater return line to? Anyone have a picture or good description as to how the stock GT6 heater hoses run?



[DNK]

Does the GT6 use the same setup as the big 6 with the return going thru the manifold?



[trrdster2000]

You will need a tube that runs under the manifold, that would be your return. It goes into the water pump housing. You should have a plug in the bottom portion of the housing. I'll look to see if I have one, it's a little longer than the TR3=4 one. VB has a good picture of it in their on line catalog.

Wayne

PS You can make it out of copper. Just a compression fitting at the pump housing.



[DNK]

Wayne, your to quick with that delete button. Had a snide remark all typed and ready to enter.



[3798j]

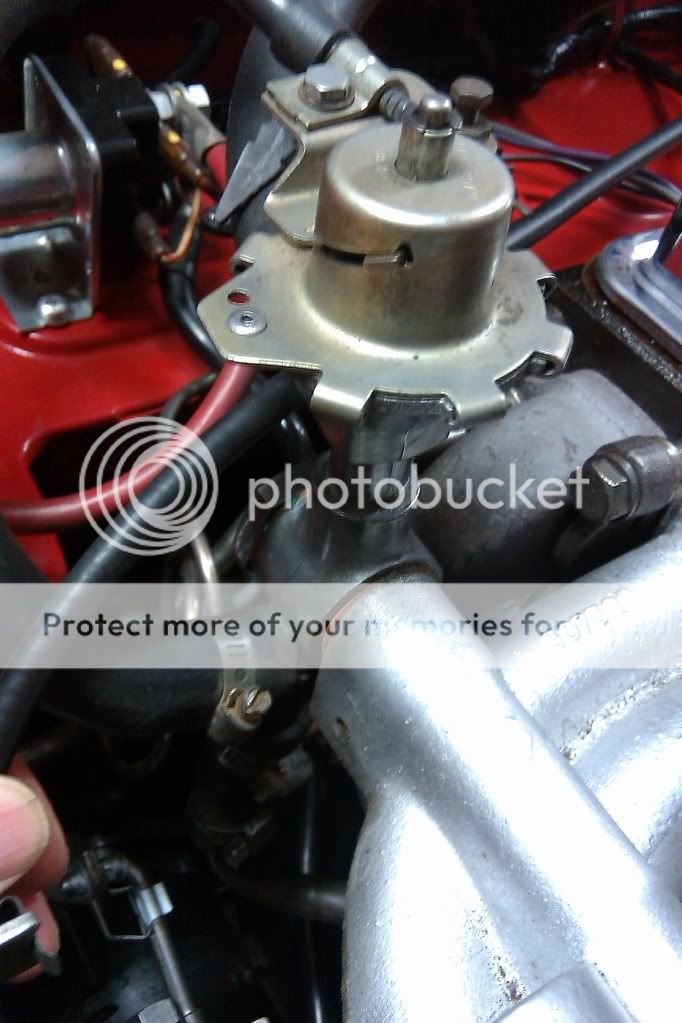

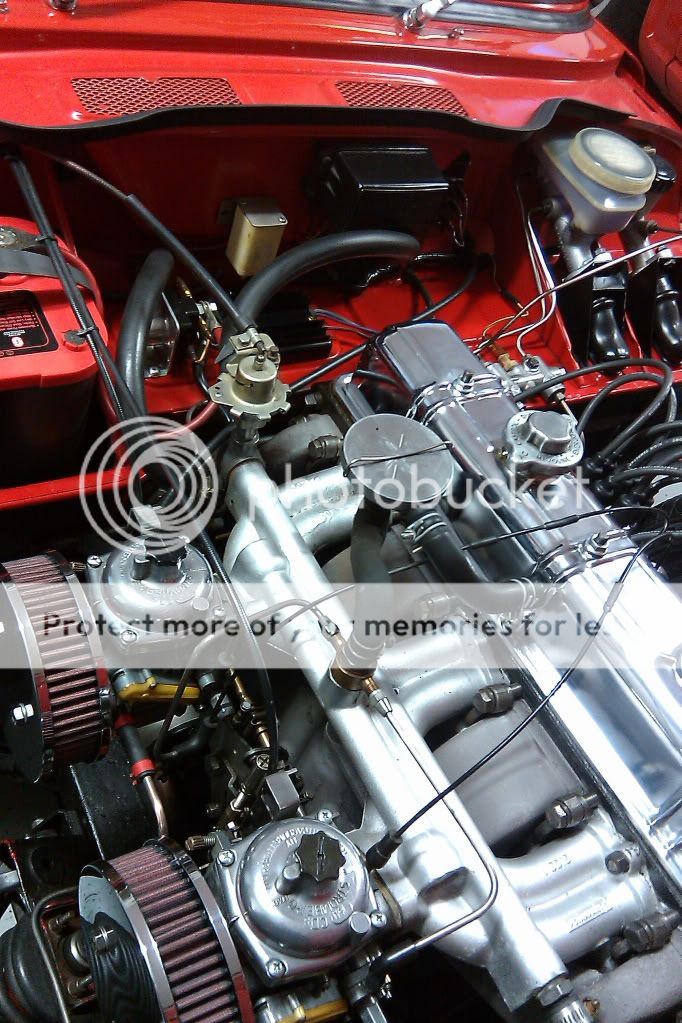

These two photos may help.



[DNK]

So it ain't like the big 6's return line.



[BRSLimited]

These two photos may help.

That is exactly what I needed to see. I couldn't figure out if the return went into that other little branch or not. Thank you.
