front shocks 100 m

[dh100m]

can any tell me if front shock on 100 m were ever painted dark pink color as i have owned this car since
1970 and they came with the car any info greatly appreciated
regards dh100m



[bighealeysource]

Hey DH100M,
I don't know for sure but seriously doubt they came from UK that way. Someone must have painted them that way for who knows what reason. Everything with the suspension should have been black.
Regards
Mike



[mk31755]

they should be Armstrong 6075 shocks and they should be black. By 1970 the car was 14 years old and who knows what was done. There were no "standards" set by a committee and few people kept track of such things back then. A car was just transportation not a collector item.



[dh100m]

they should be Armstrong 6075 shocks and they should be black. By 1970 the car was 14 years old and who knows what was done. There were no "standards" set by a committee and few people kept track of such things back then. A car was just transportation not a collector item.

thanks for help #s are correct on bottom 6075 guess the get painted
dh100m



[Editor_Reid]

can any tell me if front shock on 100 m were ever painted dark pink color as i have owned this car since
1970 and they came with the car any info greatly appreciated

Just for grins I'd call Apple Hydraulics (800.882.7753) and ask them if they know anything about it. It's extremely unlikely that it means anything "interesting" such as a competition version or that they were used on a Ferrari team car in the Mille Miglia, but who would have painted them pink in the 1955ish-1970 time frame? Oh sure, crazy things happened and owners committed all manners of atrocity, but a quick phone call is free.



[HealeyRick]

There have been a couple of theories about the coppery-pink (which I assume is what you're referring to as "pink") shocks ... that they identify "competition" shocks or they are rebuilt units:

The lower shock in these Elan adjustables are what I think the color you've mentioned:

From Peter Caldwell of Worldwide Imports:

"
Paint:
Beginning in 1968, Armstrong "rationalised" their part numbers for cataloging and packaging and labeling. They essentially whittled the range of all shocks (tube, struts, and levers) into 4 groups.
Painted as follows:

"All units above AT9 and Super 64 size - Black
All AT9 and Super 64 size - Bronze
All Roadholder Struts - Bronze
All others - Blue"

This is from a publication "4E 1st February 1968 Product Information"

The RX casting is a bit of mystery, but we have noted that there is a change in the valve threaded port in so far as the seal and washer arrangement is concerned. RX shows on all of the lever product castings, and by assessing the date codes, seems to have been started around 1964 or so.

There's a myth that floats around every few years that the RX means rebuilt, but it's real hard to retroactively cast letters into a body. Also, you'll find some models of lever shocks in Bronze. It is indicative of piston size and applies to the tube shocks as well.

The natural body and painted (Parkerized?) arms would seem to be the way the shocks were delivered to the assembly plants. Often rears were then fully painted over "on the line", but that's conjecture from some assembly line photos, and may not be consistent.
All good stuff.

Peter C "

And from Rich Chrysler:

"Over the years I've observed a lot of copper coloured shocks on big Healeys
and other BMC cars of the '50's and ;60's. I have never been able to prove
these to have been installed originally, but have often wondered as to their
identity or meaning. Some folks have a theory that they may have been part of
the BMC "Gold Seal Factory Replacement" scheme of the period. However, I've
seen Gold Seal remanufactured items and they were painted gold, not copper.

Recently I was talking to a friend who was born and raised in the town of
Abingdon, in the U.K. and in his early driving years often visited the
Abingdon Competitions Department on Saturday mornings where one could purchase
factory approved items right there over the counter. He tells me that the
copper painted Armstrong shocks indicated they were revalved and were
considered a heavier duty shock for competition work, and he'd bought a set to
upgrade his '65 MG Midget. A chum of his bought some to upgrade his '68
MGB/GT, and so on.

Why I'm asking this now is that I'm currently doing a restoration on a
relatively low mileage '54 BN1 that's been off the road for over 40 years. It
has a virtually fresh full set of copper painted shocks, and I'd hate to be
changing this out if it's a legitimate part of the car.

Has anybody else any experience or comments about this? (Yes, I know what it
says in the Concours Guidelines.)

Rich Chrysler"


I think it's one of those unsolved mysteries.



[dh100m]

yes they are like the bottom ones so mine are not an anomaly will do more research maybe try some in historic racing club
in uk many thanks tony



[HealeyRick]

I read somewhere from Peter Caldwell (who is probably the world authority on Armstrong shocks) that Armstrong shocks are date coded. If so, that might tell you if they are original to the car. You can contact him at https://www.nosimport.com/



[Jeepster]

You will probably find that the pink colour is a version of red oxide primer that seemed to get painted over everything years back.

I think I heard somewhere that elan chassis were given a coat of red oxide from new. ( thats why they all rotted out)



[HealeyRick]

You will probably find that the pink colour is a version of red oxide primer that seemed to get painted over everything years back.

I think I heard somewhere that elan chassis were given a coat of red oxide from new. ( thats why they all rotted out)

The copper/bronze/pink color is pretty unique to Armstrong shocks and not like red oxide primer at all. I have an Armstrong adjustable rear shock on the back of my bugeye/frogeye that came from AH Spares in that color back in the 80s.



[homebeforedark]

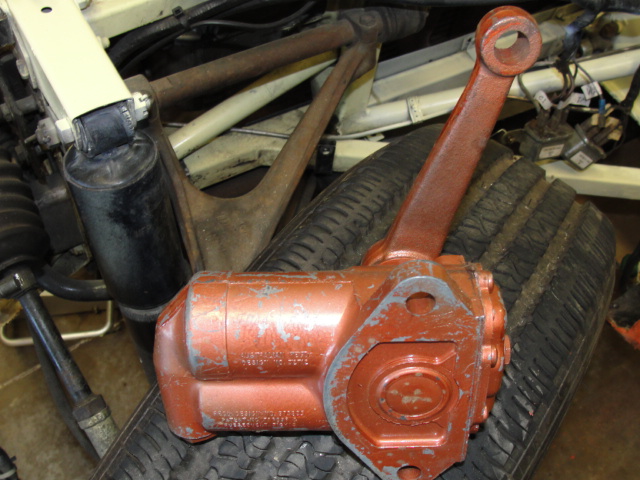

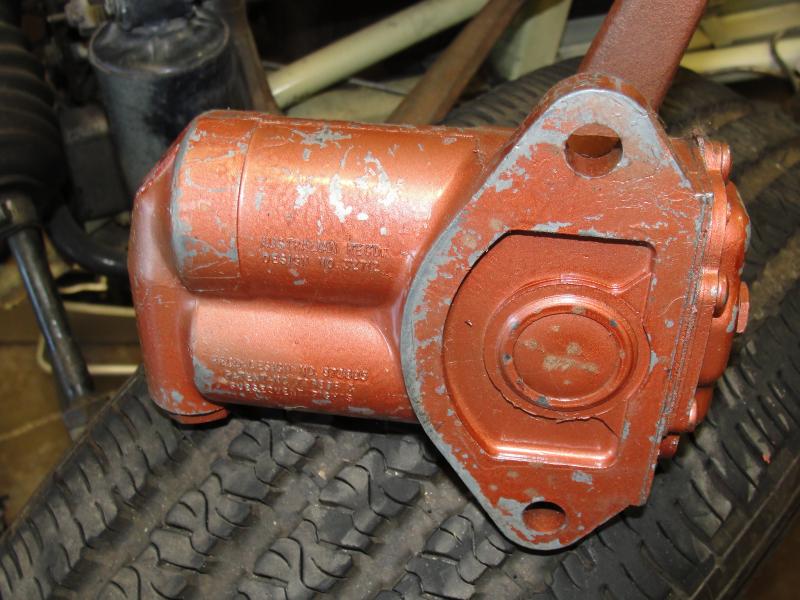

I've sold British parts since 1976. IIRC, new Armstrong dampers started coming in the orange/bronze color sometime in the early 1980's. Before that time they were almost always bare aluminum with painted arms. The image is a late MGB rear damper and a date code of 1985.
n



[HealeyRick]

How does the date code work?



[homebeforedark]

I can't remember if all date codes are the same but the MGB rear damper above the code is '4185' which means it was manufactured the 41st week of 1985. Lucas started using the same coding about the same time.
