Brackets to hold top frame on a BE

[Jim_Gruber]

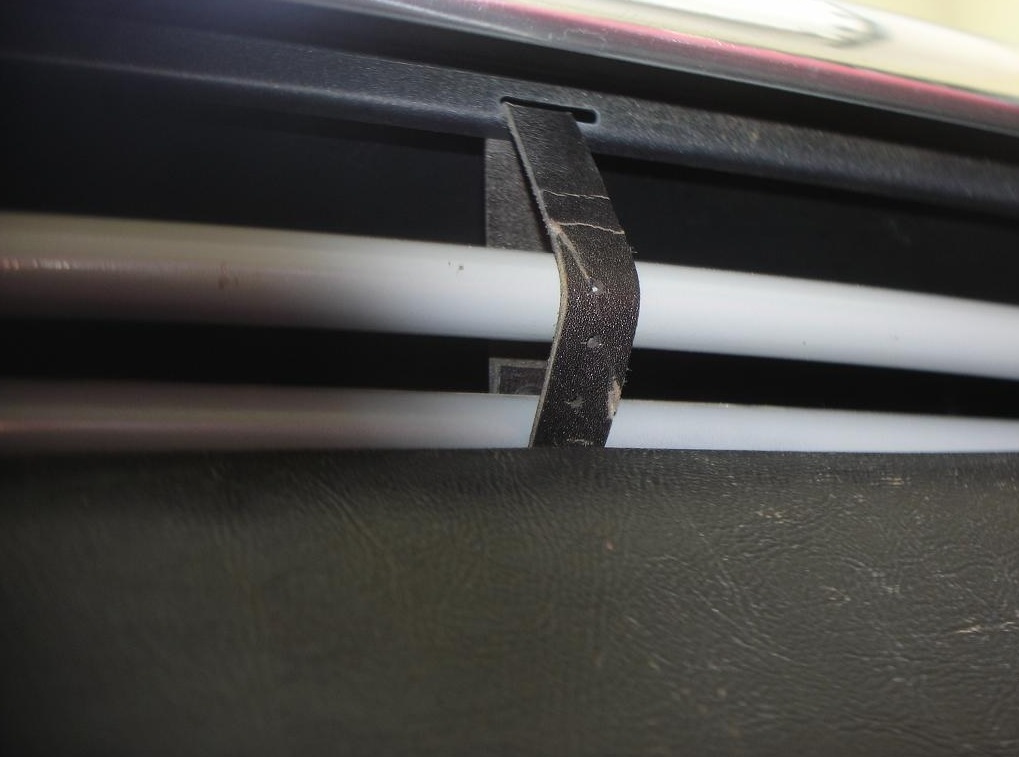

I had metal repairs done to both sides of the bulkhead on Bugsy II with new metal welded in back there. Isn't there supposed to be a bracket / open pipe of some type back there that the top frame slides into. I think it gets secured somehow on top with a leather strap.

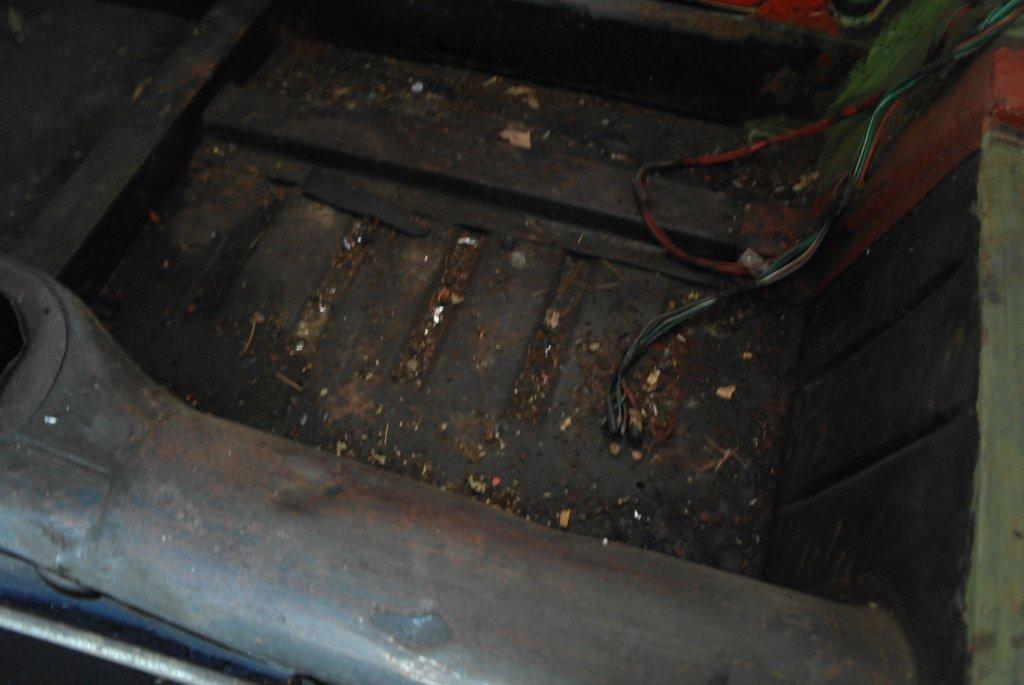

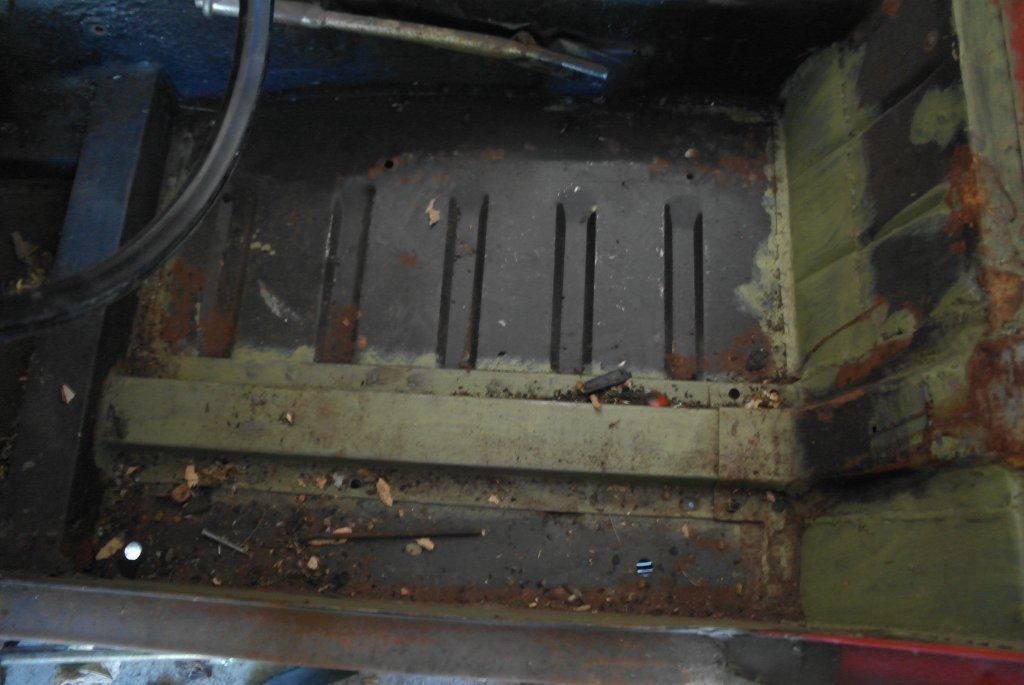

Can someone provide me with pics on what this us supposed to look like and dimensions/ location if possible so I can weld something in back there that is a close facsimile to original. Here's what I've got on both sides after the repair.



[Trevor Jessie]

They are just little sheet metal boxes with a hole in the top. Also some rubber bumpers to keep them from rattling. Seems like someone posted a pattern once.



[longbridgehealey]

Hi, If nobody posts a pic of the little boxes by tomorrow, I'll be able to take one and post it.

larry



[Jim_Gruber]

Thanks guys. I can't remember what these look like. A pattern would be sweet.



[Rut]

Jim, no 15 in this picture is the storage bracket for the top frame when down. The actual top brackets are located just behind the door catches on the inside of the b pillar.
Rut
https://www.mossmotors.com/Shop/ViewProducts.aspx?PlateIndexID=29365



[Jim_Gruber]

Thanks Rut.



[apbos]

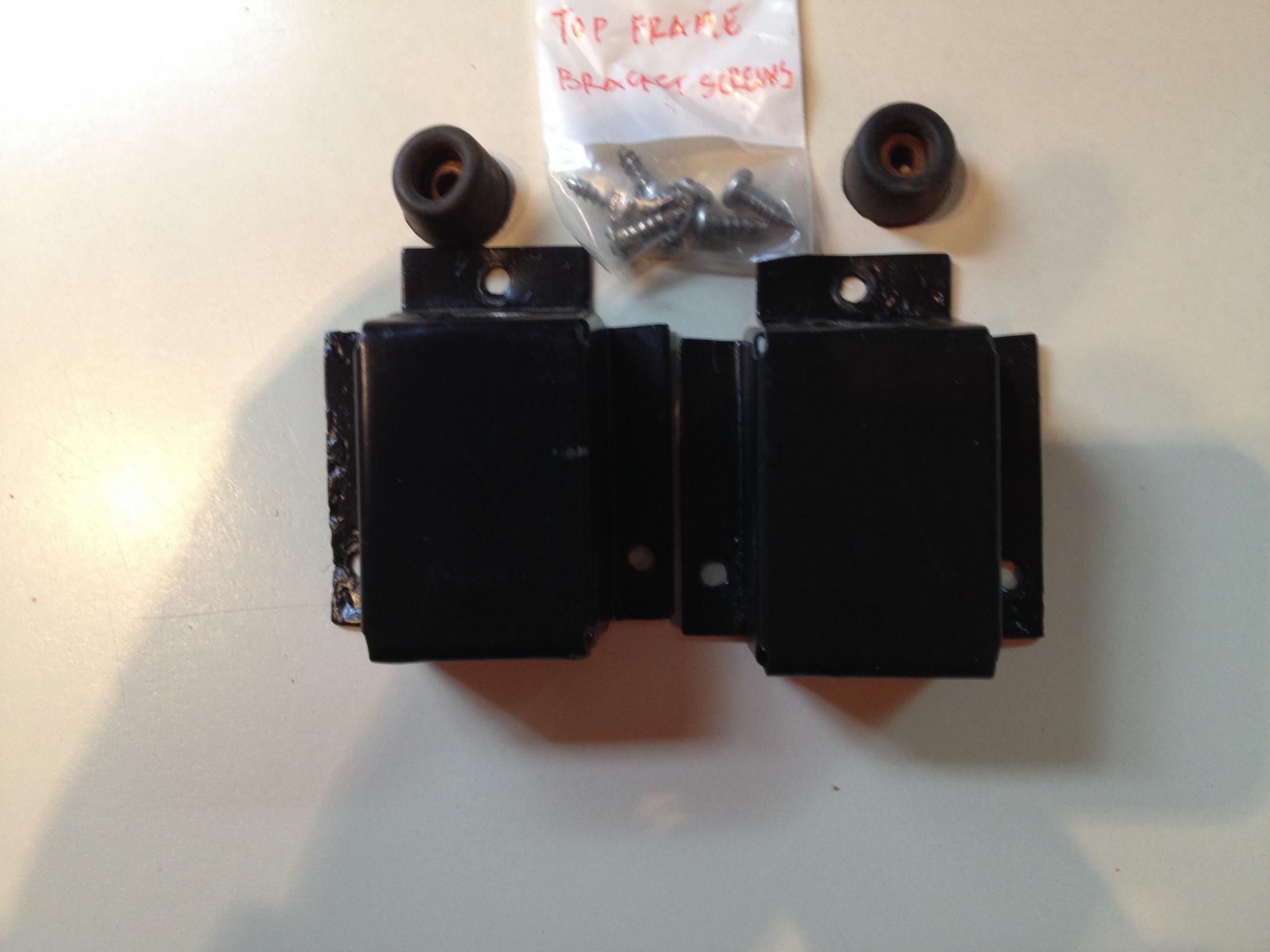

Hope this helps. I still need to paint them.
Paul



[Jim_Gruber]

Thanks Paul,

It's either fabricate or spend $20.05 each. Anyone got a drawing?



[Rut]

Jim,
I may have an old one at home and will send it to you next week. Mine were in bad shape, but they may be useful for a pattern.
Rut



[Jim_Gruber]

Thanks Rut. Let me know, I won't be ready for that for a while.



[Whitephrog]

I have a couple of serviceable spares.



[Jim_Gruber]

Ray,

how much do you want for them? PM me and we can make a deal.



[Whitephrog]



[Jim_Gruber]

Ray

thanks for the pics but I don't think I have that bar running across under the back deck. I believe the entire rear clip was replaced at some time in the past prior to ownership by the P.O. Perhaps that wasn't replaced. If not I'm sure I could tack something in place to support a strap. I need to look tomorrow and take some pics of my spelunking in the boot. Thanks again.



[Whitephrog]

JIm

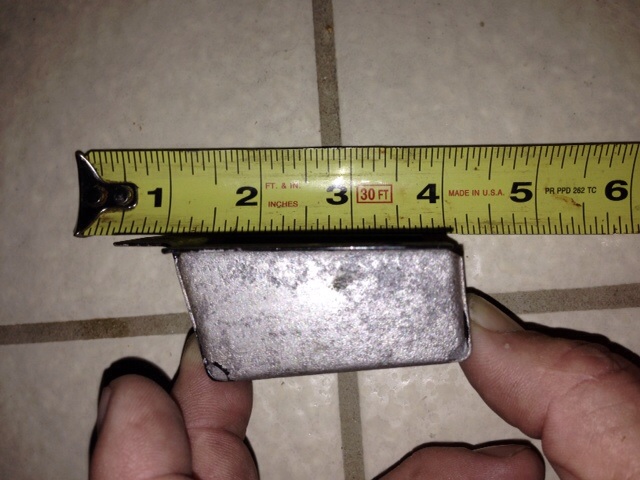

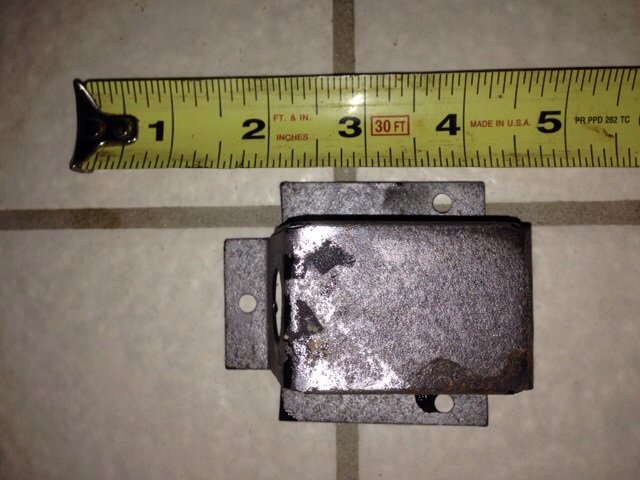

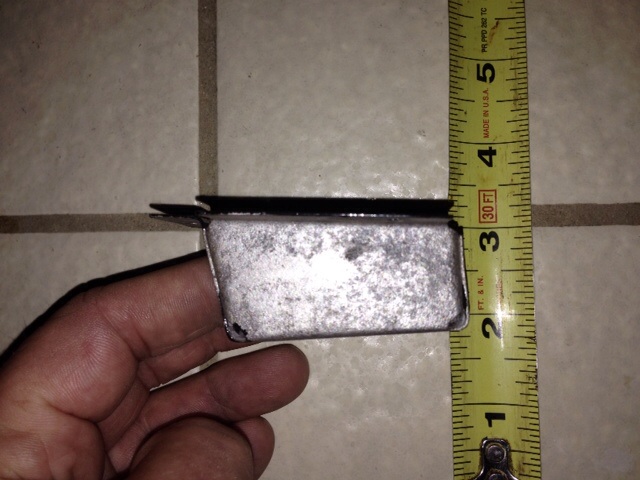

I found two sets. This one is complete with bumpers and screws.



[Jim_Gruber]

Ray,

i want them. I sent you a PM wth address. Let me know how much and I'll put a check in the mail.



[Rut]

Jim, I found an extra bracket if you have additional needs.
Rut



[Jim_Gruber]

Ray,

Got the brackets this PM in the mailbox when I got home. I'll PM you. Great parts. Thanks for such great service.



[Jim_Gruber]

Thanks to Ray Evans Bugsy II now has another ex-WhiteFrog part I will be using. Thanks again Ray. Looking for dimensions and distances to correctly mount the top frame brackets. Can anyone provide a mounting picture with dimensions. Thanks.



[paulsherman]

There are a set of these brackets for sale on Seattle Craig's List for $15
