Brackets, where do they go?

Rob Glasgow

Jedi Knight
Country flag
Offline

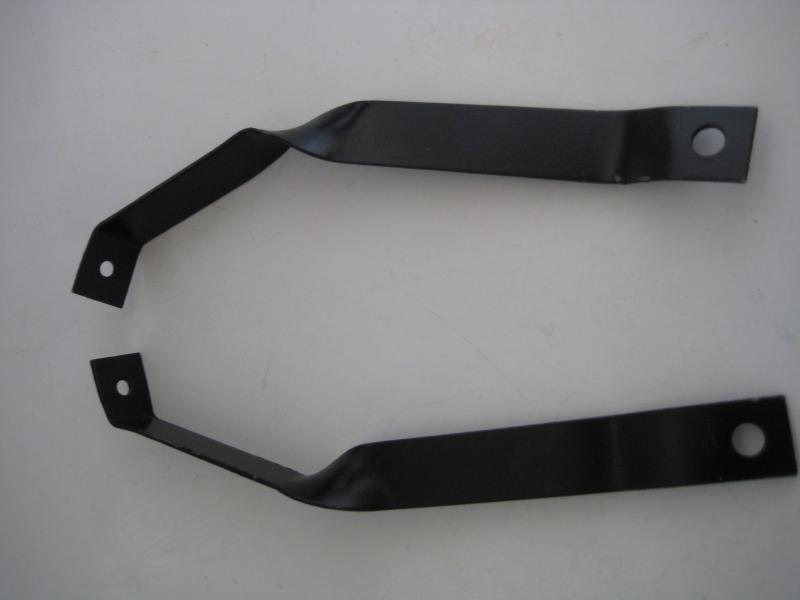

I believe these two brackets go on the air deflectors that mount on the sides of the radiator, but for the life of me, I can't remember where they mount. Of course none of the photos i took during disassembly show them. Can you help?


Attachments

  • IMG_0280.jpg
    21.2 KB · Views: 39

Healey Nut

Luke Skywalker
Country flag
Offline
Nope they are the support brakets for the front inner splash sheilds


healeyblue

Jedi Warrior
Gold
Country flag
Offline

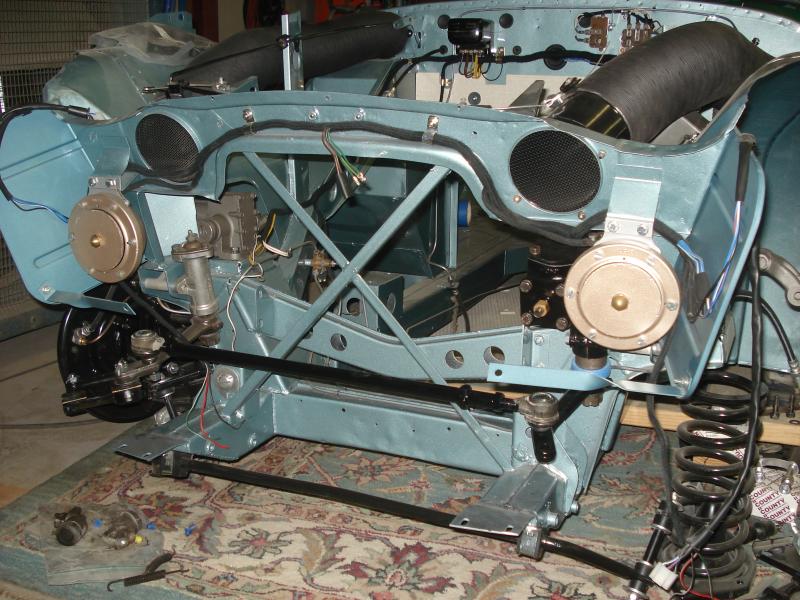

Yes, in this photo you can see them. They mount to the grill opening and the splash shields.


Attachments

  • 2012-05-09 005.jpg
    2012-05-09 005.jpg
    95.7 KB · Views: 71
OP
Rob Glasgow

Rob Glasgow

Jedi Knight
Country flag
Offline
That's it. I haven't installed the inner splash shields yet so I wasn't even thinking of those. Thanks for the help.
