TR6 TR5/6 Engine Mount/Chassis Brackets Assistance Please.

Share this page

M

malbaby

Jedi Warrior
Country flag
Offline
Planning install of 6cyl TR engine into my TR4A project car and require the brackets that are welded onto the chassis.

OR....accurate dimensions to make my own.

Gliderman8

Gliderman8

Great Pumpkin
Country flag
Offline
malbaby said:
Planning install of 6cyl TR engine into my TR4A project car and require the brackets that are welded onto the chassis.

OR....accurate dimensions to make my own.
Click to expand...
Will see if I can get some dimensions for you tomorrow.

Gliderman8

Gliderman8

Great Pumpkin
Country flag
Offline
Malbaby.... here's the dimensions that I came up with in order to make the TR6 brackets. If I missed anything or something does not look right just let me know and I'll get/verify a measurement.
I did not get any dimensions for the hole size/placement. I would use the rubber motor mount that attaches to the engine as a template to place the holes.
Hope this helps...

EDIT..... I reposted the drawing since a dimension was left off but is now updated

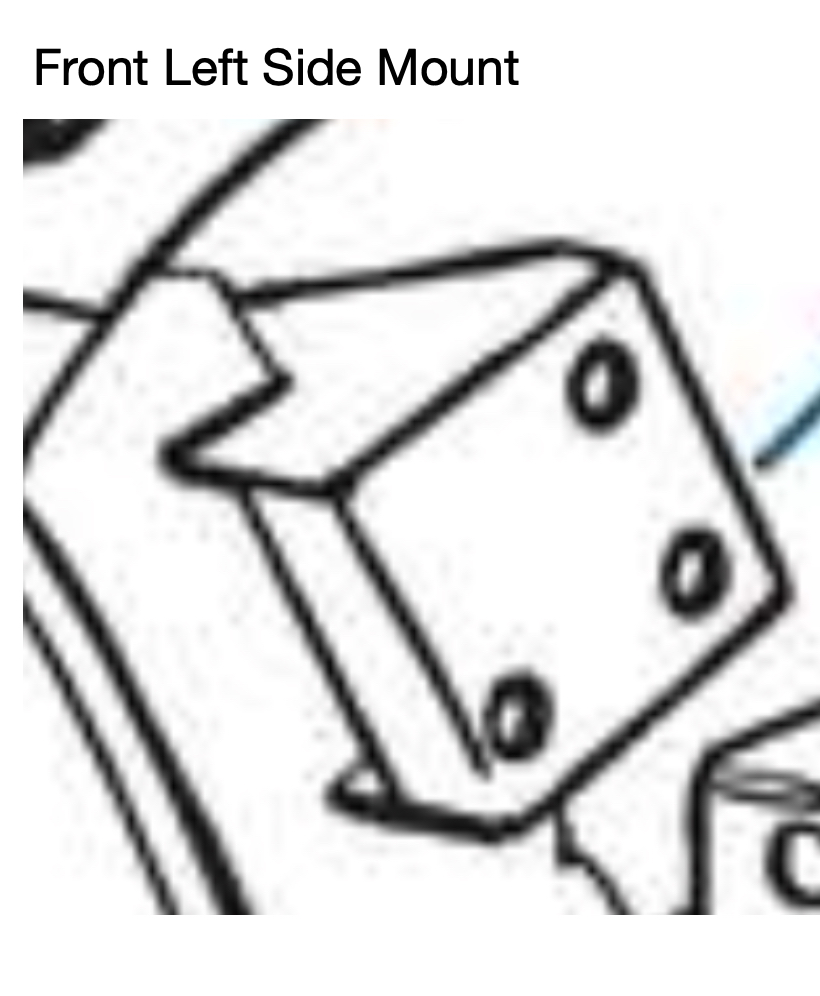

Finished Mount
TR6 Motor Mount 1.jpg

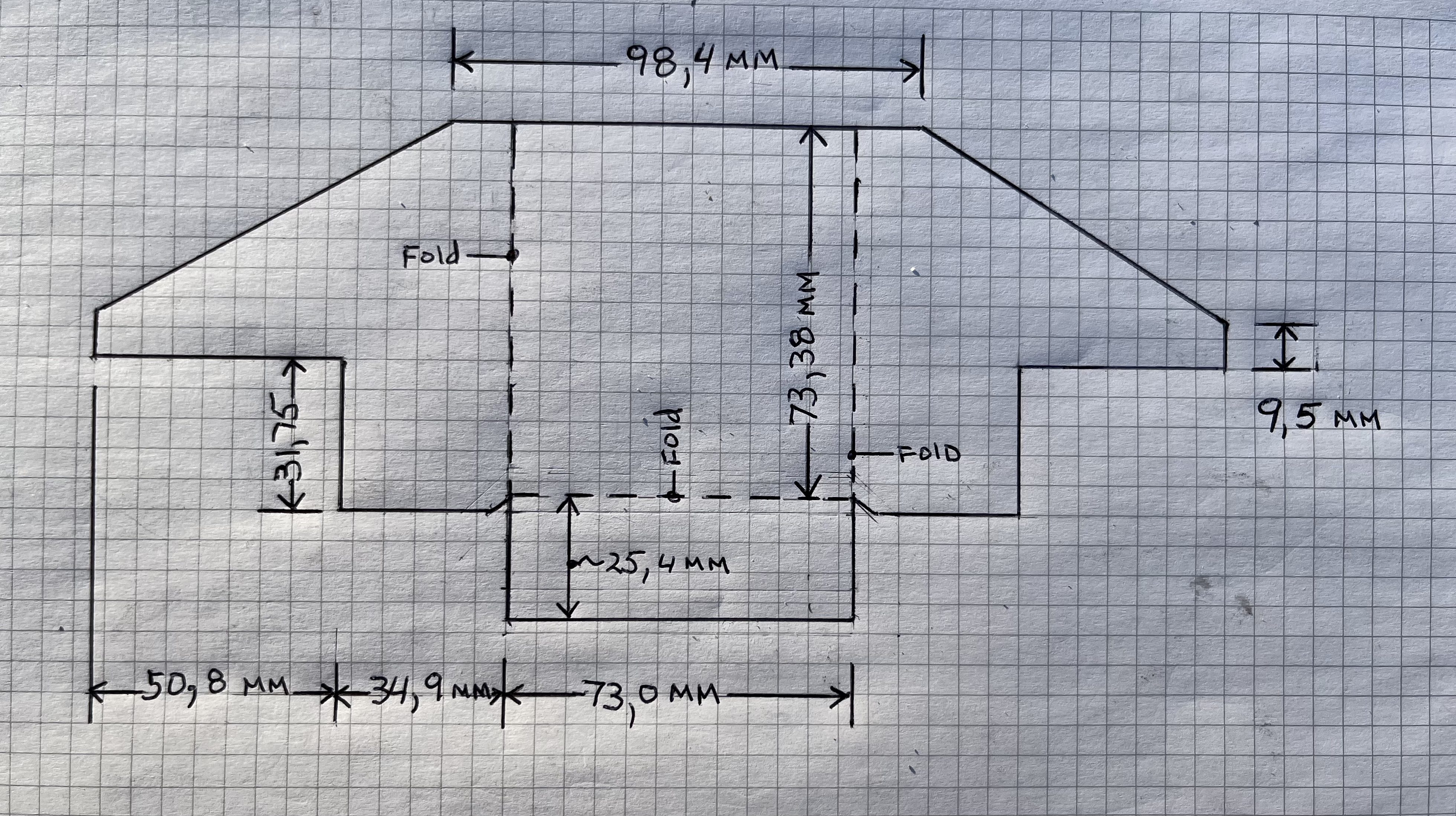

Drawing detail
TR6 Motor Mount.jpg

Last edited:
