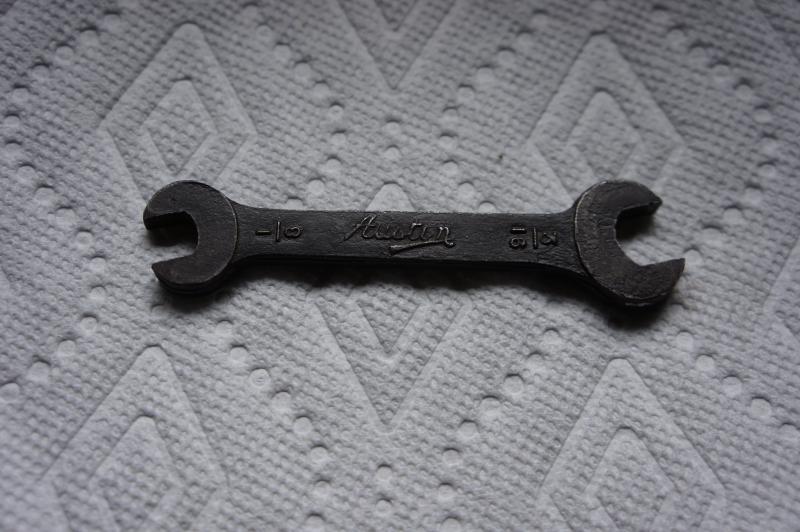

What's with this wrench ?
- Thread starter histerical
- Start date
Share this page
dklawson
Yoda
Offline
It is Whitworth. The distance across the flats is not stamped on the Whitworth wrench, the diameter of the fastener is.
See the table linked below. 1/8W = 0.340 Across Flats, 3/16W = 0.445 Across Flats
https://www.samstagsales.com/whitworth_table.htm
See the table linked below. 1/8W = 0.340 Across Flats, 3/16W = 0.445 Across Flats
https://www.samstagsales.com/whitworth_table.htm
OP
histerical
Jedi Hopeful
Offline
Thanks. This actually makes all too much sense. You have a 1/4" bolt, you use a 1/4" wrench.
