WIRING HARNESS CONNECTOR PLACEMENT

[neils]

I have a new jules frame and am about to install a new wiring harness As the new frame does not have the holes drilled for the harness clips does anyone have photos showing the harness routing and clip location I have a BJ8 with over crive Thanks /ubbthreads/images/graemlins/nopity.gif



[Keoke]

HI Neils, I don't know why others with this same problem have not responded to your query. However, it came up just recently on this forum and some information may be in the archives. Fwiw ---Keoke



[Richard Dickinson]

I have some photos of the main harness before I striped it from my BT7. In retrospect, I should have used better lighting and I am assuming that the BJ8 is simular. Considering the beating these things get, I wonder if anyone hase considered a more protected location



[Richard Dickinson]

Sorry, my photo file was to large to send, I will revise and re send



[Richard Dickinson]

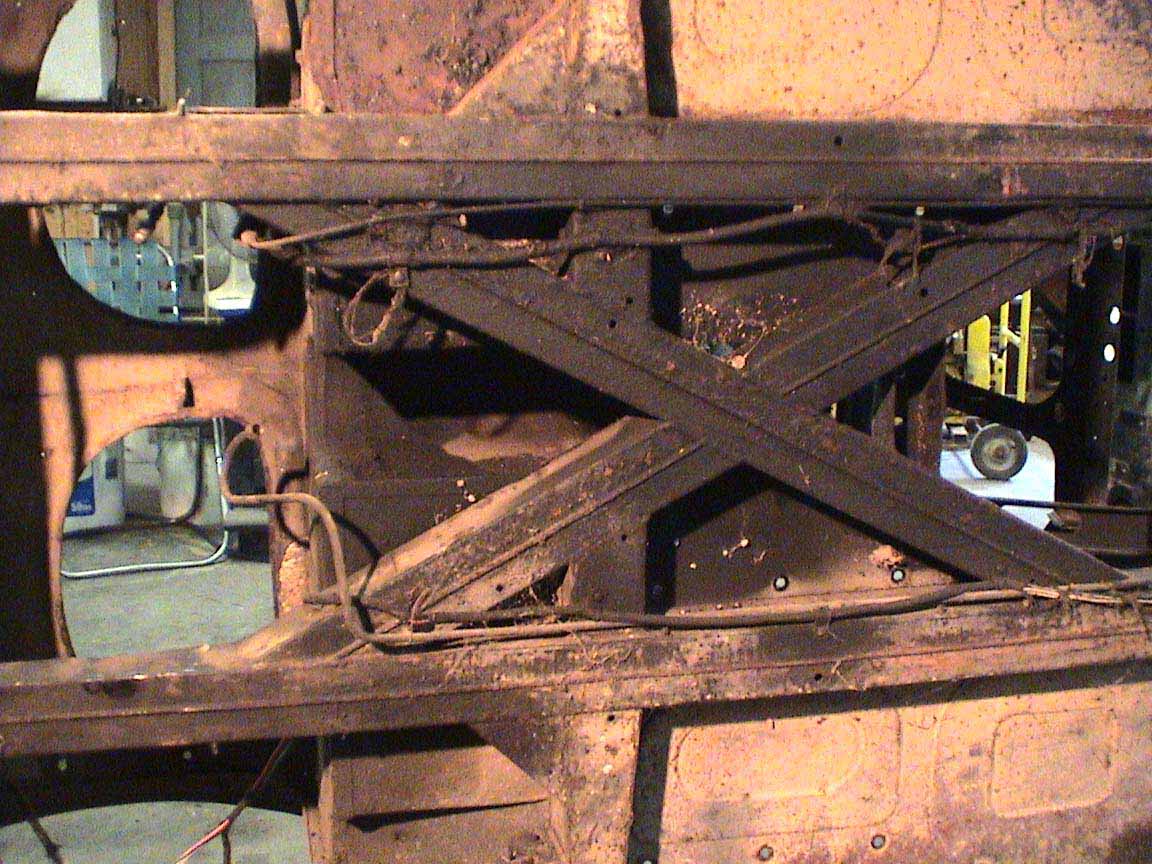

Rear section



[Richard Dickinson]

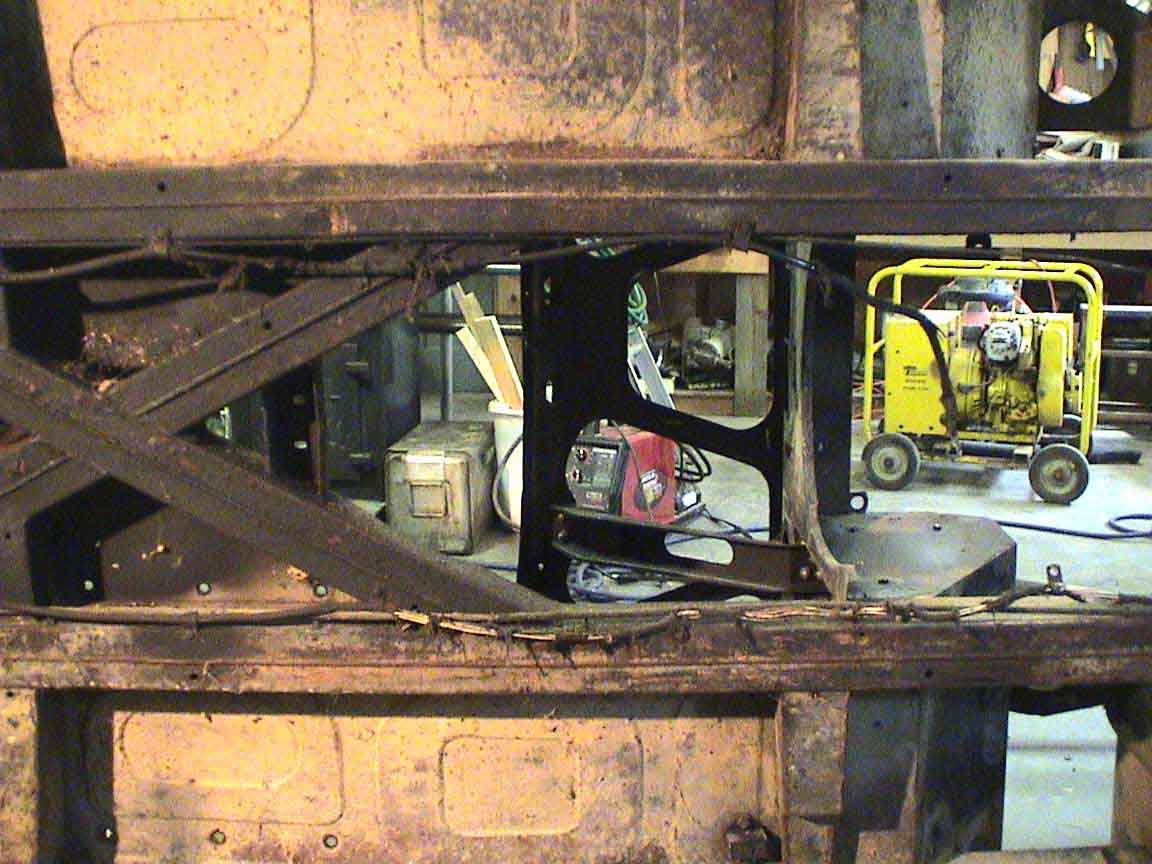

Forward section



[Keoke]

Hi Neils, If you need a more permanent data file Norman Knock of British Car Specialties sells a complete set of photos showing the location of the Harness and it's clips.--Fwiw---Keoke



[neils]

Thanks for your responses. I am in the same position as Richard, having not taken enough detailed photos with good enough lighting as I stripped the car down - I thought I had enough with over 100, but when you get to the fine details there is always something not properly visible or in enough detail.
