dklawson said:
The easiest way would be to run a wire from the clock to the "always hot" side of the cutoff switch.

On the Mini I have a battery cable disconnect. I have a 5 Amp fuse wired in parallel to the disconnect. That allows me to keep the low current items running with the battery "disconnected". However, if someone were to try and start the car with the battery disconnected, the 5 Amp fuse would blow. So... I still have an anti-theft disconnect while the accessories can still be powered up.
Click to expand...

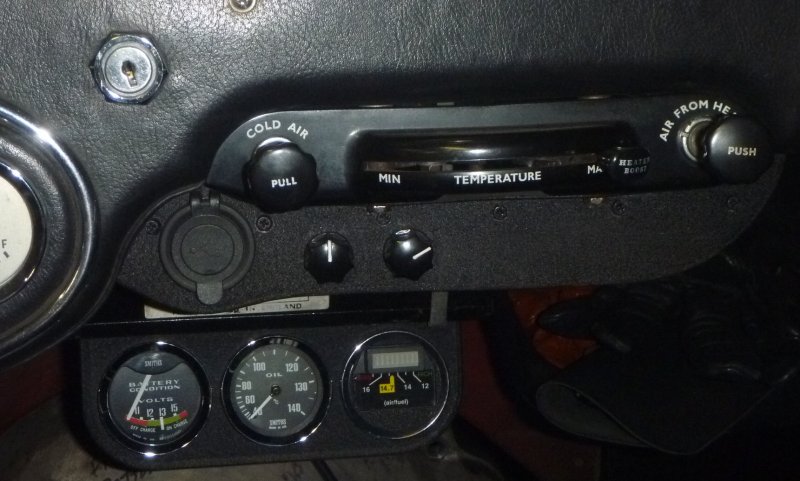

For clarification: could I have a wire coming from the Gauge to the positive terminal of the battery and a light gauge wire with fuse to the ground? The gauge has a wire to ground already. Car is Negative ground.
thanks

John Turney

John Turney

Yoda
Silver
Country flag
Offline
Patrick67BJ8 said:
For clarification: could I have a wire coming from the Gauge to the positive terminal of the battery and a light gauge wire with fuse to the ground? The gauge has a wire to ground already. Car is Negative ground.
thanks
Click to expand...

No, you should have the fuse in the positive wire to the gauge, and it should be near the battery. That way, if the positive wire shorts out on the way to the gauge, the fuse will blow instead of the wire burning up.

OP
Patrick67BJ8

Patrick67BJ8

Obi Wan
Silver
Country flag
Offline
John Turney said:
No, you should have the fuse in the positive wire to the gauge, and it should be near the battery. That way, if the positive wire shorts out on the way to the gauge, the fuse will blow instead of the wire burning up.
Click to expand...
Okay, no problem since I was considering doing that. What about the negative wire...install a small gauge wire from the Neg on battery to the Ground by the cut-off switch?

Keoke

Keoke

Great Pumpkin
Country flag
Offline
Patrick:
What size fuse do you plan on using to protect the Meter??

DK's solution as stated is good.

OP
Patrick67BJ8

Patrick67BJ8

Obi Wan
Silver
Country flag
Offline
Keoke said:
Patrick:
What size fuse do you plan on using to protect the Meter??

DK's solution as stated is good.
Click to expand...
I tried a 5 Amp and it worked. I tested it by turning off the battery and noted clock still working then I turned on the headlights and the fuse blew, which it should have.
