How to connect a horn relay

Share this page

R

Ray7Smith

Senior Member
Offline
I need some guidance on how to hook two horns to a horn relay. I just purchased a set of hornes and they came with a relay.The relay has five male prongs. The harness used to connect the horns has two wires, one is brown and black the other is brown and green. The hornes each have two male prongs. I can't figgure out how they are connected. Can someone give instructions.

Is it necessary to use the relay?

Ray

Dave Russell

Dave Russell

Yoda - R.I.P
Gold
Offline

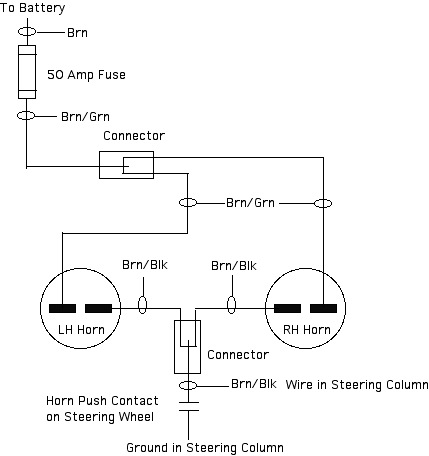

You don't really need the horn relay. Just connect the new horns as in this sketch of the original wiring.
D


Attachments

  • 9797.jpg
    30.2 KB · Views: 90
