horn relay wiring

Share this page

Sopwith_Camel

Sopwith_Camel

Jedi Warrior
Country flag
Offline

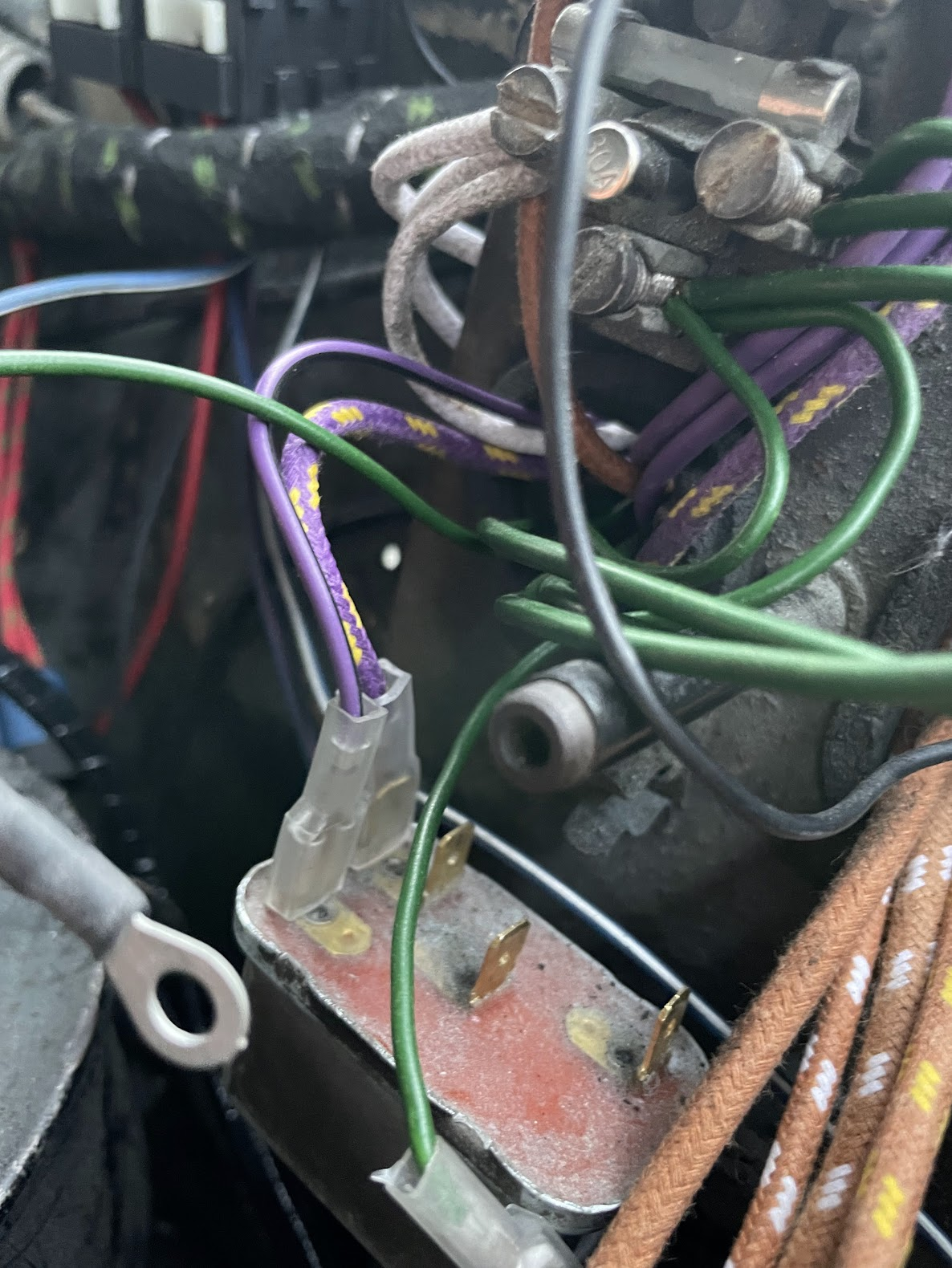

ok how do i wire the horn relay ? putting in a new harness.
and where dose the Green with the Eye loop go.


OP
Sopwith_Camel

Sopwith_Camel

Jedi Warrior
Country flag
Offline
more mystery wires on the new harness.

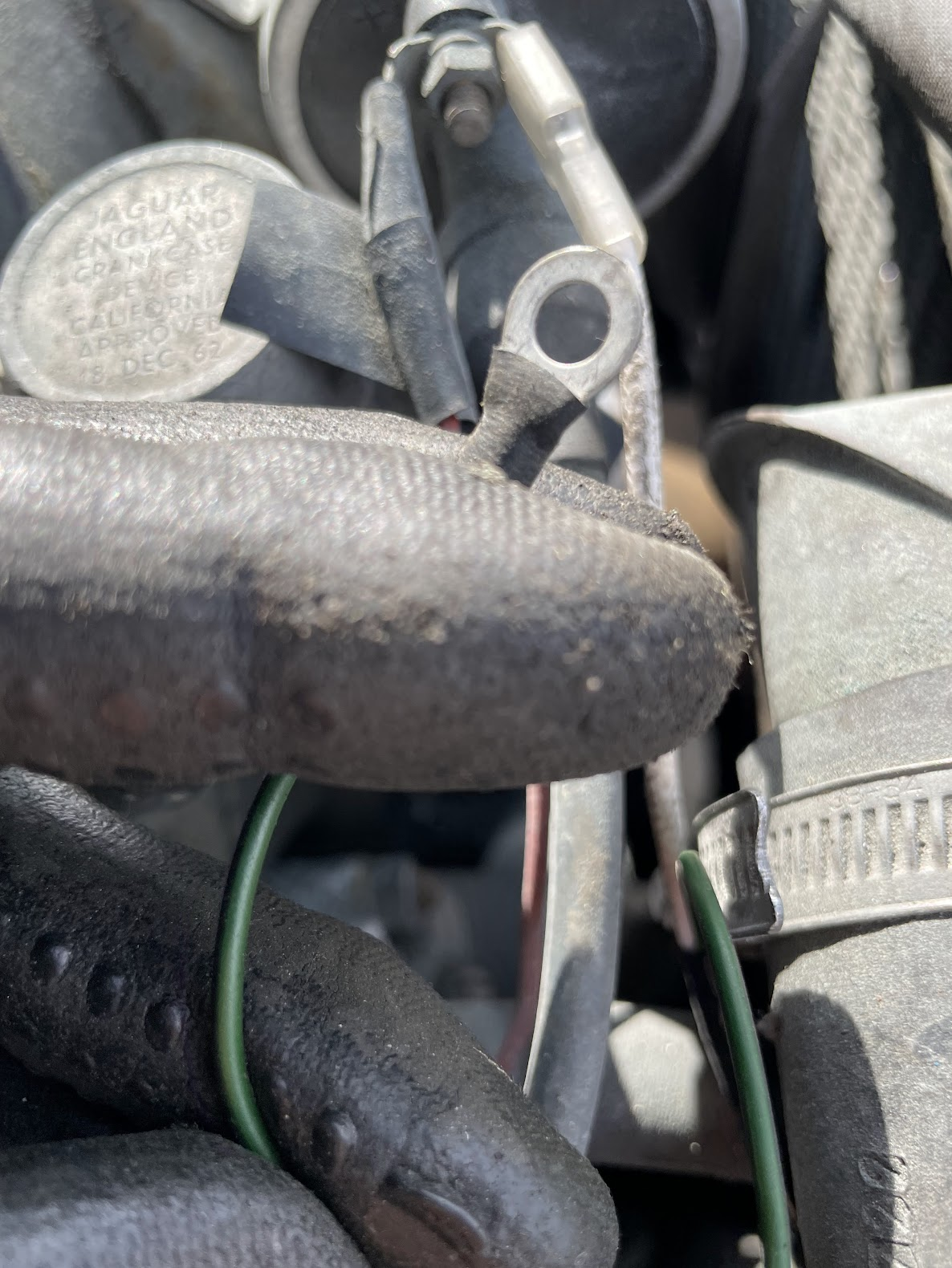

one Green black with an Eye loop by the Coil.

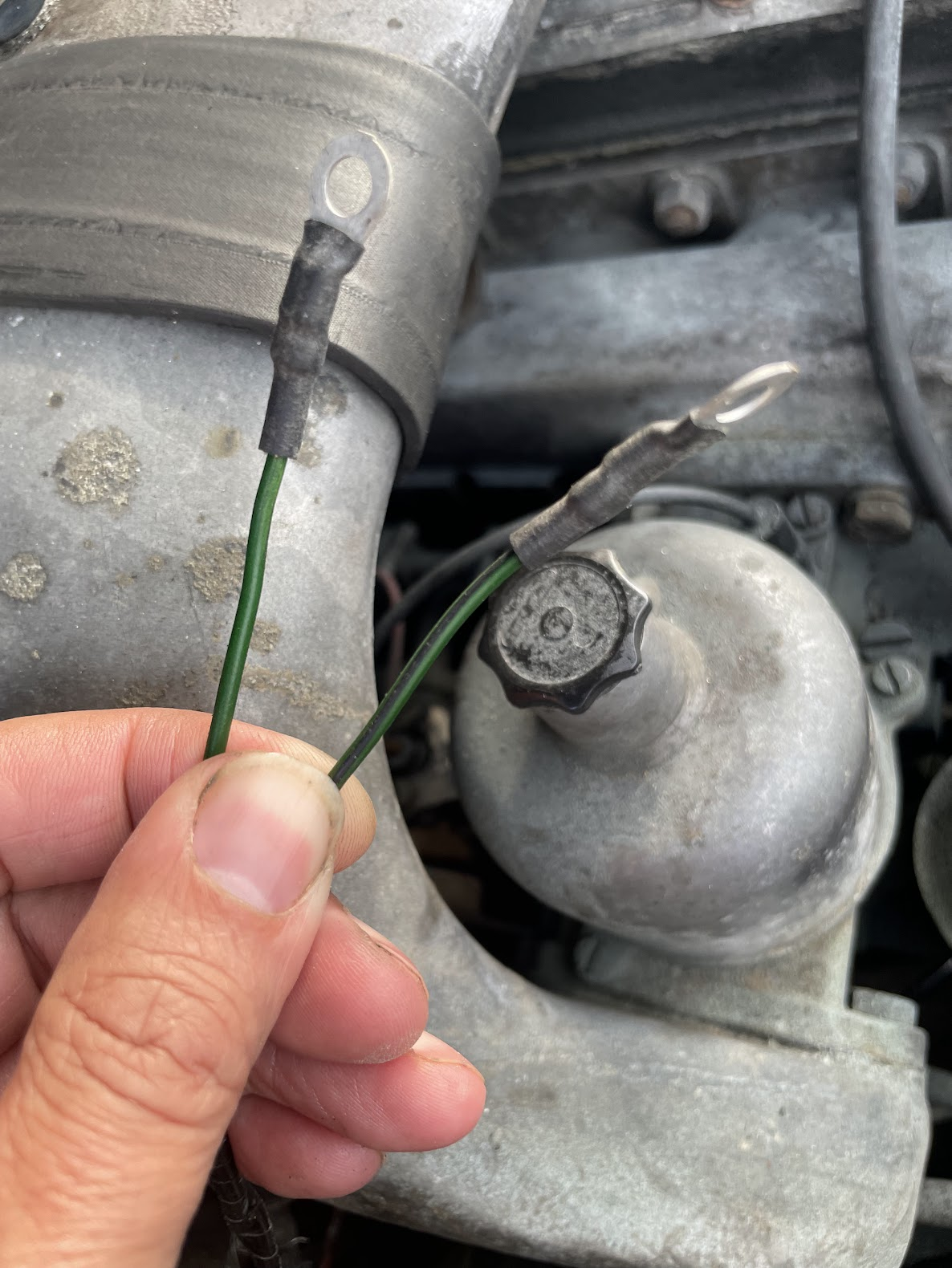

and then a green and a green black with Eye loops if they are automaic Choke controls they should be spade connection.


XJtom

XJtom

Member
Country flag
Offline
is this for a MK 1 or 11, the wiring you're showing is for a MK1 which didn't have a relay standard, the MK 11 has a relay but different wiring colours....i can give the diagrams for both in colour so you can adapt........below is the Mk11 with horn relay, the wiring harness you have may well do both models........

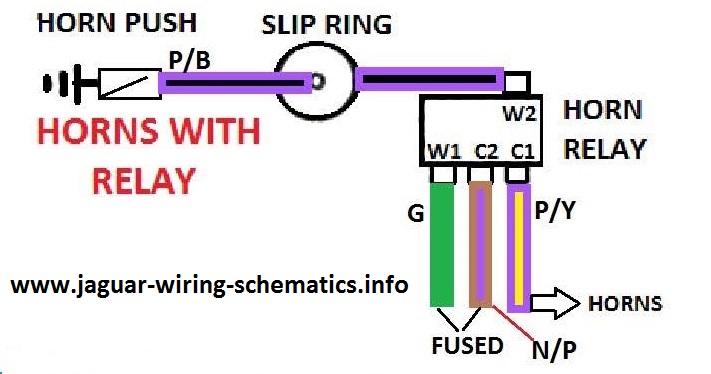

MK11 horns with relay.jpg

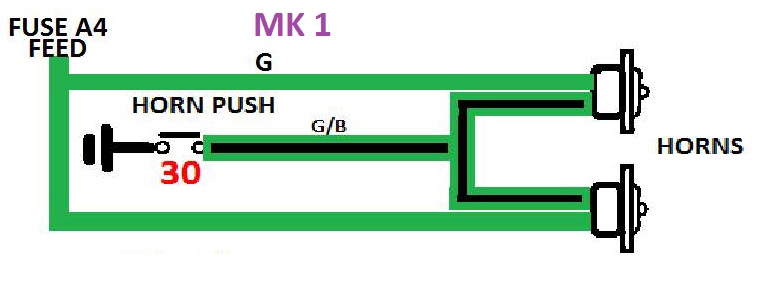

MK 1 horns.jpg

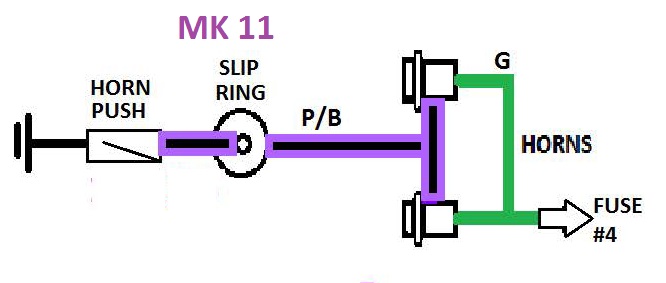

Mk 11 horns.jpg

Last edited:
