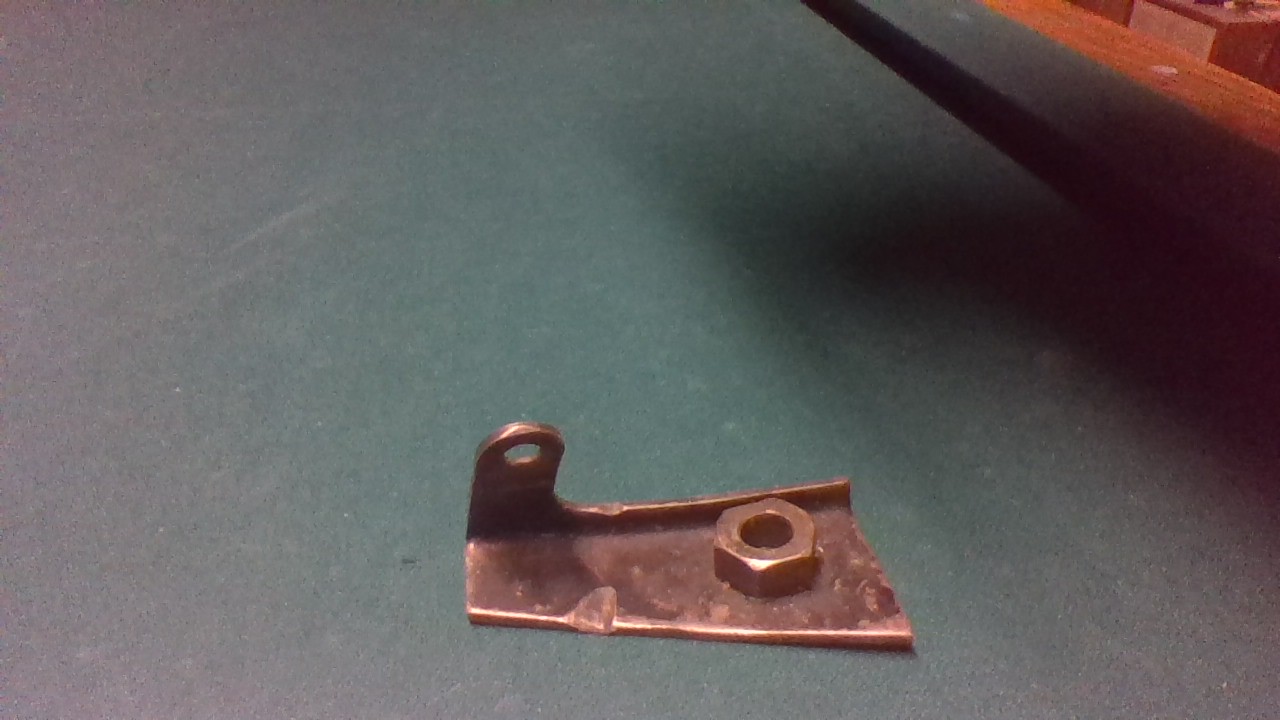

TR2/3/3A Mystery TR Part

[karls59tr]



[philstr6]

exhaust hanger,fits on the rear mount to transmission
Phil



[charleyf]

exhaust hanger,fits on the rear mount to transmission
Phil

I would add that the only one I have seen was on a TR4--(I believe) A.
Charley



[mctriumph]

Yes Tr4 and had a rubber cushion to dampen exhaust rattle. the rubber died very quickly.
Mad dog



[karls59tr]

I would add that the only one I have seen was on a TR4--(I believe) A.
Charley

OK. Guess it would not fit well on a TR3. The exhaust pipe banging inside the cruciform is driving me nuts so I ordered the stock TR3 hold down bracket from Moss.



[charleyf]

OK. Guess it would not fit well on a TR3. The exhaust pipe banging inside the cruciform is driving me nuts so I ordered the stock TR3 hold down bracket from Moss.

It is a real PITA to install. But it does work. Actually if the mystery part does come off of a TR4 you may be able to use it. But you only have part of it. I believe there is also a hanger that is suspended below the part that you do have.
Charley



[Sarastro]

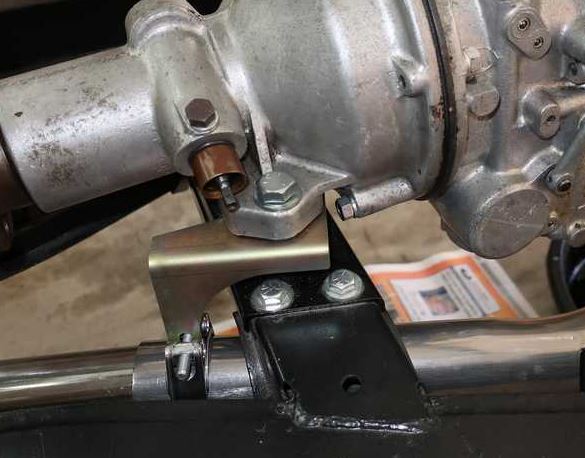

Here's how it fits on the TR4A. This is aftermarket, but it looks almost identical.



[karls59tr]

Here's how it fits on the TR4A. This is aftermarket, but it looks almost identical.

View attachment 96121

Is that an overdrive its bolted to? Not readily adapted to a non OD gearbox by the look of it?



[charleyf]

Wrong. Fits the same.



[Hamish Racing]

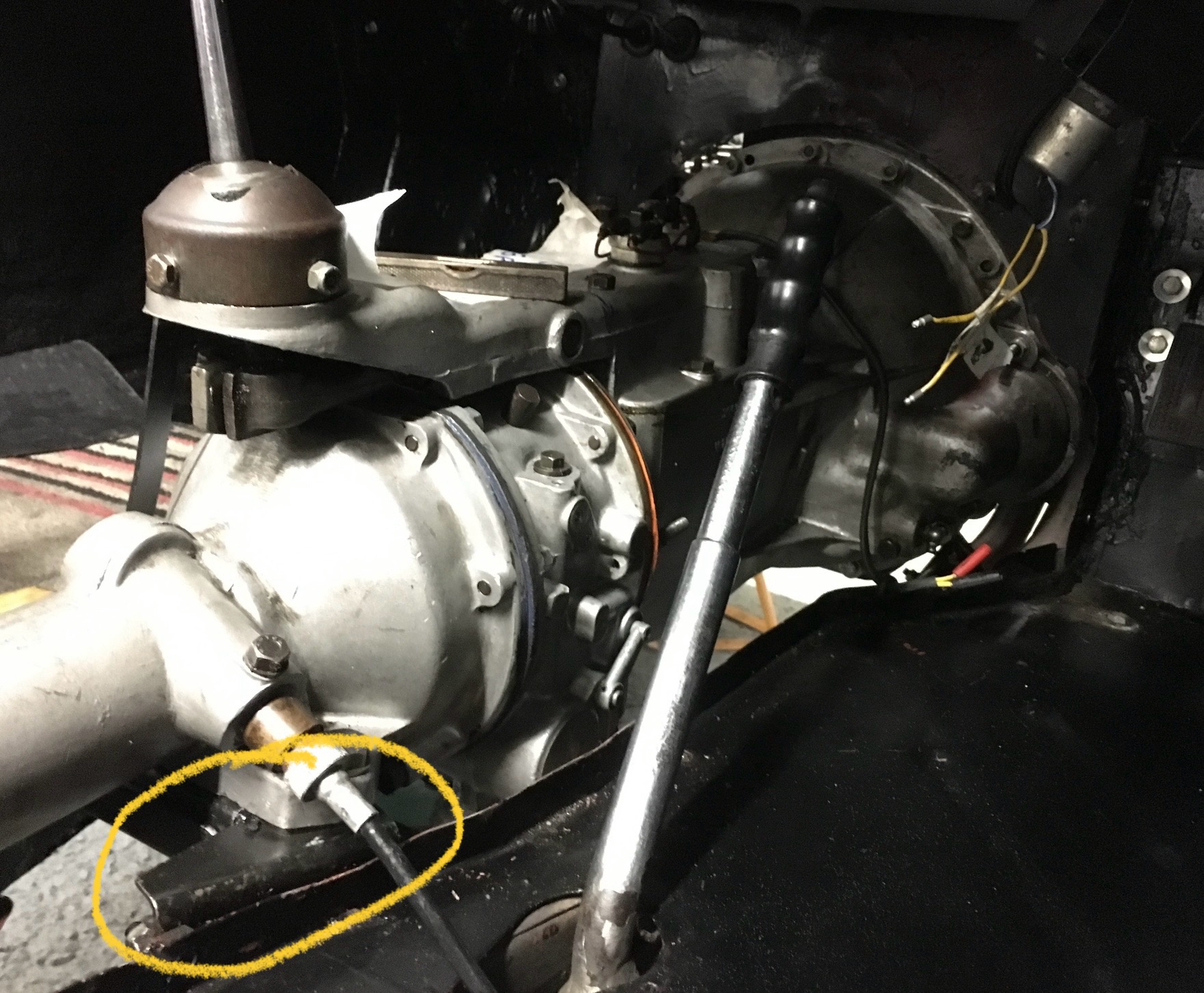

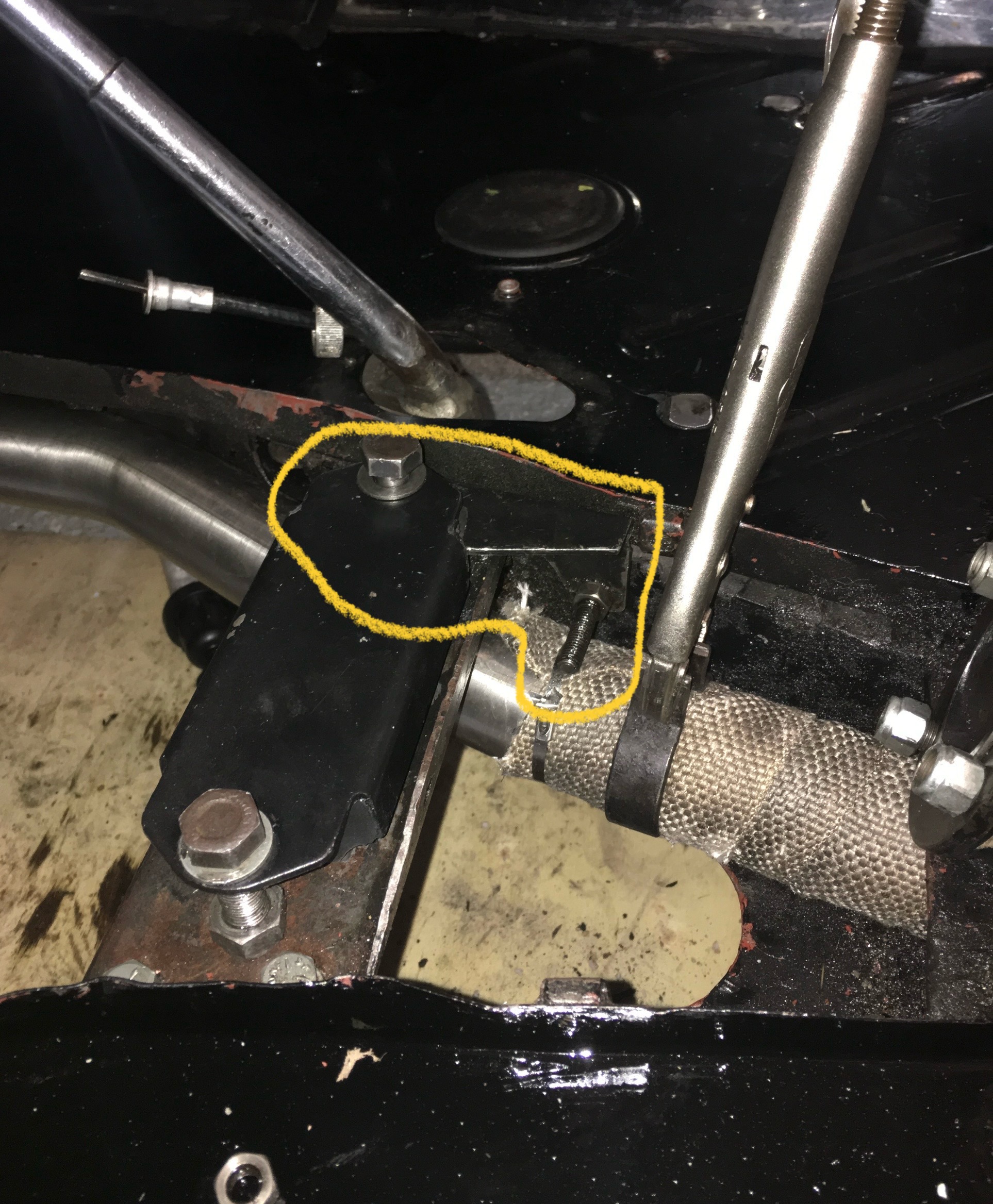

this is the bracket on my ‘59 TR3a with an early tr6 Atype od gearbox
but I think the rear mounts are in the same place whether its OD or not.

the exhaust is a big bore system so I have wrapped it here and through the cruciform to prevent knocks and vibration.
