TR4/4A Wiring the horn when installing a Moto -Lita steering wheel

E

eyesie

Guest
Guest
Offline
I am sure this has been asked before, but here goes. I am planning to install a moto-lita steering wheel on my TR4, and was wondering how to make the horn connection? Any photos would be great.

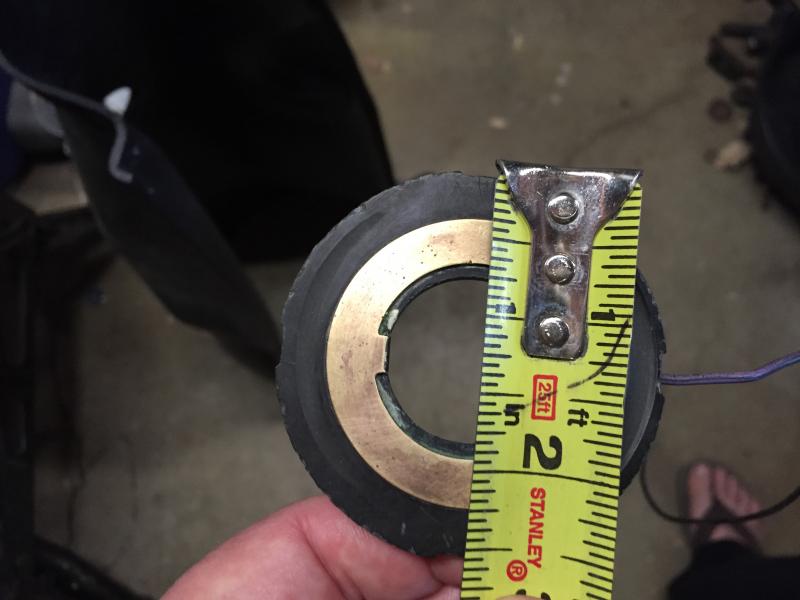

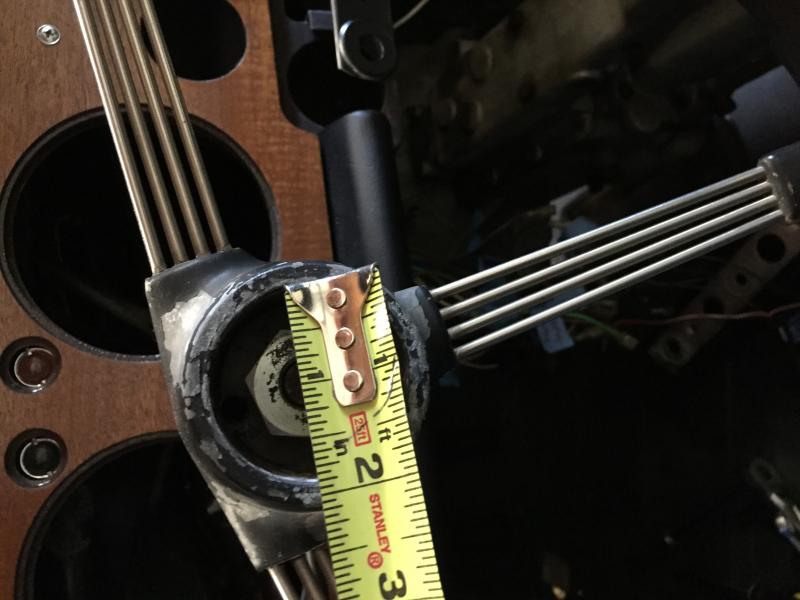

On another note, in the past I bought a banjo style wheel off Ebay. I was told it was for a TR4. I just found out the ID of the boss is less the slip ring, so obviously not for a 4. Any ideas as to what this could be off? It is 16" Dia. See photos


Attachments

  • IMG_3643.jpg
    51.5 KB · Views: 25
  • IMG_3645.jpg
    41.8 KB · Views: 20

TR4nut

Yoda
Country flag
Offline
Do you have a picture of the boss you will use to mount the Mota Lita wheel? Some bosses use the same style brush as the original wheel, others may have a spring loaded connection built in to contact the horn ring.

OP
E

eyesie

Guest
Guest
Offline
Yes, this one has the spring loaded connection , with a spade connection on the back. After speaking with my son, I understand that I connect this spade directly into the harnes connections, the ground is through the boss.
