TR2/3/3A TR3 choke cable connection help needed

TuffTR250

Jedi Warrior
Country flag
Offline
For a TR3A, could someone post a picture showing how the choke cable connects to the cable support, i.e. "LINK, front jet lever, w/bolt & nut" (#60 in Moss catalog for H6 SU carb), and to the bottom of the front carb JET LEVER, (#33 in Moss catalog) along with pieces that clamp the cable wire (#39 in Moss catalog). The LINK piece on mine seems to be twisting the cable and not letting the internal wire move smoothly. Thank you very much!
Regards,
Bob


TR3driver

Great Pumpkin - R.I.P
Offline

GTP1960

Jedi Knight
Offline
Say, what are the curved fuel lines running from the float bowls to the air filters (above the piston lifting pins)?

i don't have them on my 60 3A


M_Pied_Lourd

Darth Vader
Country flag
Offline
They are just short lines running from the carb top for the overflow. I have seen many different non stock versions...I think they get lost easily or fall off etc...mine are essentially a small piece of rubber fuel line that pushes on to the overflow port on the top of the carb and then a small length of curved metal tube directed downwards.

Cheers
Tush

OP
T

TuffTR250

Jedi Warrior
Country flag
Offline
Randall, thank you for the picture! For some reason I did not have that Practical Hints book. I now have it in softcopy. I looked in all my service manuals and could not find a picture of that linkage.

Mike, thank you for the explanation of the picture! As you say, that connection is not intuitive! I had to read your post and look at the picture from Randall several times before I could see what you were saying. That seems like a really weird way to connect up that mixture control rod to the bottoms of the jet levers. I'll give it a try and see how mine turns out.
Regards,
Bob


Geo Hahn

Yoda
Country flag
Offline
...I'll give it a try and see how mine turns out...

And that (how it turns out) is the key. I tried the method shown in the illustration but had some binding in the choke action. Changing one end (do not recall which) got things lined up better and working smoothly.


Don Elliott

Obi Wan
Offline

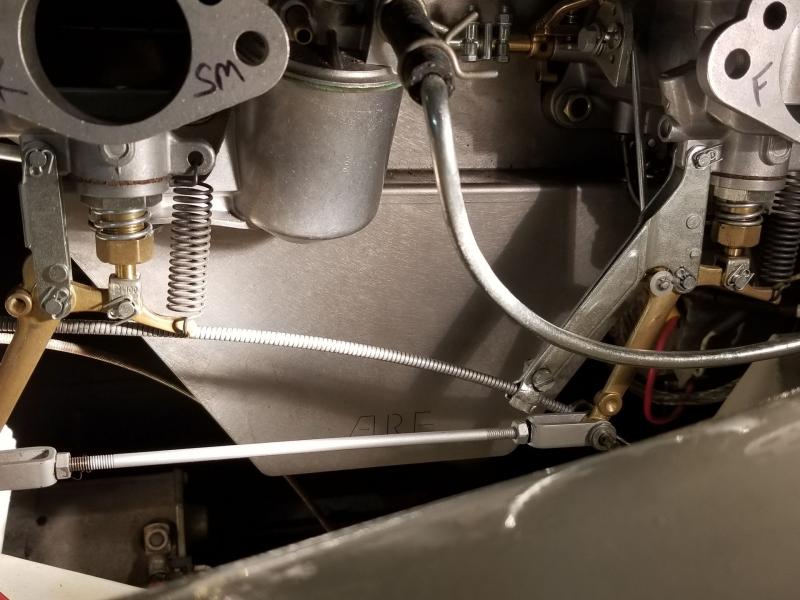

Here's a photo of my set-up showing that the cross pin where the choke cable is secured - is not sitting with the yoke on both sides of the vertical link. The full yoke is to one side of that vertical link.


M_Pied_Lourd

Darth Vader
Country flag
Offline
That's a great picture Don..saved me. I have been setting mine up as a saddle. Will change it out.

Cheers
Tush

OP
T

TuffTR250

Jedi Warrior
Country flag
Offline
I just did mine and I put the U-shaped pieces inside toward the engine as per picture. However, I found that mine worked better on the front jet lever if I turned the bolt around holding the choke cable and faced the nut end on the outside toward the fender. The cable ended up straighter that way.
Regards,
Bob


TR3driver

Great Pumpkin - R.I.P
Offline

GeezerJarhead

Freshman Member
Offline
Randall do you still have this photo of the choke cable connection to the carb? I can't seem to get it to display and the other photo posted by Don Elliot in this thread is gone.
Thank you ever so much..


TR3driver

Great Pumpkin - R.I.P
Offline

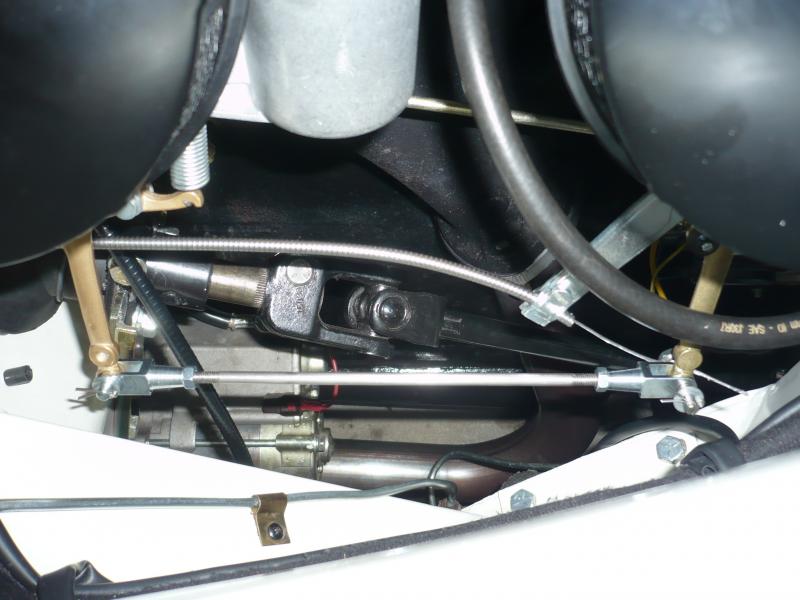

Try this

https://i.imgur.com/sRxPxnb.jpg



STeve 1958

Jedi Hopeful
Offline
The linkage can be located on the manifold side, centered, or on the fender side. The important thing is to bend the bracket that holds the cable shroud so that you get good alignment with choke on and off. Personally, I center the rod cause it looks better to me.


Graham H

Jedi Warrior
Gold
Country flag
Offline
David

Sorry about that but it's best if I drive on the lefthand side of the road over here?

Graham
