TR5/TR250 SU carb ID help

RGK

Member
Silver
Country flag
Offline
I am trying to confirm the SU's on the car are HS6's. The only id on the carbs are shown in the pictures.

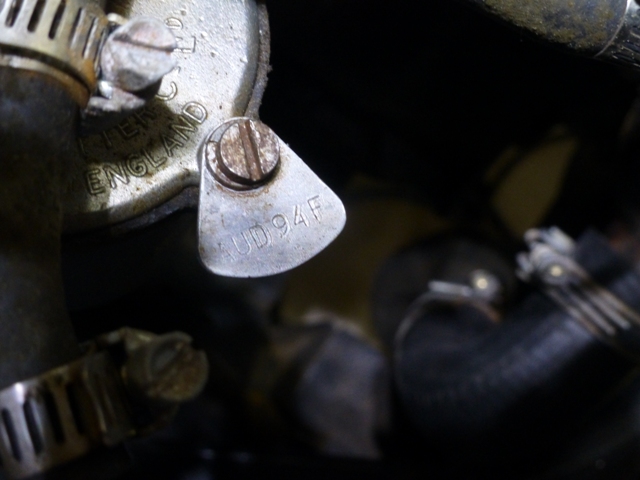

This is the only tag.

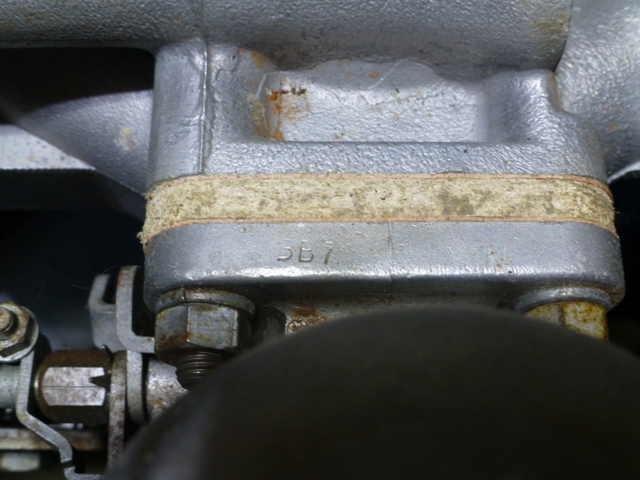

This is stamped on the manifold side flange on both. 3B7.

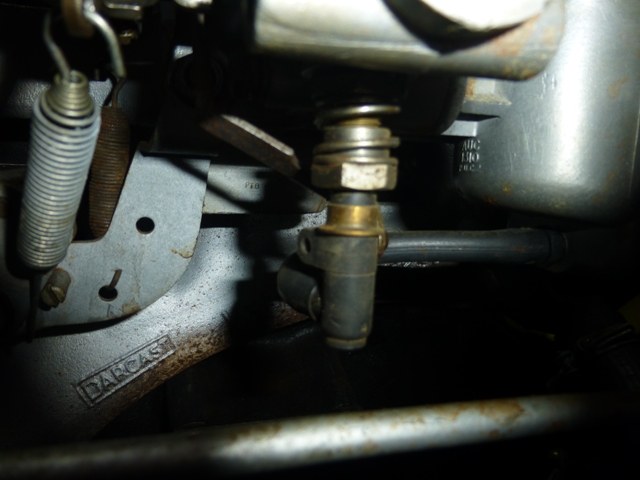

The fitting under the carb is connected by a hose to the fuel bowl.

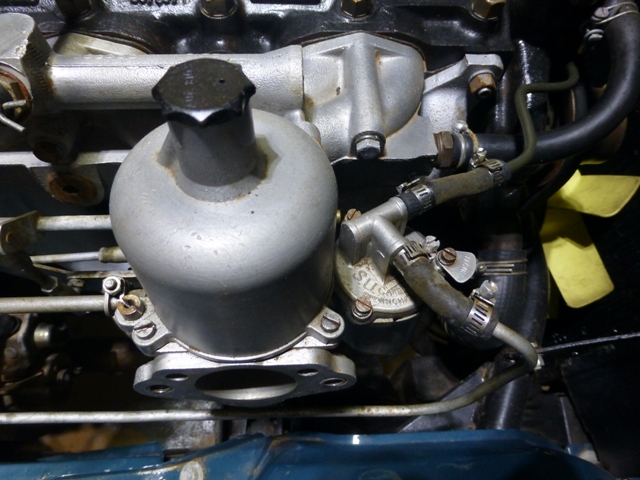

Overall shot of the fwd carb.


Hamish Racing

Jedi Hopeful
Country flag
Offline

charleyf

Jedi Knight
Bronze
Country flag
Offline
I am trying to confirm the SU's on the car are HS6's. The only id on the carbs are shown in the pictures.

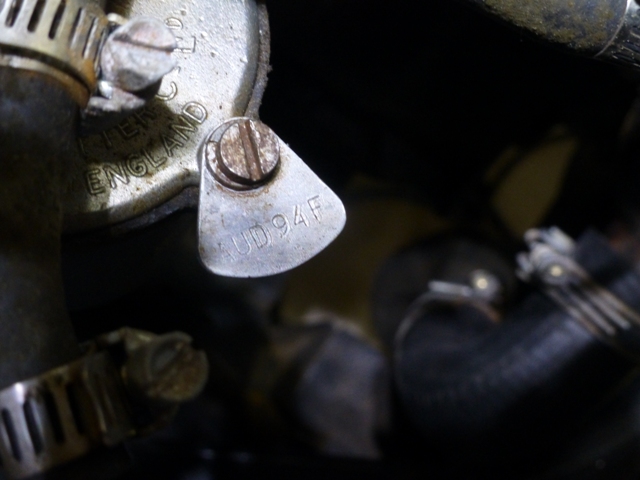

This is the only tag.
View attachment 70244

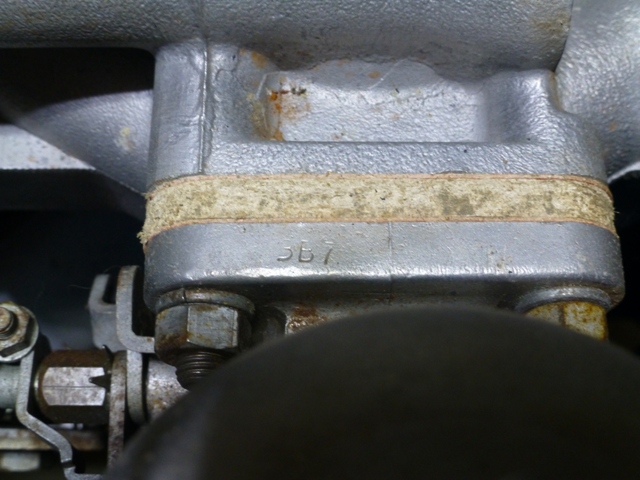

This is stamped on the manifold side flange on both. 3B7.

View attachment 70245

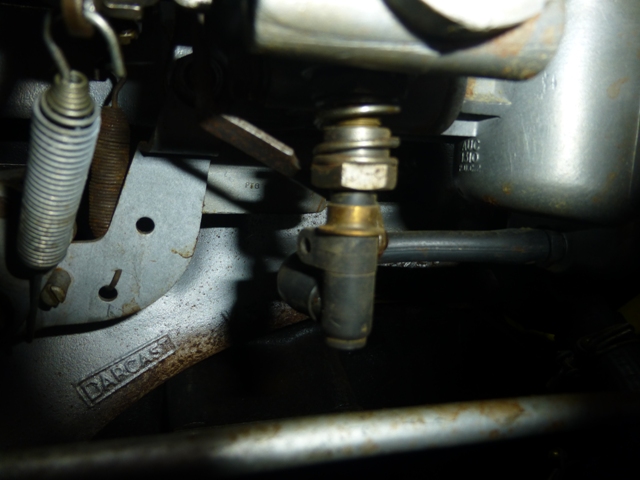

The fitting under the carb is connected by a hose to the fuel bowl.
View attachment 70246

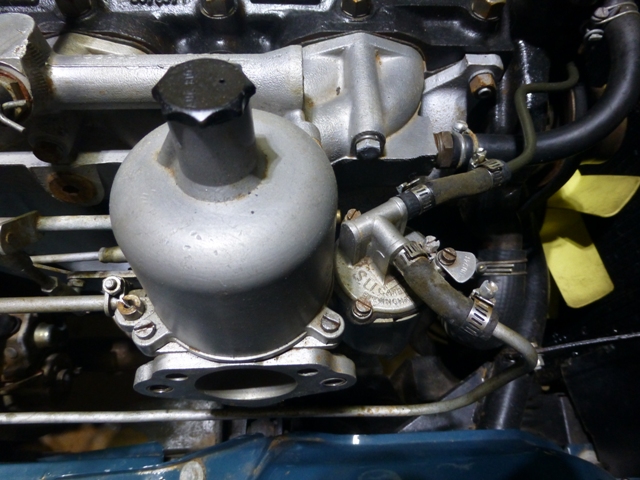

Overall shot of the fwd carb.
View attachment 70247
You are the proud owner of a set of HS6 SU'S. That originated on a Volvo. Either a model B18D, P544 or P122S according to my Haynes SU CARBURETORS Owner Workshop Manual. That aluminum tag on the carb is the only identifier as to what cars these HS6 carbs were set up for.
I bought a TR4 that had the same carbs. I believe my car was used in racing and that was the reason they switched to these carbs. The carbs worked good and are very similar to the AUD 209's that were installed on some TR4 and TR4A's. I have since located several sets of the 209's and have replaced my AUD 94's with the 209's. I have also replaced the H6 carbs on my other TR4 with a set of 209's. In addition I have rebuilt another set of 209's for a friend and he is using them on his TR6. He previously had a set of Webers on that TR6.
As best as I can tell the difference between the 94's and 209's is the needle size and maybe the adjustment of the angle of the float bowls.
In your third picture that hose between the float bowl and the jet is the superior feature of these carbs. You can still buy the HS6 carbs from Moss and such. However there are a few changes that have been made to them over the last 50 years. We recently put a set of those new HS6's on a restored TR 6.
Hope this helps.
Charley
p.s. The "F" is for front carb. If you had a tag on the rear carb it would have stated AUD 94 R.

OP
RGK

RGK

Member
Silver
Country flag
Offline
Thanks all, and Charley, it certainly does help. I like to keep a rebuild kit on the shelf.

Just checked for the SU manual on Amazon; price is $206.47 :eek: I will check Burlens tech library.


titanic

Jedi Warrior
Country flag
Offline
Try Goggling "SU carb manuals". You will find many in the $30 neighborhood and some free downloads. I like Haynes because it includes the needle profiles.
Berry


charleyf

Jedi Knight
Bronze
Country flag
Offline
Thanks all, and Charley, it certainly does help. I like to keep a rebuild kit on the shelf.

Just checked for the SU manual on Amazon; price is $206.47 :eek: I will check Burlens tech library.
In my opinion you do not need a manual to be able to rebuild a HS6 SU carb. But I bet you can find what you need in on line posts. The HS6 mostly requires that you pay attention to how it comes apart and get it back together in the same order. I say this but then realize that I have been occasionally working on SU carbs now for 30 years. But a no expert at it.
Charley
