Photos of Longbridge BN4 door seal track.

haasad

Jedi Hopeful
Offline
Does anyone have a set of pictures showing the section and assembly of the Longbridge BN4 door seal tracks. Preferably the individual parts rather than them fitted.
Andy


healeyblue

Jedi Warrior
Gold
Country flag
Offline

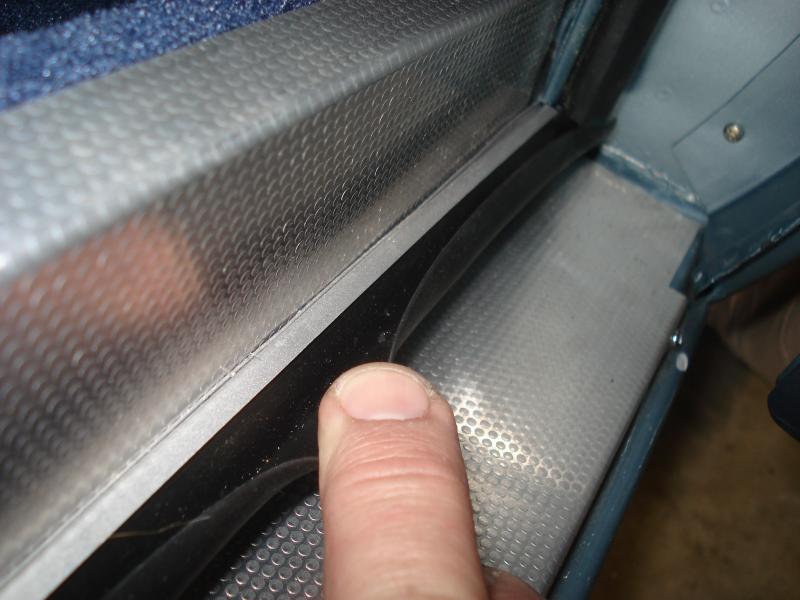

Here are a couple in place. These show the correct orientation of the seal. I originally had them backwards and it was binding when I closed the door pushing the door gaps out. Pay attention to the windlace as it is different on the longbridge cars as well. None under the dash and just a short piece glued to the front door opening. Also check out this thread there is a little talk of the door seal track in it also but lots of good longbridge talk.
https://www.britishcarforum.com/bcf...ridge-interior&highlight=door+seal+longbridge


Attachments

  • 2013-03-15 002.jpg
    2013-03-15 002.jpg
    52.6 KB · Views: 56
  • 2013-03-15 004.jpg
    2013-03-15 004.jpg
    43.9 KB · Views: 54

healeyblue

Jedi Warrior
Gold
Country flag
Offline

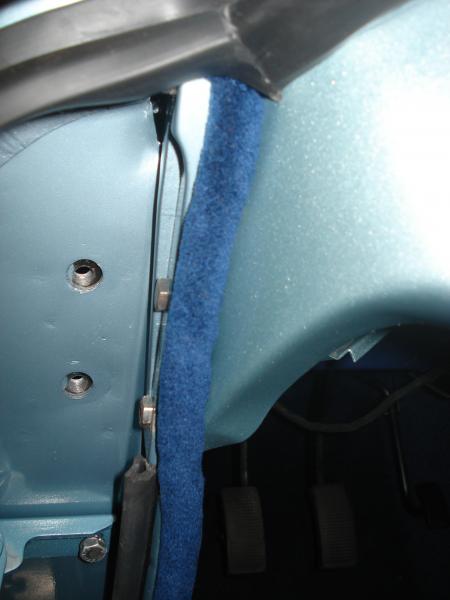

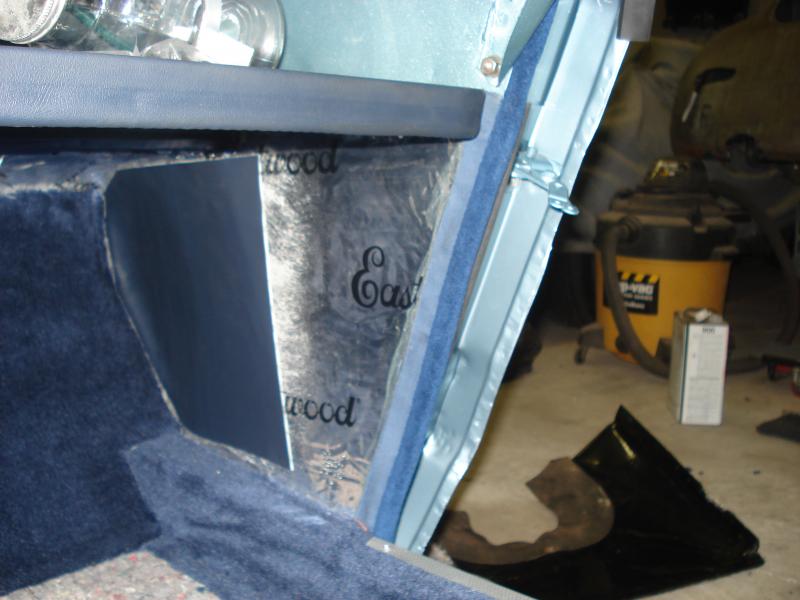

Here are some more showing the windlace detail. These were taken before I realized the proper orientation of the seal so disregard the direction the seals are facing.


Attachments

  • 2013-01-08 010.jpg
    2013-01-08 010.jpg
    25.1 KB · Views: 56
  • 2013-01-08 011.jpg
    2013-01-08 011.jpg
    53 KB · Views: 56
  • 2013-01-08 008.jpg
    2013-01-08 008.jpg
    38.6 KB · Views: 53
OP
H

haasad

Jedi Hopeful
Offline
Here are some more showing the windlace detail. These were taken before I realized the proper orientation of the seal so disregard the direction the seals are facing.

Thank you they really help. I'm not a real stickler for perfect originality but the bodge up seals a previous owner had made by using an edge grip type in black rubber fitting where it touched was horrible.
I can see from these photos how it should work. I'm going to buy a cellular foam seal with a mounting lip which I will make a track for very similar to the original. The detail of the foremost seal and the furflex is also excellent .
I can see I need to make an extension for the existing flange on the body by cutting a section to bolt in with the windscreen mount. This will give me an edge to sit the furflex on all the way up like yours. The foremost seal section is a standard section which I can easily buy from COH Baines or Woolies Trim here in the uk.

Thanks again.


healeyblue

Jedi Warrior
Gold
Country flag
Offline
The furflex has a "tail" made to it which you can see I glued to the inside edge of the side wall of the cowl. To make it secure all the way up like I did I put a slit in the "tail" and the top half of the "tail" is on the out side of the door opening and sandwiched under the windshield post mount.
