Is there a seal between the drain channel and drain box?

PeterB

Senior Member
Country flag
Offline
On a BJ7 is the some type of seal between the drain channel and drain box or are people just using something like silicone caulking? Sorry, I think the pic is upside down....


Attachments

  • 84D888E4-1041-4003-ADF3-82E3B6169936.jpg
    40 KB · Views: 52

vette

Darth Vader
Silver
Country flag
Offline
I turned the pic for you.


Attachments

  • 84D888E4-1041-4003-ADF3-82E3B6169936.jpg
    40.2 KB · Views: 50

vette

Darth Vader
Silver
Country flag
Offline

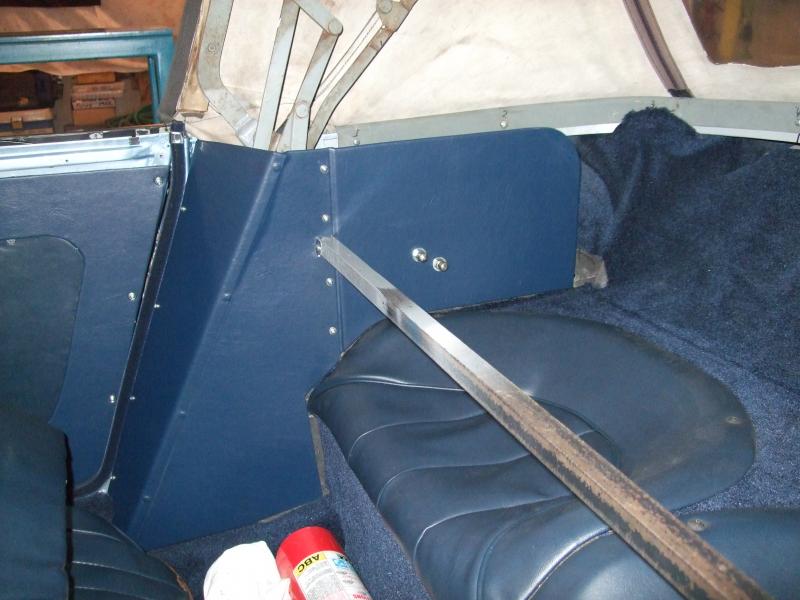

Sorry I don't have any specific pictures of that area but maybe because of a Senior Moment I can't quite picture what you mean when you refer to the drain box. I believe I remember that a hose drains the channel into the wheel well. i've attached the only pic I have relative to that area and admittedly it doesn't show much of what you are talking about.


Attachments

  • Copy of DSCF2720.JPG
    Copy of DSCF2720.JPG
    46.4 KB · Views: 35
  • DSCF2762.jpg
    58.4 KB · Views: 32
OP
P

PeterB

Senior Member
Country flag
Offline
It's the part that's connected to the end of the drain channel with rivets where the drain hose connects.


vette

Darth Vader
Silver
Country flag
Offline
Well now you got me wondering. So I ran out back to the shop got a couple rather poor pics. The rivets you have thru me off. i never took the drain channel and "Box" out of my car. So looking at it now i am pretty sure the two pieces are welded together. I will get the pics out of the camera but it will take me a few minutes.


vette

Darth Vader
Silver
Country flag
Offline
These pictures aren't the best, but best I could get. I'm pretty sure the two are welded together the small lumpy line is the weld line.


Attachments

  • IMG_0773.jpg
    64.4 KB · Views: 40
  • IMG_0774.jpg
    65.8 KB · Views: 36

GregW

Yoda
Platinum
Country flag
Offline
Hi Peter, It looks like someone cut your drain channel up and replaced the "box" section with a part they riveted on. So there is no sealer there other than what you'd want to use. I have attached a photo but here is a link to Moss' channel where you can enlarge their image to see the part's construction. https://mossmotors.com/drainage-channel?assoc=67549
conv mount closeup 2.jpg


Bob Hughes

Luke Skywalker
Country flag
Offline
If I am reading you right, the 'end box' and the drain channel are welded together, as Randy says, I have a complete new one in the garage ready to be fitted to the car some day.

:cheers:

Bob
