Help installing toggle dip switch on dash for lights.

55modified

Senior Member
Offline
I need a light "dip switch" for my headlights. The floor switch can't easily be reached due to pedals in my car. Would like to install Lucas style toggle switch on dash for this function. Anyone done this? What type of switch would I need? Three way? On/on? Most are just on/off so I don't think those would work?


vette

Darth Vader
Silver
Country flag
Offline

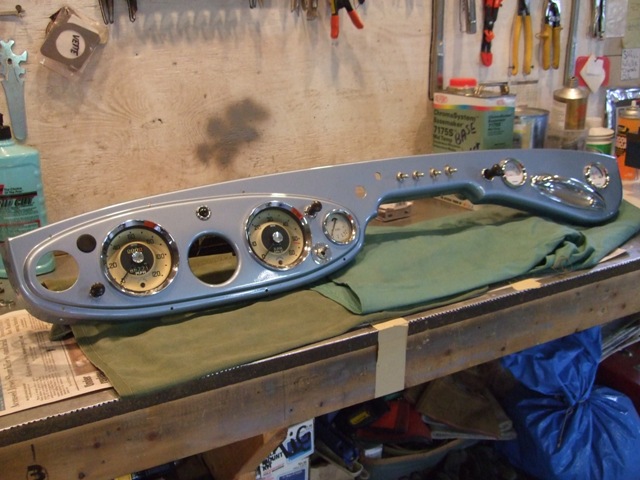

I haven't looked at that circuit for awhile but i would suspect that it is a three way switch. 3 terminals, one is common the other 2 would be on or off depending on the switch position. I bought the toggle switches I used for my twin fuel pumps from NAPA. They can supply almost any configuration, look at their website. My fuel pumps are electrically interlocked so that only one will come on at a time. I used double pole/double throw toggle switches from NAPA for that. See pic.


Attachments

  • Copy of DSCF2066.JPG
    Copy of DSCF2066.JPG
    98 KB · Views: 43

HealeyRick

Yoda
Silver
Country flag
Offline

vette

Darth Vader
Silver
Country flag
Offline
Rick, what you discribe would be the same as what is called a 3-way switch if you have an off position in the middle. Hot wire would come in to a middle terminal then the up position could be used as the high beams and the bottom position could be used as the low beams. Ideally, there would be no need to have an off position if you are using the original dash headlight switch as the off/on switch. In which case you would have a toggle switch that just moves from on to on with no center stop position. but it would still need 3 terminals in the back.


Keoke

Great Pumpkin
Country flag
Online
That's COOL Rick just leave the normal dash switch on all the time.--:encouragement:

Course when i first saw it i thought it was the gear shift lever.-----:congratulatory:


DerekJ

Luke Skywalker
Country flag
Offline
You don't need a 3 way switch. I still have the normal 'pull' switch for the lights and just use a 2-way switch on the dashboard for the main/dip. It is the simplest solution as all you are doing is replacing the 2-way floor switch with with a 2 way dash switch.

OP
55modified

55modified

Senior Member
Offline
DerekJ, so just a simple on/off toggle switch? What did you use exactly?

I like the idea of constant on. Not sure I want "off" in middle between throws.

Country flag
Offline
If I were doing it I'd opt for a three-position switch: Up=on, middle=off, down=momentary on, the last being used to flash the lights at oncoming traffic for whatever reason.


RAC68

Darth Vader
Offline
Hi All,

I am a little confused why you would put the dip switch on the dash and not just keep it on the floor? I would expect there are enough to address with your hands and dipping the headlights seems to be just another.

Have you installed relays to off-load the total flow of lighting power from passing through the dash harnesses? If so, are your driving lights powered only with High Beams as is required in many US States? As I see it, if so, the installation of a 2 or 3 way dash dip switch should be relatively easy by running a line from the dash dip switch as a replacement of the floor dip switch.

Am I missing something?
Ray(64BJ8P1)


HealeyRick

Yoda
Silver
Country flag
Offline
Hi All,

I am a little confused why you would put the dip switch on the dash and not just keep it on the floor? I would expect there are enough to address with your hands and dipping the headlights seems to be just another.

Ray(64BJ8P1)

Because V8. No room for your left foot to operate the switch if you've swung your pedals to the left to make room for the engine:




DerekJ

Luke Skywalker
Country flag
Offline

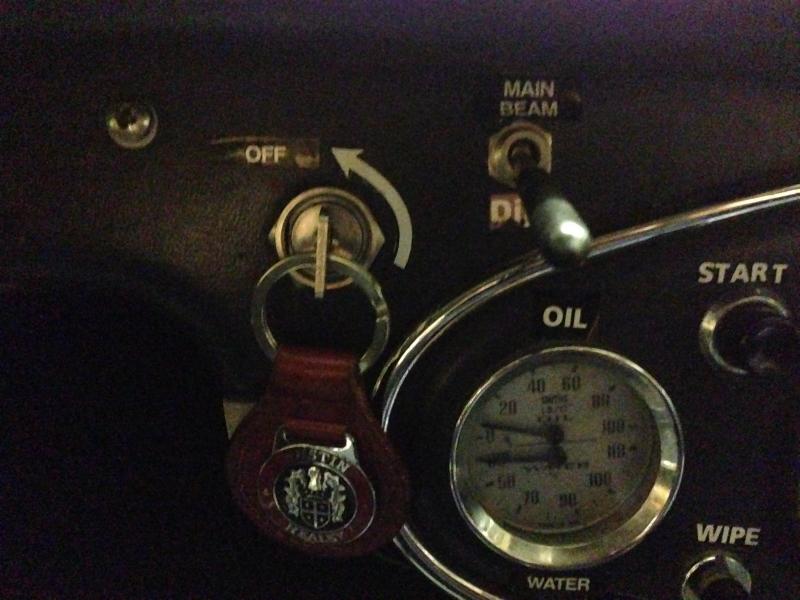

I use a long switch like the Holden example. (I think its the same but i can't actually access the Holden site!)

See attached


Attachments

  • IMG_1552.jpg
    58.3 KB · Views: 44

Keoke

Great Pumpkin
Country flag
Online
SO:
If so, are your driving lights powered only with High Beams as is required in many US States?

What chu do if driving lights go out???????


vette

Darth Vader
Silver
Country flag
Offline

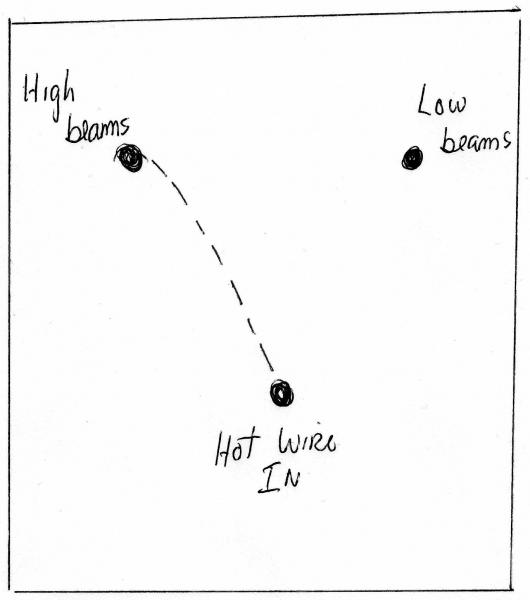

Hi folks, the nonmenclature of the switches is a little misleading. And I might admitt that in some parts of the electrical industry the names might be used differently but the name 3-way implies that the switch has 3 terminals. you would have a common which is the power to the switch and then two hots leading from the switch. The switch would be on in one direction or on in the other direction. There is no diffenate off position. As an example, when you have a light in your house that is controlled from 2 different switches at 2 different locations, those switches are 3-way switches. They have 3 terminals but alas there would only be 2 of them to control the light. If the light is controlled from more than 2 locations then the other switches in the circuit are called 4-way switches. Yeh, i know, it doesn't seem to make sense but that is the convention of naming switches configurations. so the have a switch that will turn on the low beams in one position, and the high beams in the other position with neither being on at the same time and no definate off position, you will need a 3-way switch. See drawing.


Attachments

  • img411.jpg
    19.3 KB · Views: 27

RAC68

Darth Vader
Offline
Rick,

I see your point where the modification of peddle location eliminates access for any reason in this tight real-estate condition.

Keoke,
Because of the state requirement to have the driving lights on only with the high beams, the dip switch dips both the high beam and driving lights together. Keep in mind that I am using 3 relays (low beam, high beam, driving lights). This is effected by having the dip switch gated to the high beam relay and the driving light relay. Yes, the driving lights can only be turned on with the high beams active and not with the low beams or independently. Since I have little use for the windscreen washer, I have imbedded the driving light switch within the washer pump button.

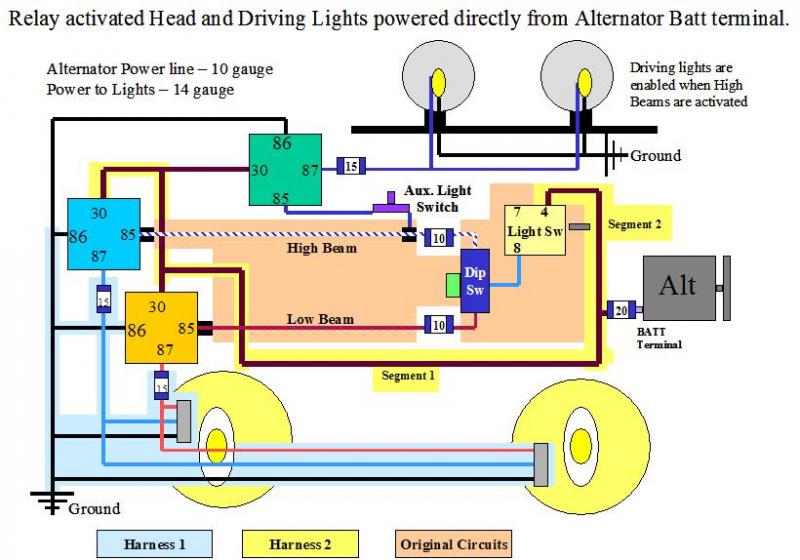

Headlight Relays.jpg

I have had the driving lights since the car was first purchased new and find that their long narrow beam was very complimentary to the broad wide beam of the high beams. I see little benefit for me to have the deriving lights on alone, however, could easily change this restriction if I decided to install fog lamps in place of the driving lights.

Ray(64BJ8P1)


Keoke

Great Pumpkin
Country flag
Online
YEP,BUT
Because of the state requirement to have driving lights on,IF they fail you are required to retire to the side of the road.

Keep driving lights separately energized N get home when head lights fail.:eagerness:

Last edited:

Keoke

Great Pumpkin
Country flag
Online
Nomenclature:

For Automotive Switches & Relays


Rocker/ toggles witches & Relays of different styles are referred to as - SPST, SPDT, DPST, DPDT, in On, Off .12 Volt Automotive r DC circuits.
.
Where:

S=Single
P=Pole
D=Double
T=Throw




Last edited:

John Turney

Yoda
Silver
Country flag
Online
I have an On-Off-On switch, but one of the Ons is spring loaded. Off is low beam, On is high beam. I use the spring loaded position to flash the high beams. Since I have the OD switch on the shift knob, the switch went in the OD switch spot. Very convenient.

OP
55modified

55modified

Senior Member
Offline
I have an On-Off-On switch, but one of the Ons is spring loaded. Off is low beam, On is high beam. I use the spring loaded position to flash the high beams. Since I have the OD switch on the shift knob, the switch went in the OD switch spot. Very convenient.

Where did you source that switch? What brand?
