Early '74 Midget - MC/Pedal Box Replacing

[AngliaGT]

Is it easier to reassemble the whole unit with the pedals attached?
With the M/C's attached?

- Doug



[Jim_Gruber]

That's how I did it.



[Billm]

When you reassemble the unit be sure that the pivot bolt goes in the right way!
If you put it in backwards it won't go back in.
BillM



[tomshobby]

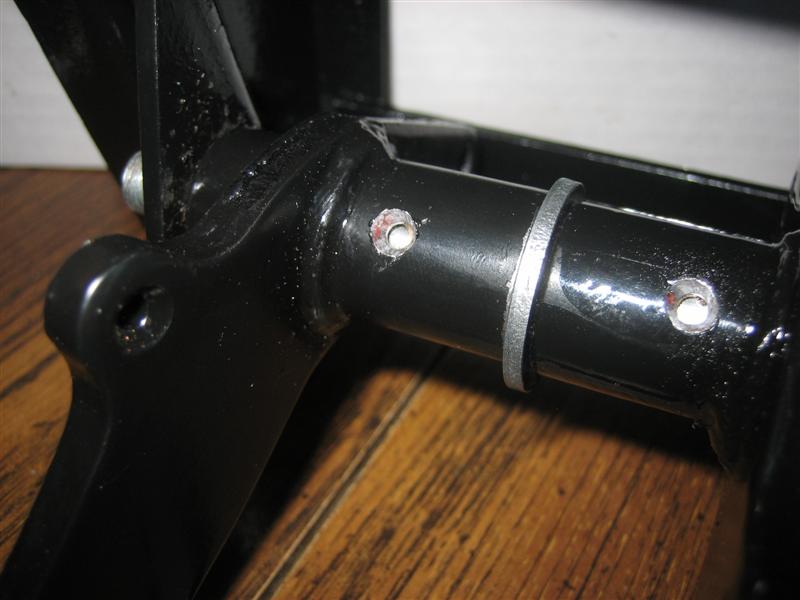

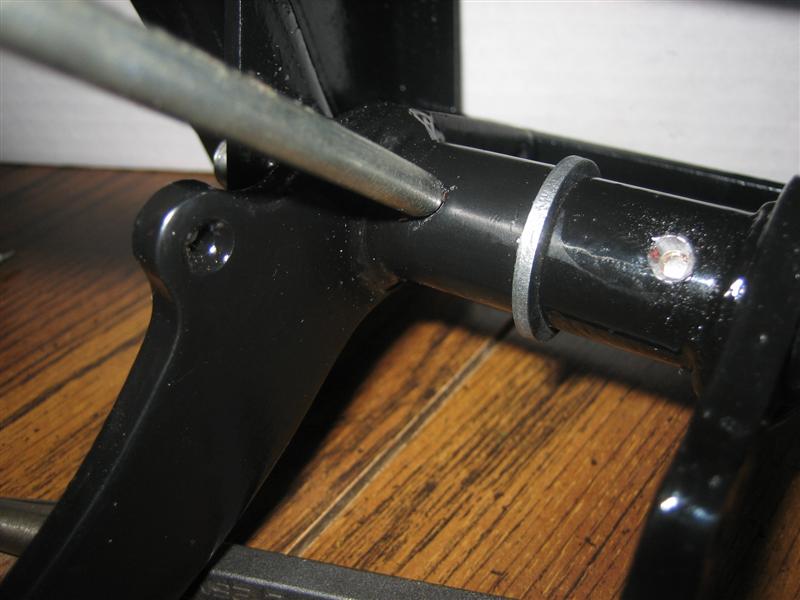

You might consider this small mod to make it much easier to lube.
I have done this to both my Midget and TR6. I have also done it to the door hinges on my TR6 and plan on doing the hinges on my Midget too.

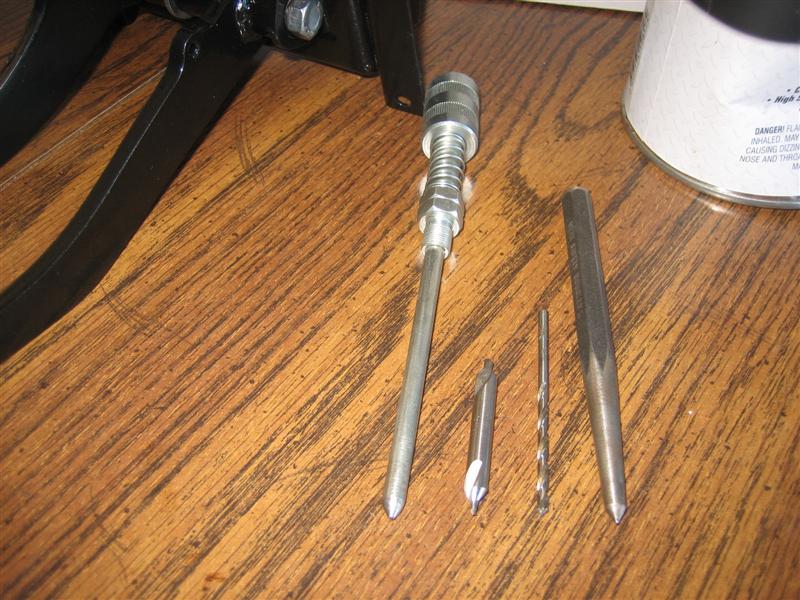

I used a 1/8" center drill to make the tapered hole that fits the grease gun adapter.
