Paint & Body Air Scoops Behind the Grille

Prefix for resources related to paint and bodywork of our LBCs

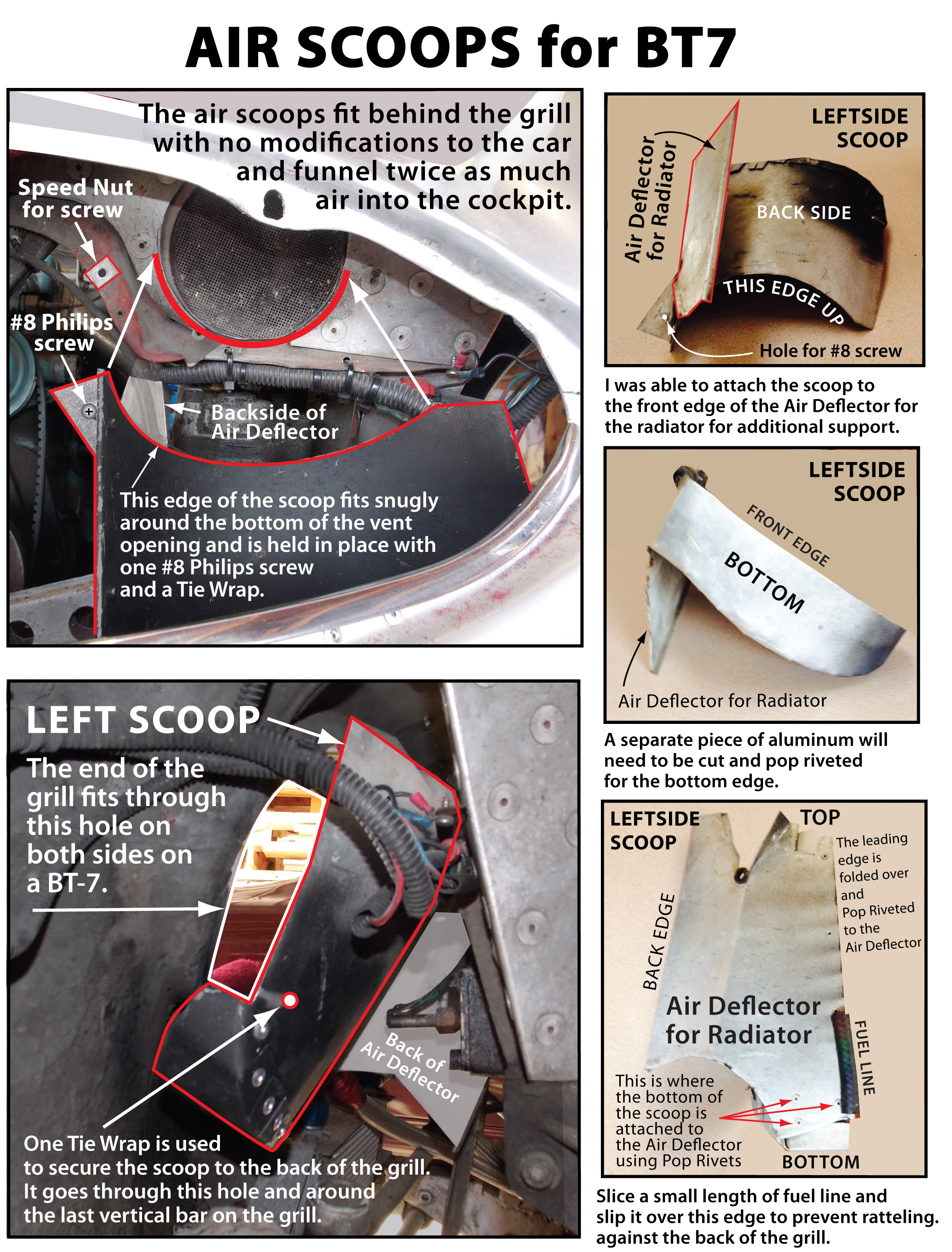

I designed these scoops to help funnel more fresh air into the cockpit but also to the carbs.
These are attached with one #8 screw and a Tie Wrap.

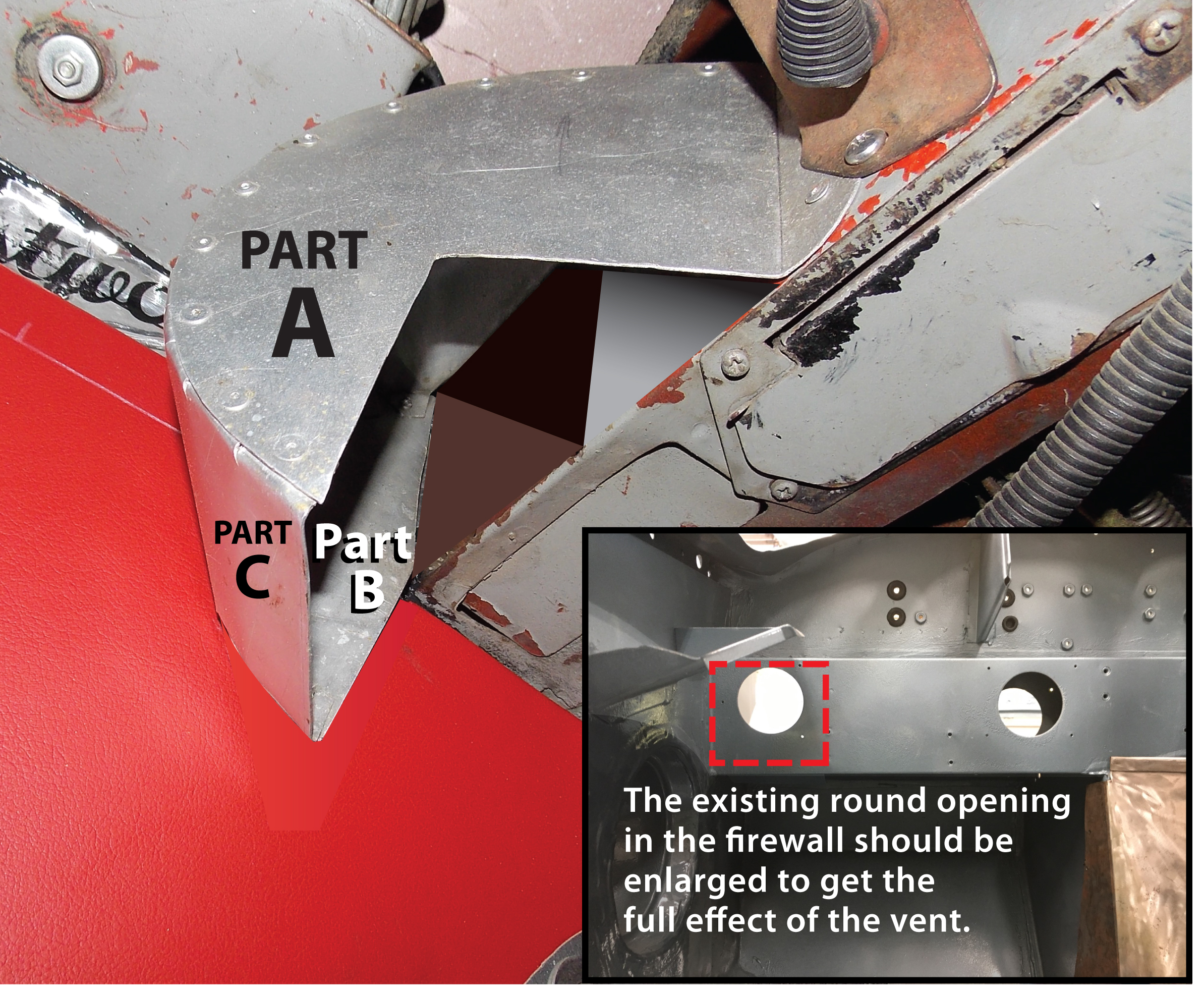

To get the full effect of the cool air you'll need to enlarge the little round hole on the firewall...
You do not have permission to view the full content of this resource. Log in or register now.
  • 180° Alternate View .jpg
    180° Alternate View .jpg
    2.6 MB · Views: 291

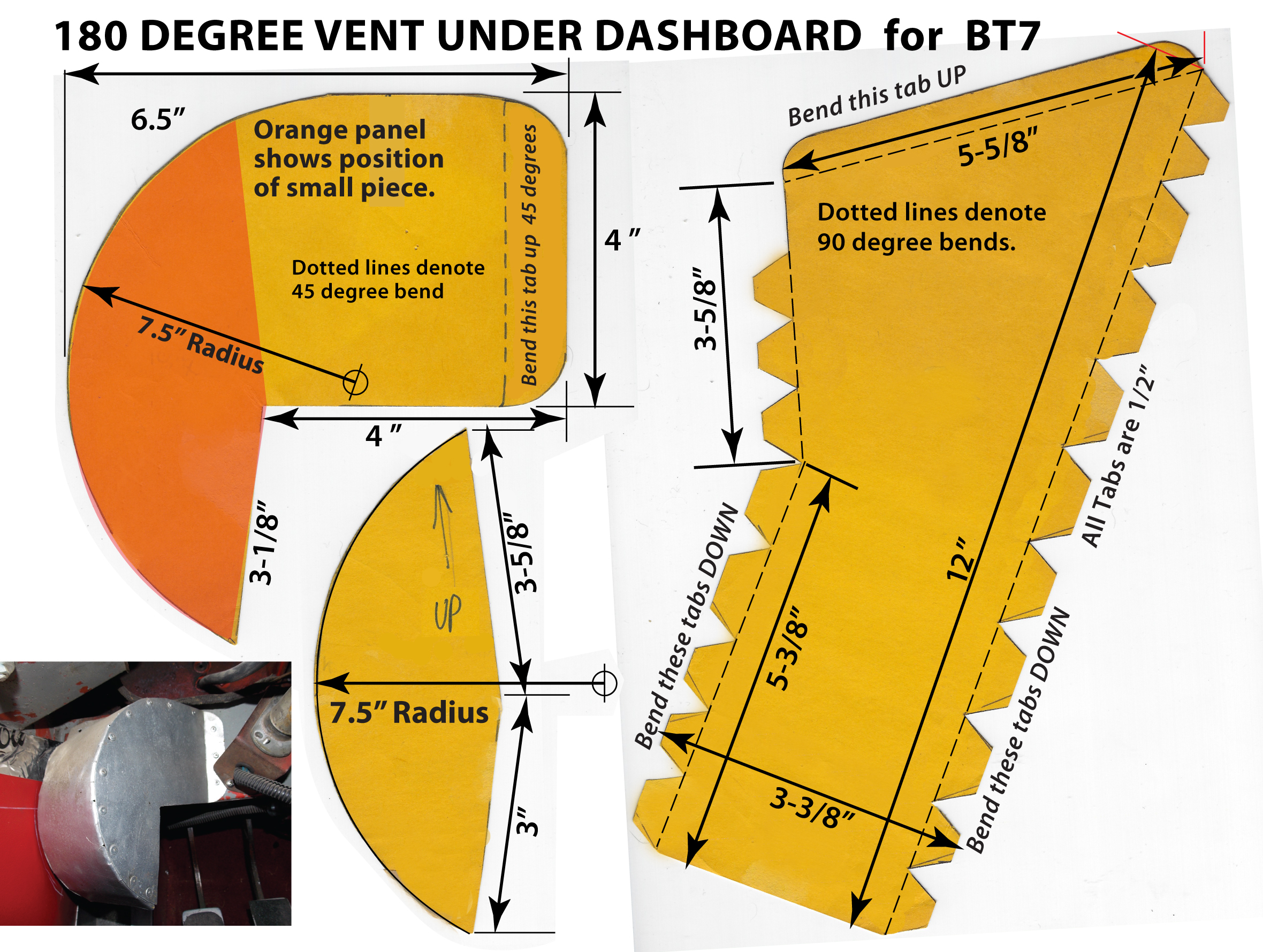

  • PATTERN .jpg
    PATTERN .jpg
    2.3 MB · Views: 307
  • SCOOPS .jpg
    SCOOPS .jpg
    3.8 MB · Views: 299
  • PATTERN .jpg
    PATTERN .jpg
    2 MB · Views: 318
