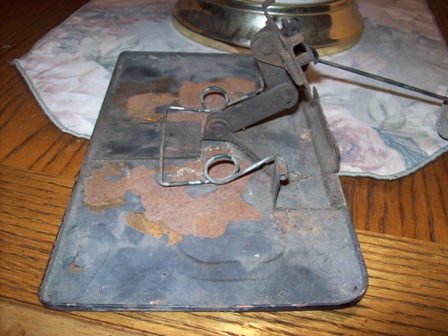

Luke,Funny,I just sat down after working on this same flap at work.Mad at myself because I forgot how hinge at rear is oriented,after freeing frozen hinge pin,and drilling out frozen screw,welding,and getting ready to retap,when there is the perfect pic I need.
Thanks for posting John.Now to reweld the small hinge barrel on one side and one more part restored.
thanks
Tom
