TR4/4A TR4 Fuel Gauge'"light bulb socket" type?

karls59tr

Darth Vader
Country flag
Offline
I'm ready to put a TR4A fuel gauge,fuel sending unit and resistor in my TR3. Tested it on the bench and works good.The light bulb holder on the 4A gauge is a 1"x3/8" metal tube with 3 slits in the side. Anyone know what type of socket and bulb fits in there.? It's a completely different set up on the TR3.


charleyf

Jedi Knight
Bronze
Country flag
Online
In the Moss catalog there is a picture of what you are looking for. Unfortunately it says N/A. Item 78.

https://mossmotors.com/triumph-tr2-3-4/electrical-ignition/wiring-harnesses-misc-electrical.

If you have access to any old behind the dash wiring harness from a TR4-6 you would be able to find one of these. It takes the same screw in bulb as found in the TR3. The difference is that the outer case is solid and smooth . The bulb screws into the holder and then the holder slides into the tube you describe.


Sarastro

Obi Wan
Gold
Country flag
Offline

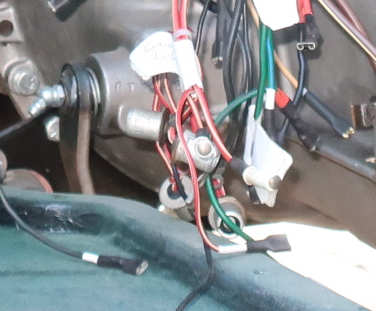

It's a simple, cylindrical socket that takes a screw-base bulb. It just slides into that cylinder on the back of the instrument. Here is one picture, taken while I was installing my harness, showing a cluster of them; sorry, it's the best I have. The bulb was originally type 997; I'm using no. 1449, which is easier to find.


glemon

Yoda
Country flag
Offline
The bulb, admittedly the easy part, is a 12 volt e10 screw base, lots of options out there but you need one where the head or bulb part fits in the socket in the gauge.


Rut

Obi Wan
Gold
Country flag
Offline
Any idea where to get one?

Karl,

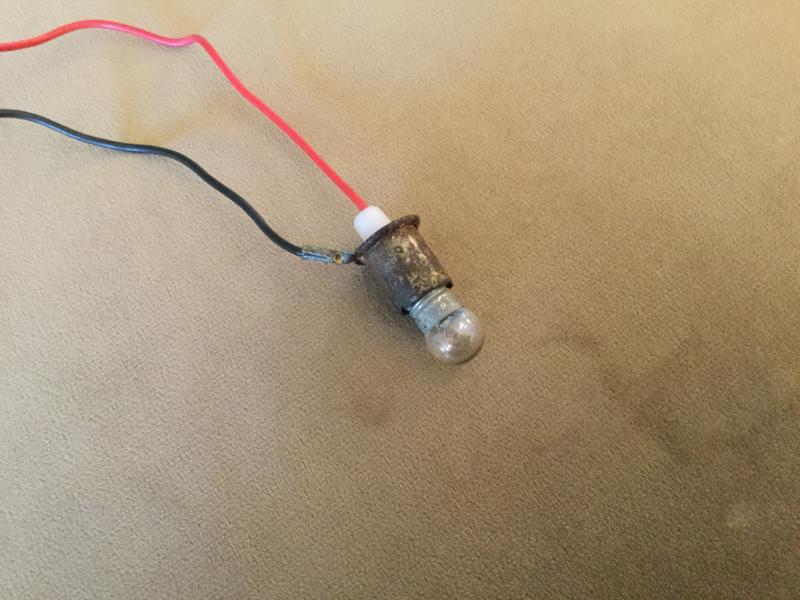

PM your address...I have one that I just tested and it’s a 2 wire style, just cut off the ground.
Rut


Attachments

  • 1EBBAB4E-FB2B-47F5-883A-DD20D82C302A.jpg
    65.4 KB · Views: 21

Rut

Obi Wan
Gold
Country flag
Offline
Karl,
Just checking in to see if you received the bulb and bulb holder and to check on your progress.
Rut

OP
K

karls59tr

Darth Vader
Country flag
Offline
Karl,
Just checking in to see if you received the bulb and bulb holder and to check on your progress.
Rut
Hi Rut I haven't received it yet but I'll let you know when it arrives. Canada Post can be slow once it gets to the border. Does the gauge on the TR4 just rely on the the ground at the sending unit? On the TR3 I've heard it's necessary to ground the gauge as well?
Karl


Rut

Obi Wan
Gold
Country flag
Offline
Karl,
Im concerned about the affect that Covid 19 might have on packages crossing the boarder. If the gauge is grounded you can use the ground wire or use the gauge.
Rut


Rut

Obi Wan
Gold
Country flag
Offline
Karl,
Looks like it’s scheduled to be delivered on March 25th...
Rut

OP
K

karls59tr

Darth Vader
Country flag
Offline
That's OK I'm still tinkering around with the tie rod end and tie rod then I'll get to the gauge and bulb. Are you doing anything to your TR4?


Rut

Obi Wan
Gold
Country flag
Offline
Karl,
Funny you should ask...I’m actually in the process of selling some of my cars. I’m at the age of freeing my family from some of my ‘hobbies’, LBCs, guns, etc. I currently have 2 TR6s, 1 TR4 short bulge, 4 TR4as, 1 MGB, 1 Bugeye and a 1975 IH Scout. I have 1 more resto/restomod left in me and that will be a TR4a and I’ll keep the Bugeye and MGB.
Good luck on your tie rod and tie rod ends!
Rut
