TR2/3/3A TR3A, Starter motor

Share this page

G

GrahamW

Freshman Member
Offline
I have a TR3A with an early "bull nose" starter. There was a rattle when the starter was operated which sometimes carried on for a few seconds after the engine fired. Sounded to be comming from the strater and I assumed the pinnion was jamming on the ring. Took off the starter, flywheel and ring look good. Starter looks OK except on the shaft inside the Bull nose" there are two very loose fitting thick washers / spacers and a machined grove in the shaft. Looks as though something is missing.

Any suggestions?

GrahamW

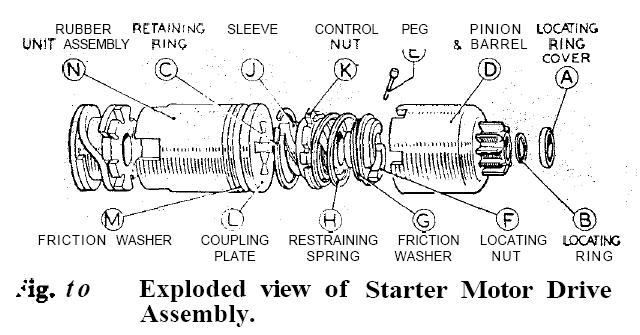

There is supposed to be a "locating ring" in that groove, and a collar that fits over it to lock it into place ("locating ring cover" in the diagram). One of your "thick washers" might be the collar, or it may be that some misguided rebuilder has tried to replace the collar with the wrong part.

Without the ring, the armature can drift towards the flywheel and allow the gear teeth to drag, which may be your rattling sound.

The collar is supposed to ride against the end housing with some small clearance, something like .005" to .010". ISTR one of my original starters actually had some shims at the other end, to limit the end float of the armature.


Attachments

  • 22246.jpg
    50.7 KB · Views: 285
Thanks a lot. This is a great help. I've searched on line but cannot find parts for the early starter. Moss only do a modern replacement. I've got a few emails out but $200 + for a replacement is a lot for replaceing the locking ring. Any ideas?

Thanks again

Graham

It's kinda like a snap ring but just a plain ring of metal, split and somewhat springy. If you had one to take with you it might be possible to find something at the hardware store that would work. I have enver seen one on another TR part but I haven't seen everything.

Sorry, I don't know of a source either. I made what appeared to be an adequate substitute, out of heavy iron wire (probably old coat hangar, but not sure offhand). It needs to be large enough diameter that the cover fits snugly over the wire with the wire bottomed in the groove, but of course no larger than that.

Since you're in CA, you might try these guys:
CAE, Inc.
14710 Lull Street
Van Nuys, CA 91405
818.442.9884

NFI, but the father of the owner's has Lucas rebuilding certificates/accreditations.
They rebuilt my TR6 starter and alternator for a reasonable price; it helped they're 10 minutes from work. Otherwise you might try a local rebuilder in your town.
