TR2/3/3A TR3 tie rod ends

mapleaf

Senior Member
Country flag
Offline
I'm trying to identify some spare tie rod ends and was wondering what the differences are between the inner and outer ends? Thanks


Don Elliott

Obi Wan
Offline

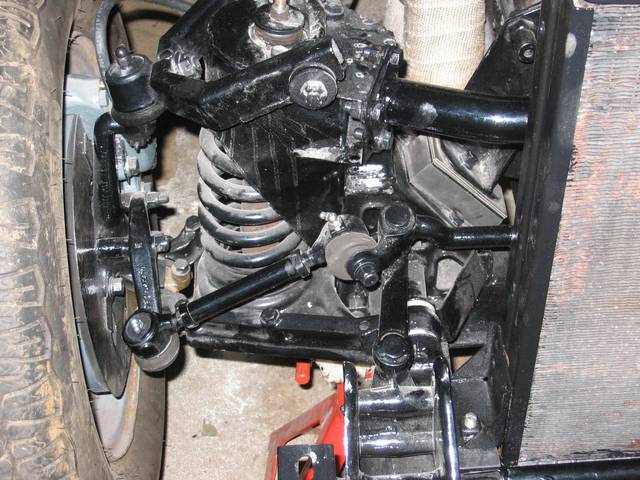

Check the positions in the photo for the grease fittings. The outer tie rod end has the 90 degree Zert sticking out the round top. For the inner tie rod end, the 90 degree Zert is out the side of the casting and is aiming upwards and facing a bit to to the front. Set the inlets for all your grease fitings so you can easily reach them next time you grease them with your grease gun.


Attachments

  • 22003.jpg
    64.4 KB · Views: 164

TR3driver

Great Pumpkin - R.I.P
Offline
They also have opposite-handed threads, although I forget offhand which is which.

M

Member 10617

Guest
Guest
Offline
Could you circle or otherwise mark the two zerts in the photo?


martx-5

Yoda
Country flag
Offline
LexTR3 said:
Could you circle or otherwise mark the two zerts in the photo?

I assume you mean for the tie rod ends...


Attachments

  • 22007.jpg
    73.3 KB · Views: 138
OP
M

mapleaf

Senior Member
Country flag
Offline
Thanks guys.
Don, from your answer and pic it would appear that:
- the left and right outer ends are the same
- the left and right inner ends differ in that the grease fittings are on
opposite sides, allowing for easy access on the top side, when fitted.
Some of my spare ends are the ones without grease fittings so by comparing threads with the zerk type ends it looks like the inners are right hand thread and the outers are left hand thread.
If I've got this right, I can now mark them and I'm done.
Thanks again.


Don Elliott

Obi Wan
Offline
That photo is a bit dusty, but was taken about 2005 or 2006 as I was finishing the restoration of a late TR3A for Frank in Toronto.


Attachments

  • 22012.jpg
    47 KB · Views: 102
