TR2/3/3A TR3 Scuttle Vent Disassembly Problem

[luke44]

Can someone help me figure out how to get a broken vent pull rod apart from the scuttle vent assembly mechanism? It looks straight forward but it won't budge. Here is the part where I am stuck:

My guess was the pin holding the rod must be 2 pieces - I did discover one end of the pin is threaded, but I don't know how to split them apart....

I have checked these 2 other posts on the subject but no answer.

https://www.britishcarforum.com/bcforum/u...ions#Post664353


https://www.britishcarforum.com/bcforum/ubbthreads.php/ubb/showflat/Number/685496/
Searchpage/2/Main/69522/Words/tr3+vent/Search/true/scuttle_vent_linkage#Post685496

Thanks in advance,



[luke44]

Never mind - I've got it - the set screw on the other side has the head broken off (the joys of taking over someone elses project). I drilled it out and I'm good to go....



[martx-5]

Glad I could help! :thumbsup:



[Don Elliott]

This might help.



[Don Elliott]

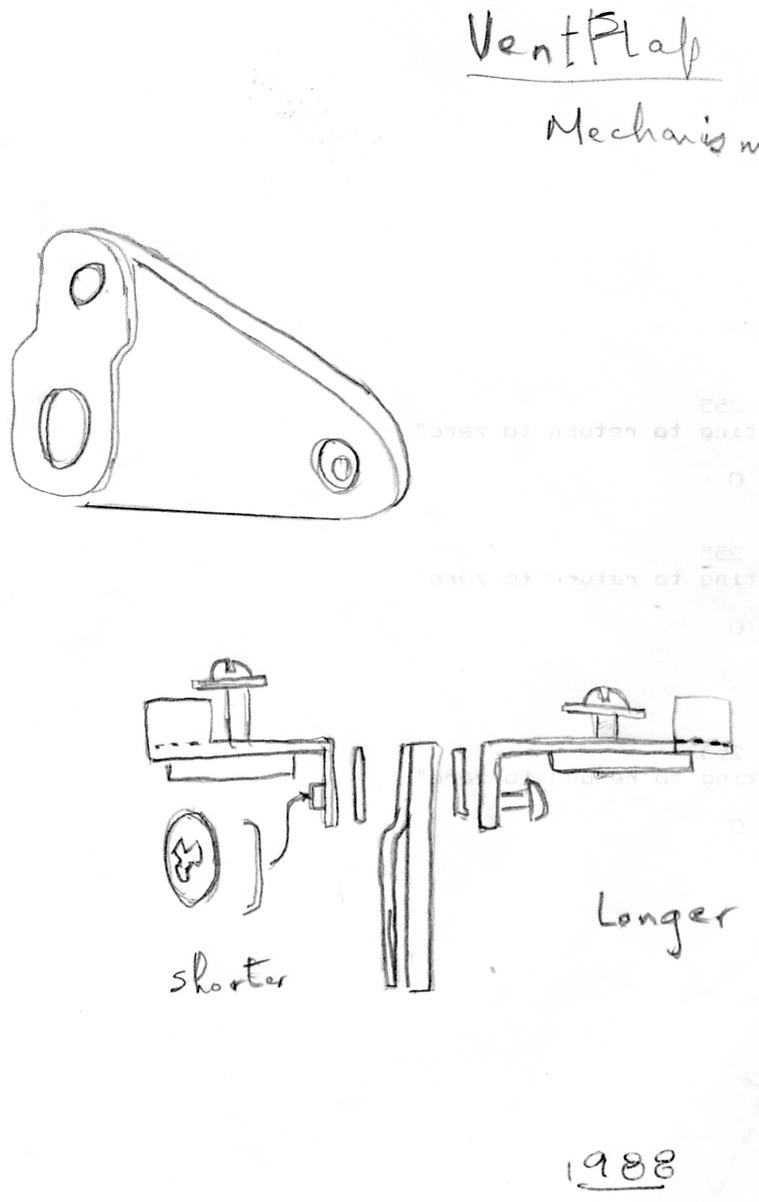

And this from Johannes in Germany



[luke44]

Don - awesome pix! Thanks so much. Like finding the answer to the Rubiks cube!!



[houleyh]

Hi,

Trying to put back the vent lid together, I realize that I am mission 2 parts: The triangle with 3 holes and the attachement of this piece to the car. As it is no longer available, does anyone have dimentional drawings of those parts so I could make them?

Thanks
