Roger
Luke Skywalker
Offline
I agree with Jack - great thread.
Now, I'm by no means a Spridgeter, but I think I see some misunderstanding. Not that there's a heck of a lot of real understanding anyway; no less an authority than Alan Staniforth wrote that anti-roll bars were something of a black art.
The bar must be free to rotate in its bushings. I think that's what the early poster meant by slipping around, not moving laterally. And I don't think from a functional viewpoint it matters whether the locators are both on the outside or both on the inside, or even on both sides of one bush, just as long as they restrain the bar from sideways movement.
As for what they do, they modify the roll stiffness at the end they're fitted. If the chassis is reasonably stiff in torsion, this will affect the other end, and with a unibody like the Spridget that works.
They don't change total weight transfer - they can't if you think about it. Imagine 2 otherwise identical cars in a corner, at the same speed. One has very stiff springs, the other very soft. One rolls more than the other, and transfers weight to the outside wheels via the springs. The other transfers the same amount of weight but via the suspension components - wishbones or what have you. (If the suspension is a cart spring, then in one case is by vertical load, in the other by lateral load). To express it crudely, in one case there's more push down on the wheel, in the other there's more push sideways.
Now, I'm by no means a Spridgeter, but I think I see some misunderstanding. Not that there's a heck of a lot of real understanding anyway; no less an authority than Alan Staniforth wrote that anti-roll bars were something of a black art.
The bar must be free to rotate in its bushings. I think that's what the early poster meant by slipping around, not moving laterally. And I don't think from a functional viewpoint it matters whether the locators are both on the outside or both on the inside, or even on both sides of one bush, just as long as they restrain the bar from sideways movement.
As for what they do, they modify the roll stiffness at the end they're fitted. If the chassis is reasonably stiff in torsion, this will affect the other end, and with a unibody like the Spridget that works.
They don't change total weight transfer - they can't if you think about it. Imagine 2 otherwise identical cars in a corner, at the same speed. One has very stiff springs, the other very soft. One rolls more than the other, and transfers weight to the outside wheels via the springs. The other transfers the same amount of weight but via the suspension components - wishbones or what have you. (If the suspension is a cart spring, then in one case is by vertical load, in the other by lateral load). To express it crudely, in one case there's more push down on the wheel, in the other there's more push sideways.
bugimike
Yoda
Offline
Here's a good simplification of how it works!
(For Jacks eyes only /bcforum/images/%%GRAEMLIN_URL%%/jester.gif ) the text reads:
"In turns,centrifugal force transfers some of the car's weight to the outside wheels. If the wheels are independently suspended, there is nothing to counter this tendency and the car leans towards the outside of the turn, making steering and handling difficult in extreme cases. To minimize this effect, the left and right hand A-arms are often linked by a stabilizer bar. Essentially a torsion bar that runs across the car, the stabilizer bar twists as the car leans, resisting the motion and keeping the car relatively level. It also restricts the independent action of the wheels somewhat. Stabilizer bars are also called: anti-sway bars, sway bars, anti-roll bars and roll bars."
"View from above (left) shows a suspension with a stabilizer bar, McPherson struts and lower A-arms. This setup may cost the manufacturer less than the more complicated double A-arm system. The stabilizer bar transfers some of the braking forces from the wheels to the frame and also resists body roll in turns."
Hope that helps Jack!! /bcforum/images/%%GRAEMLIN_URL%%/thumbsup.gif
(For Jacks eyes only /bcforum/images/%%GRAEMLIN_URL%%/jester.gif ) the text reads:
"In turns,centrifugal force transfers some of the car's weight to the outside wheels. If the wheels are independently suspended, there is nothing to counter this tendency and the car leans towards the outside of the turn, making steering and handling difficult in extreme cases. To minimize this effect, the left and right hand A-arms are often linked by a stabilizer bar. Essentially a torsion bar that runs across the car, the stabilizer bar twists as the car leans, resisting the motion and keeping the car relatively level. It also restricts the independent action of the wheels somewhat. Stabilizer bars are also called: anti-sway bars, sway bars, anti-roll bars and roll bars."
"View from above (left) shows a suspension with a stabilizer bar, McPherson struts and lower A-arms. This setup may cost the manufacturer less than the more complicated double A-arm system. The stabilizer bar transfers some of the braking forces from the wheels to the frame and also resists body roll in turns."
Hope that helps Jack!! /bcforum/images/%%GRAEMLIN_URL%%/thumbsup.gif
Attachments
tony barnhill
Great Pumpkin - R.I.P
Offline
BUMPED.....

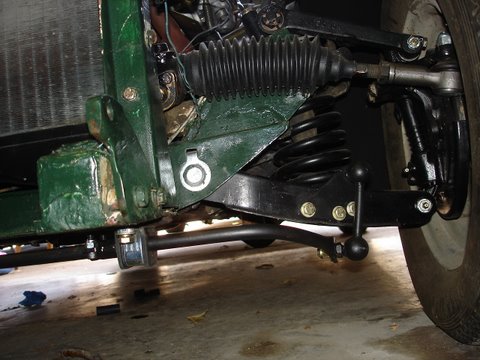

Can somebody go outside & take a photo of how the sway bar attachers to the wishbone/spring pan - there's a photo on the first page of this thread but the bracket's reflecting light so I can't see which way the bolts face.
Can somebody go outside & take a photo of how the sway bar attachers to the wishbone/spring pan - there's a photo on the first page of this thread but the bracket's reflecting light so I can't see which way the bolts face.
tony barnhill
Great Pumpkin - R.I.P
Offline
Thank'e!
tony barnhill
Great Pumpkin - R.I.P
Offline
bump - 'cause I need to look at the photos as I build each side of my suspension.
Trevor Jessie
Yoda
Offline
Do early style spring pans work with later style a-arms?
Trevor Jessie
Yoda
Offline
No, the spring pan themselves are shaped differently. I'm only asking just in case it makes a difference for Tony.
Trevor Jessie
Yoda
Offline
No.. not the springs. The spring pans (ya know... the thing bolted to the bottom of the A-arm with four bolts).
The early ones are more rectangular and I don't know if they will interfere with the reinforcement plates on the late model A-arms.
The early ones are more rectangular and I don't know if they will interfere with the reinforcement plates on the late model A-arms.
