Special Tuning using AF Equipment by Innovative Motorsports

steveg

Yoda
Gold
Country flag
Offline

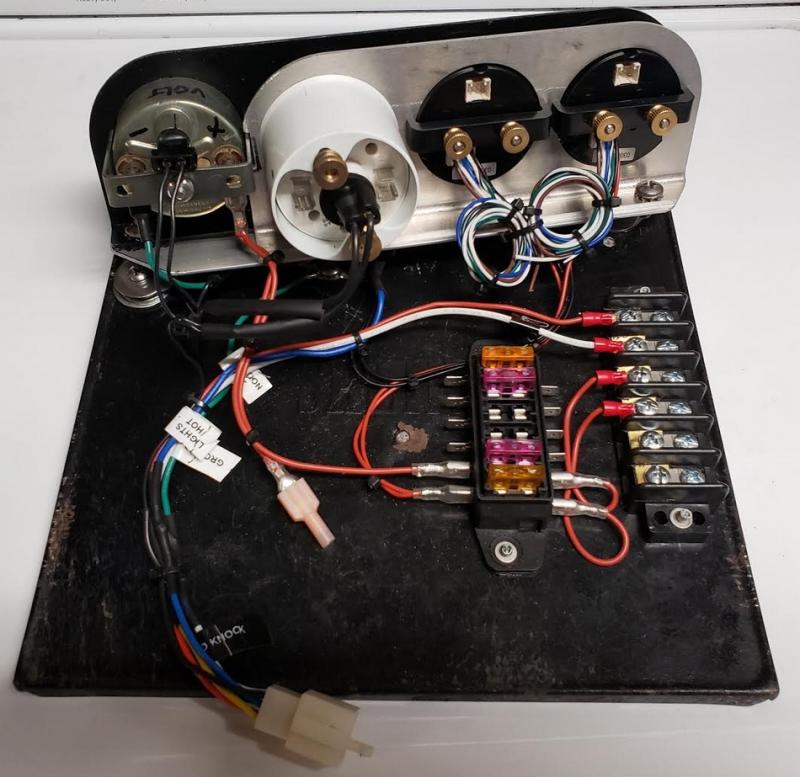

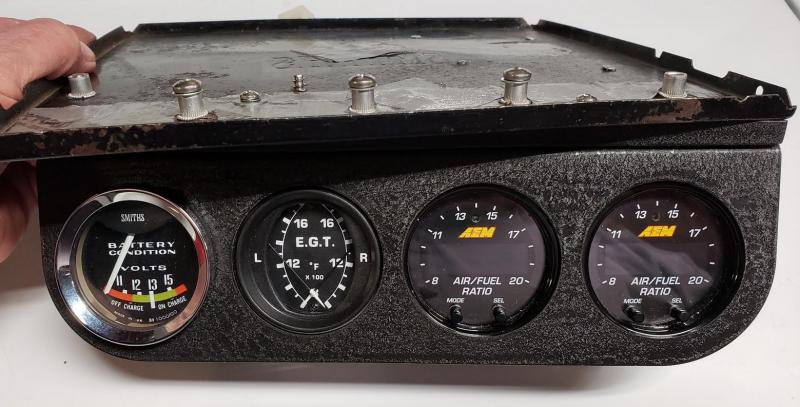

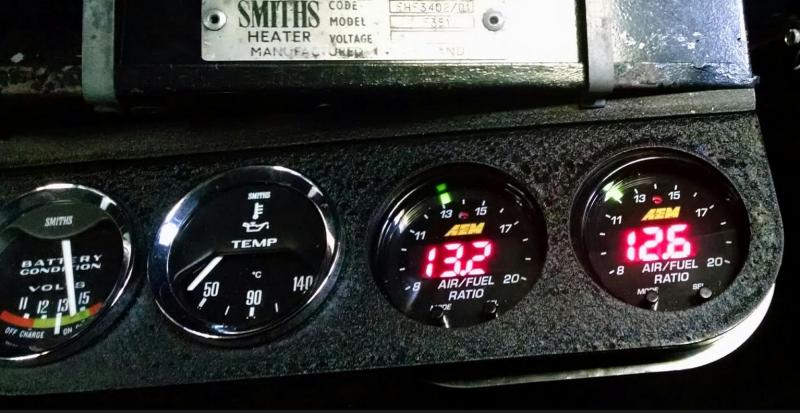

My setup. Dual EGT gauge in the works:



dougie

Luke Skywalker
Country flag
Offline

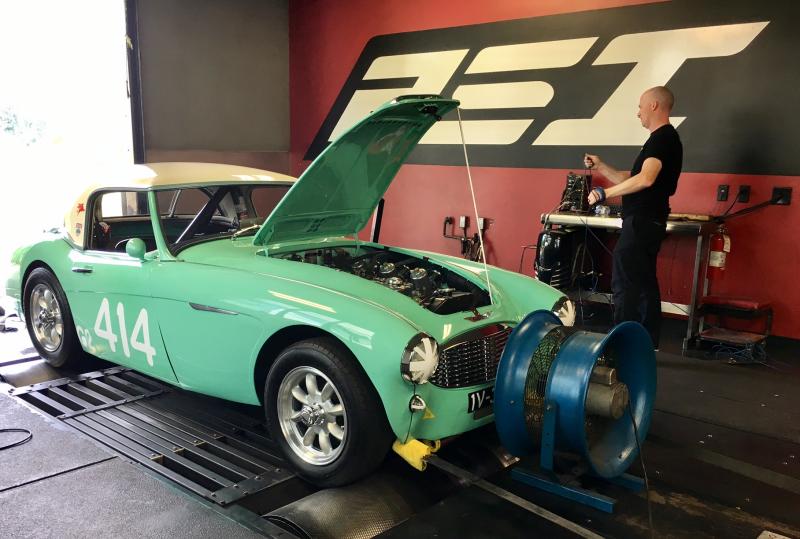

I guess I'm old school.....chassis dyno works for me.

Portland Speed Industries Dyno.jpg


steveg

Yoda
Gold
Country flag
Offline
Steve, what's the difference between a voltmeter and a "Battery Condition" gauge (if any)? Thanks.

Reid, no difference - that's what Smiths called them when they came out. That's a reconditioned gauge as used in Triumphs. I liked it instead of the current one Moss sells because of the vintage look.

Last edited:
OP
Patrick67BJ8

Patrick67BJ8

Darth Vader
Silver
Country flag
Offline
Patrick - thank you for posting the links above. The MG thread is especially interesting. Those are some serious tuners.

What I am thinking is to use the LM-1 to setup my BJ8 to get it to run better.

I overhauled it and went 60 over on the bore and it seems sluggish. My thought I’d to use the LM-1 to get readings at idle and through the cruise and power range and if needed buy special needles for the carbs. I will only be able to get readings by making two or more runs and inserting the probe in each side of the exhaust. My BJ8 is running the same exhaust setup as original, left side for the front three cylinders and right side for the rear three cylinders. The readings would be downloadable to my PC for viewing. I don’t want to add bung holes in the downpipes if I can help it.


John Turney

Yoda
Silver
Country flag
Offline
The LM-1 isn't listed as a current product on Innovative Motorsports website. Typically, oxygen sensors have to operate at higher temperatures than the end of the tailpipe; that's why bungs have to be installed.


steveg

Yoda
Gold
Country flag
Offline
The LM-1 isn't listed as a current product on Innovative Motorsports website. Typically, oxygen sensors have to operate at higher temperatures than the end of the tailpipe; that's why bungs have to be installed.

John, pretty sure this isn't the case. The MG tuners in the thread referenced above are using LM-1 or LM-2 with a 2-foot extension which goes far enough up their single straightish pipe so as to eliminate the possibility of outside air mix. IIRC, Gunson makes such a probe-type AFR sniffer.

Added - Found this:



twas_brillig

Jedi Knight
Country flag
Offline
Any thoughts on a DIY version of the Gunson insertable probe (and having just had my annual physical, kindly avoid remarks about colons and prostate checks). Doug

OP
Patrick67BJ8

Patrick67BJ8

Darth Vader
Silver
Country flag
Offline
John, pretty sure this isn't the case. The MG tuners in the thread referenced above are using LM-1 or LM-2 with a 2-foot extension which goes far enough up their single straightish pipe so as to eliminate the possibility of outside air mix. IIRC, Gunson makes such a probe-type AFR sniffer.

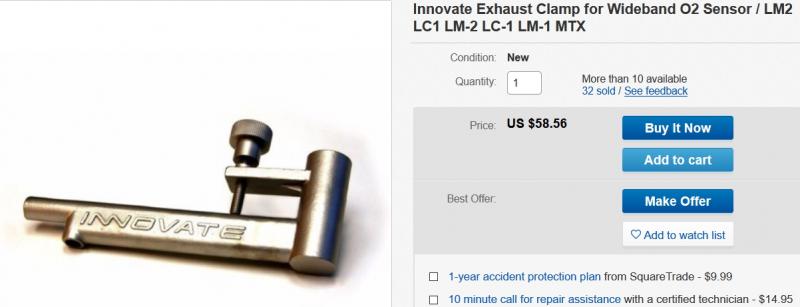

Added - Found this:

View attachment 57270
The LM-1 is discontinued and I have a Healey friend who has one and wants to sell it at a reasonable price low enough for me to think I need it.


HealeyPassion

Jedi Warrior
Country flag
Offline
I'm using a Innovative LC-1 on my EFI car to help with the tune. It's great having real time A/F ratio numbers when your looking at the various combinations.

OP
Patrick67BJ8

Patrick67BJ8

Darth Vader
Silver
Country flag
Offline
I'm using a Innovative LC-1 on my EFI car to help with the tune. It's great having real time A/F ratio numbers when your looking at the various combinations.
Is the LC-1 something that you would recommend for tuning SU’s?


HealeyPassion

Jedi Warrior
Country flag
Offline
Is the LC-1 something that you would recommend for tuning SU’s?

Patrick, I've never tried one on an SU car so can't say for sure. But, I it would certainly seem to be good info to have on any tune... real time A/F ratio info. After all, it's all about the gas/air mix and how well you are burning it (okay, ignition comes into it :tennis:smile:… but you get my drift.


steveg

Yoda
Gold
Country flag
Offline
Patrick, I've never tried one on an SU car so can't say for sure. But, I it would certainly seem to be good info to have on any tune... real time A/F ratio info. After all, it's all about the gas/air mix and how well you are burning it (okay, ignition comes into it :tennis:smile:… but you get my drift.

HP - your video with the AFR meter shows a flat spot at the beginning of a rev.

Am assuming the EFI computer programming can take the info from a data logger and write an AFR curve which will offset the ups and downs for a variety of driving. This is the stuff that drives the SU tuners nuts when they're modifying specific parts of needles for specific needs.


HealeyPassion

Jedi Warrior
Country flag
Offline
HP - your video with the AFR meter shows a flat spot at the beginning of a rev.

Am assuming the EFI computer programming can take the info from a data logger and write an AFR curve which will offset the ups and downs for a variety of driving. This is the stuff that drives the SU tuners nuts when they're modifying specific parts of needles for specific needs.

Steve, yes as I mention... the video was about 15 minutes into it. While it started up amazingly well with little adjustment to the mapping tables in the ECU, there is much to do. The engine, as seen in the video, goes super lean at throttle tip in... all that can be adjusted out with the fuel maps... harder to do with SU's but a key piece of information nonetheless.
