TR2/3/3A Overdrive Wiring

ckeithjordan

Jedi Trainee
Silver
Country flag
Offline
This is primarily for Geo or Barry, but anyone can chime in!

Several years ago, Randall Young (RIP) suggested adding two things to the overdrive circuit: 1) A in-line fuse (AGC 10 or 5) in the brown/white feed from the ammeter and 2) a diode to prevent to help absorb the inductive kickback from the solenoid.

If I understood him correctly on the second part, you would wire the diode at C2 on the relay (in addition to the yellow/purple wire from the solenoid) and a ground point. Is that correct? I was thinking about doing that, with a double spade plug to
accommodate the diode and the Y/P wire, then tie to the screw holding the relay to the battery box underneath. He also said to "point" the diode to ground if +ve or to the relay if -ve. Is there a particular diode current rating I should be considering?

Thanks for any clarification.


Geo Hahn

Yoda
Country flag
Offline
Correct,the diode goes from C2 to ground -- of course 'from C2' means anywhere on that yellow/purple wire.

I did it along the way at a connector on the harness, substituting a double bullet for a single bullet:



This is the diode I used (though by no means the only choice):



The wiring diagram showing the diode for a positive ground car:



Randall actually installed the diode on top of the solenoid, fitting it inside the rubber cap:



For the fuse I just put connectors on a fuse holder to fit it between the brown wire and its lug on the relay (C1):





All I can offer is 'what I did' - no theory or tech explanation. I just followed Randall's instructions.


DavidApp

Yoda
Country flag
Offline
Same here.
This is how I did it. Works so far and the fuse let me know that the solenoid was not switching from pull in to hold in by blowing. Got a new solenoid.

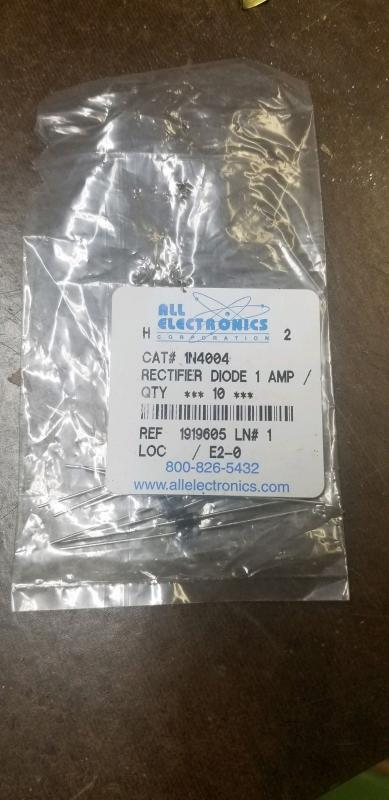

Diode pack s.jpg
The diode I used. It looks smaller physical than Geo's diode.

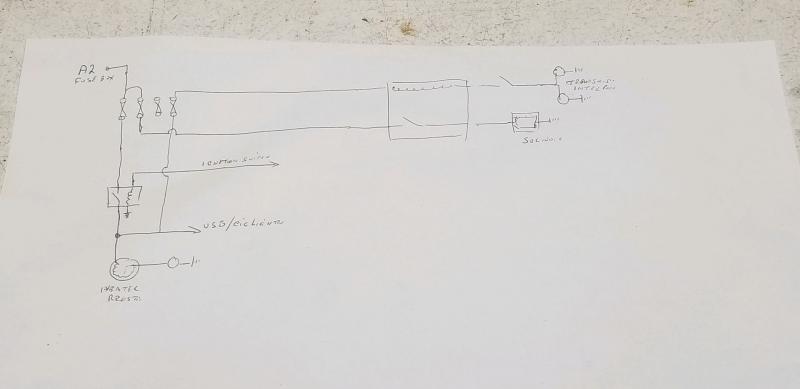

OD wiring diagram s.jpg

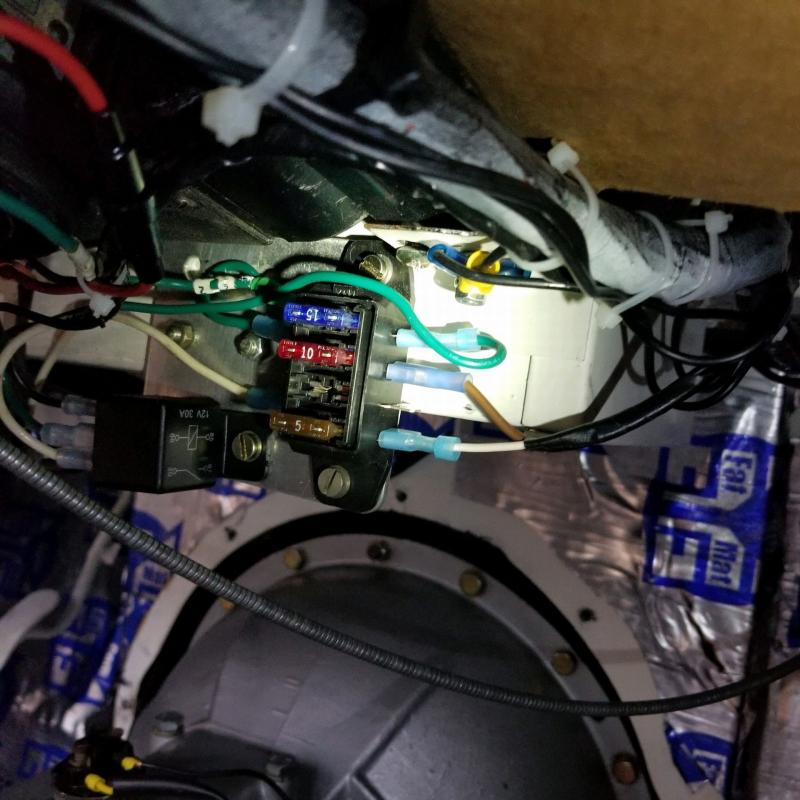

Fuses and Relay.jpg
The 10 amp fuse is for the OD.

David


Sarastro

Obi Wan
Silver
Country flag
Offline
Be sure that the cathode of the diode--the end with the line around the diode's body--is connected to the solenoid, with the opposite end grounded. If you get it wrong, you'll find out really fast, but it may take a while to get the burned smell out of the car.


Geo Hahn

Yoda
Country flag
Offline
Be sure that the cathode of the diode--the end with the line around the diode's body--is connected to the solenoid, with the opposite end grounded...

That is true if the car is negative ground. The OP has a TR3 which will be positive ground unless it has been changed.

OP
ckeithjordan

ckeithjordan

Jedi Trainee
Silver
Country flag
Offline
Yes, my car is negative earth, so the cathode end is pointed to the relay at C2, with the Y/P wire.
