TR2/3/3A Need Pic of a Post TS60000 Occasional seat Please

[Got_All_4]

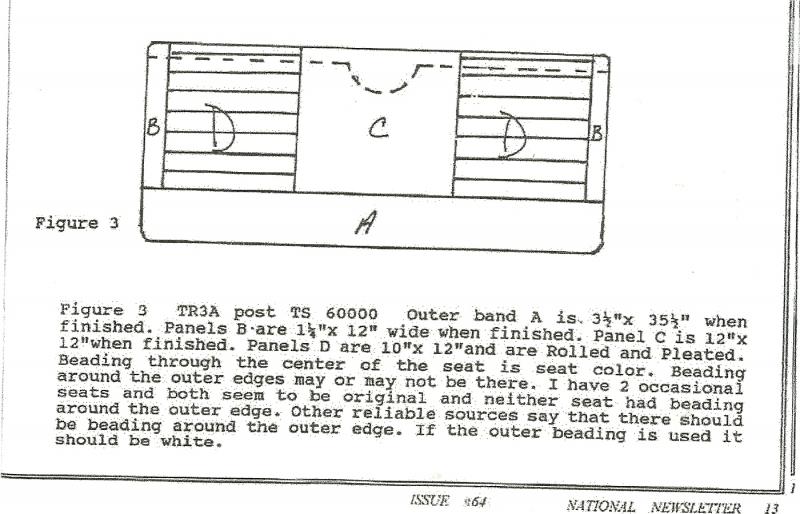

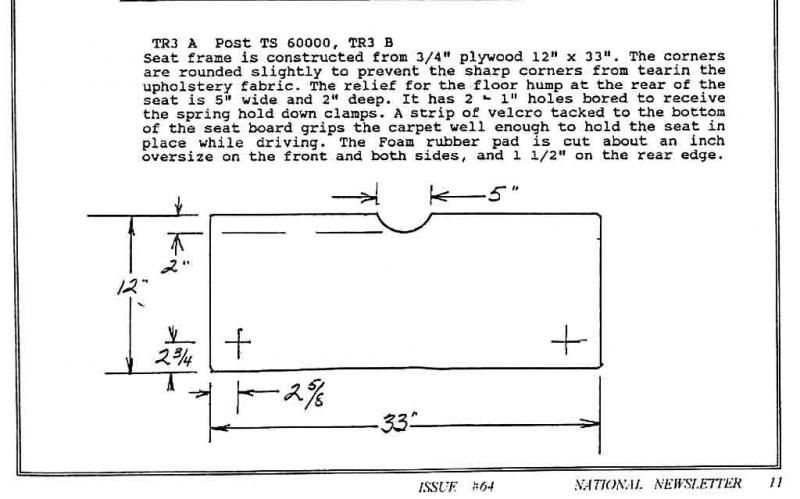

Getting ready to take my stuff on Friday to the upholster to start on my occasional. However I lost my pcs of the correct on. I have these drawing but the measurements don't make since. how can the board be 12" wide and one panel be 3 1/2" alongside a 12" panel? Need some quick help.



[BobbyO]

It appears the plywood backing is smaller than the foam seat. After all, you don't want the plywood digging into you as you sit in the seat (if you could do that). From your first pix, it says the front of the foam should be about an inch larger and the back an inch and a half. That makes up two and a half of the three inches and a half you are looking for. Maybe you could fudge a half inch on the front and back to get the desired dimensions. After all, it does say "about" and inch in the front. Just my thoughts.



[Got_All_4]

Thanks. Looking for some good pics since there worth a thousand words.



[mgedit]

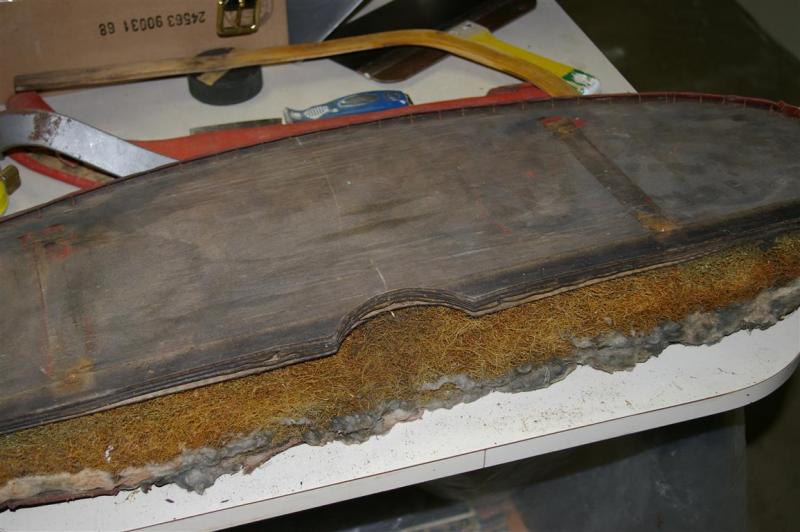

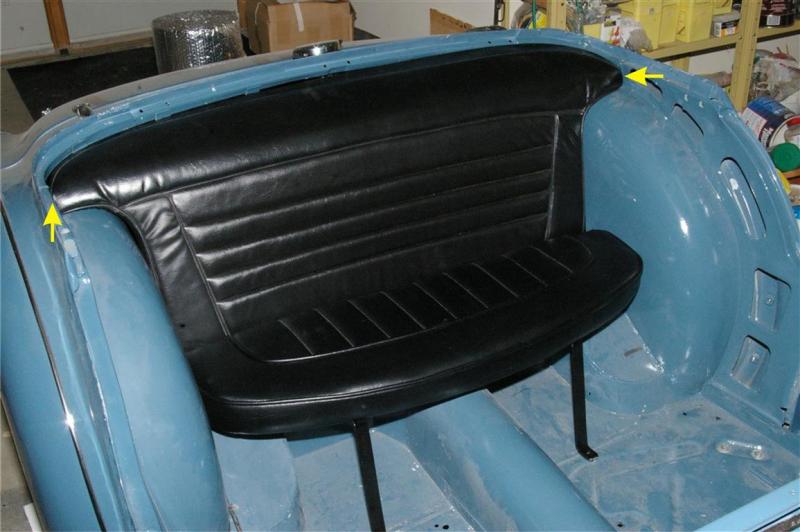

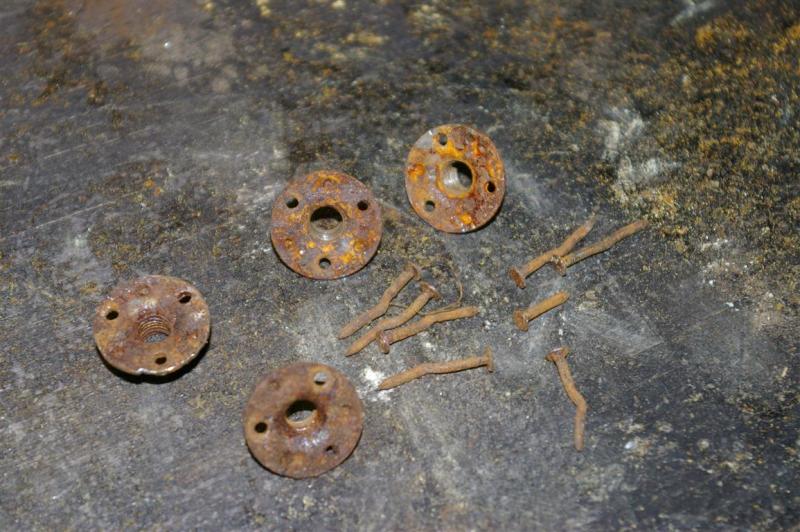

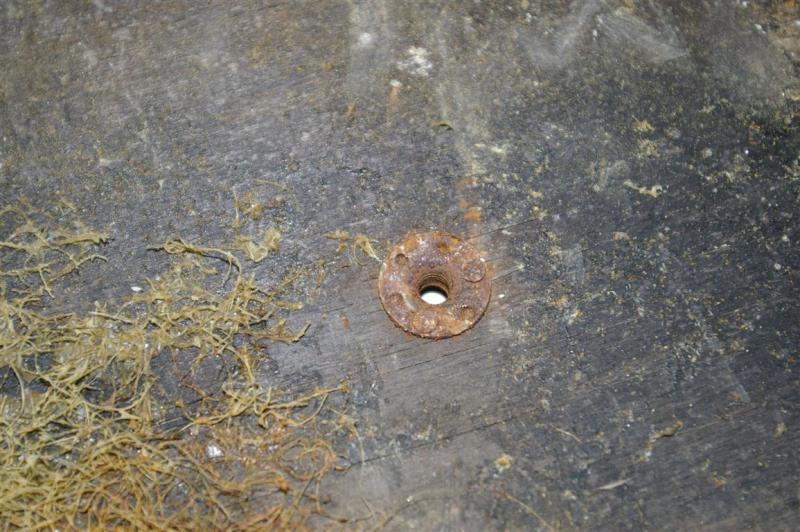

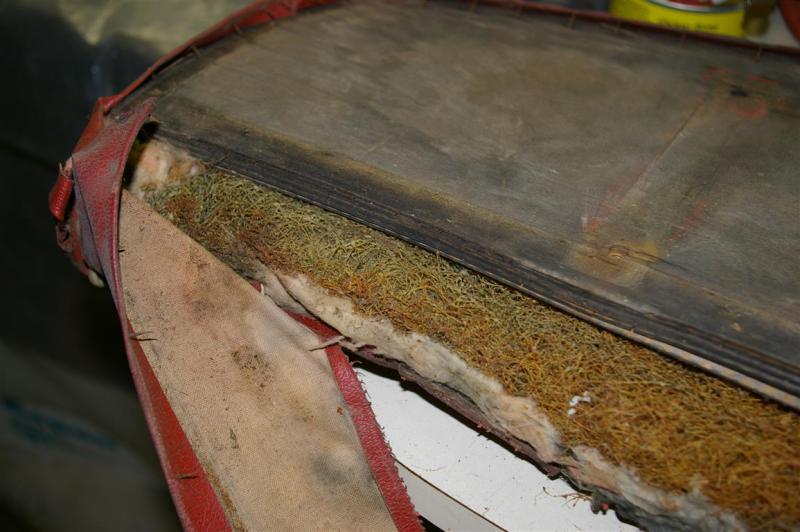

Unfortunately mine is early car so quite different, but perhaps these will help a little. Cheers, Mike



[Got_All_4]

Thanks they are quite different. Nice job tough!



[croz]

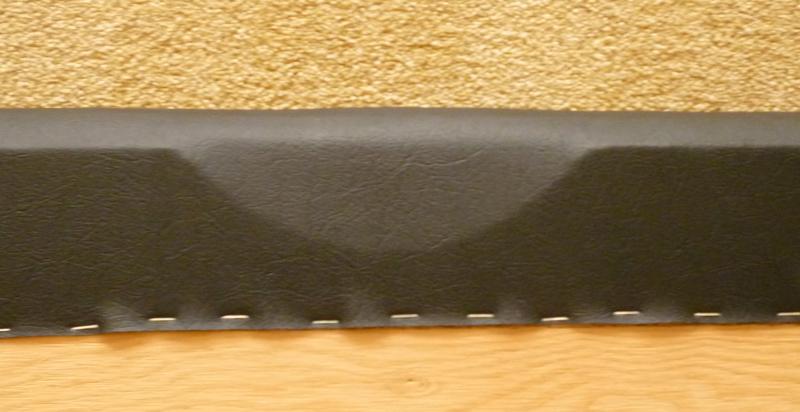

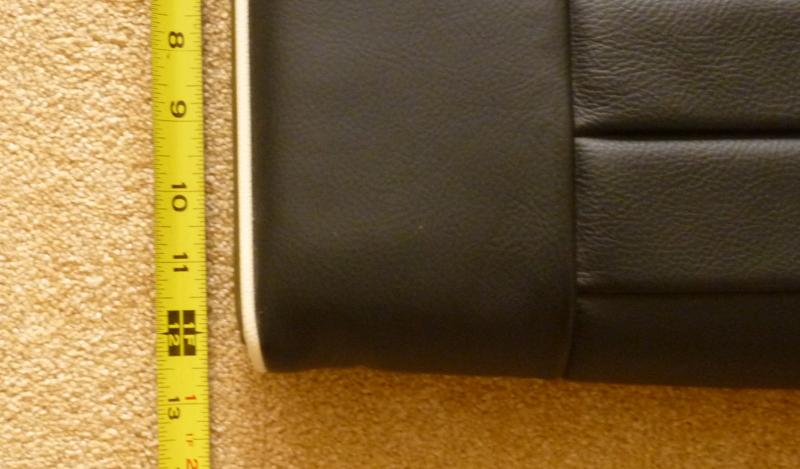

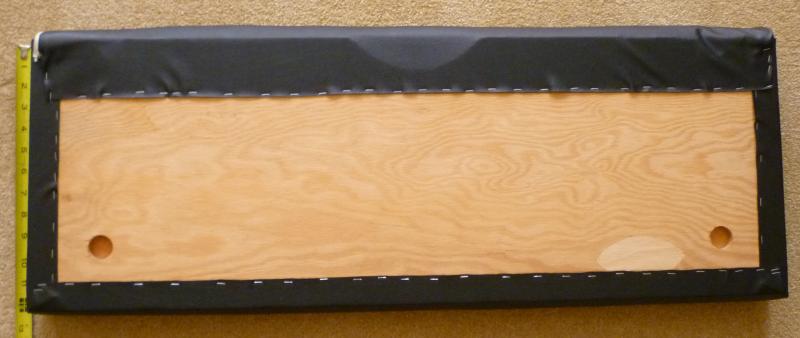

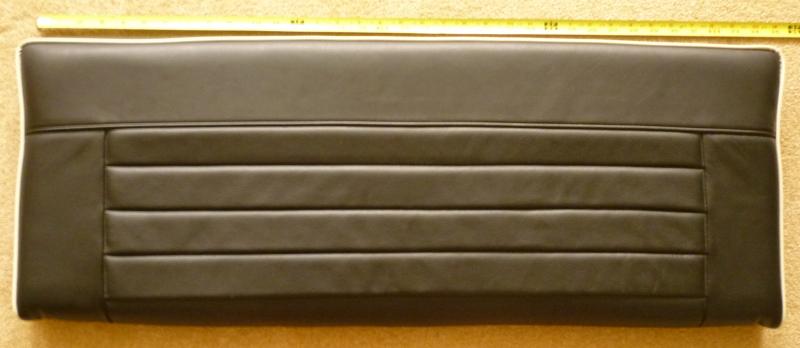

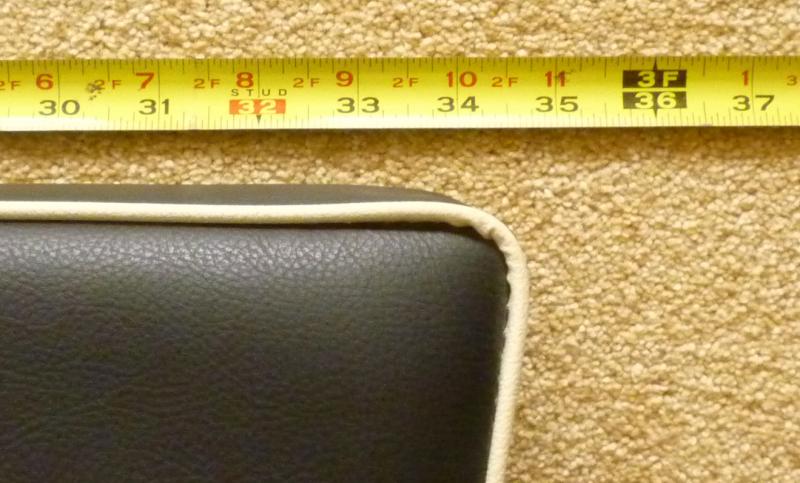

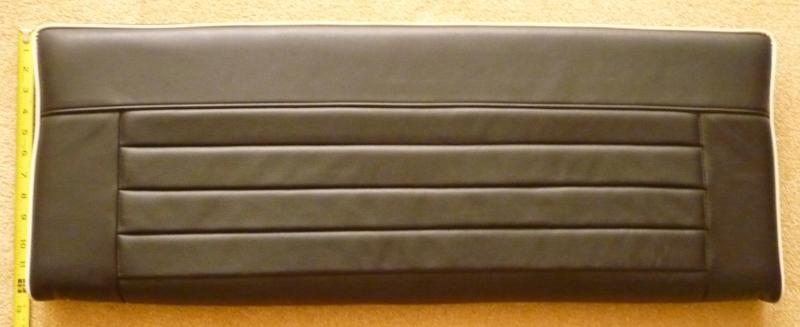

Attached are some photos of my virtually unused rear seat. I hope this helps.
