I Need Rotisserie plans for midget

Share this page

R

RaserX

Senior Member
Offline
Like the title says. I'm looking for plans to make brackets for the front an rear of my midget. I'm goj to use heavy duty engine stands for the base . Just looking for a design to fabricate for the mounting brackets. It can't be that hard... I'm just being lazy... Lol

I made my whole rotisserie out of wood. I just cut a couple 2x4's to length and ran bolts. (i may have doubled up the ends to clear the body)

Hey JP,
2x4s will support whole car ( minus engine, rear and trans)? Got any pics? Especially, how you mounted rear end of car?

I had no problem. Let me see what I can find pic wise. I'll look tomorrow.

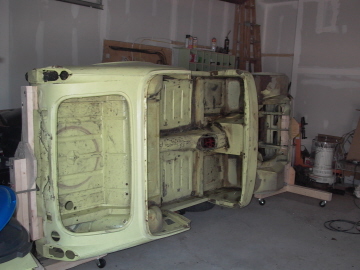

Not a great picture but I hope it gives you an idea. I did draw up plans of sorts. If you are interested, PM me you email and I'll send them.


Attachments

  • 29378.jpg
    50.9 KB · Views: 379
JP your a genius!

That is awesome! I see the basic premis but would like the see you plans.

Simple, elegant and inexpensive. The trifecta.

RaserX said:
JP your a genius!

That is awesome! I see the basic premis but would like the see you plans.

Simple, elegant and inexpensive. The trifecta.
Click to expand...

Thank you Thank you Thank you very much. (could you now please tell my daughter. :jester: )

seriously, PM me your email and I'll send it along.

If you don't need to have the body sitting at a particular angle you could do like I did and make use of the the plans on Gerard's web site. This is a way to have the car upside down or on its side.

https://tinyurl.com/8bbrttu

I made mine with wheels so I could move it around. There are some photos of mine in my Webshots.

https://tinyurl.com/926ehp8

You make a good point Nelson, these cars are light enough that many different things will do including a mattress or some old tires to put it on its side. BTW not to hijack the thread but I hadn't seen those pics before - I didn't realize how big a job that restoration was - amazing! and all the more so for how beautiful it is now.

Thread not hijacked... But, Nelson "sir" get some sun on those legs....( Teasing).

Seriously though Nelson, is there a significants to your stripes? Historical or whimsical? I like them and most excellent job on the car. Top notch.

We now retun you Back to the thread:

JP what would you guestimate the weight of the body shell?

300 pounds less doors hood & trunk. Two of us carried it onto the trailer to be media blasted. And, I put it on the rotisserie myself one end at a time.

Wow, I knew they didn't weigh a lot. But, not many three hundred pound car shells out there that I know of. At least it will be easily moveable.

Hey custom,
That's an interesting design. I like the winch lifted ends. They can raise and lower each end as needed. Cool.

RaserX said:
Hey custom,
That's an interesting design. I like the winch lifted ends. They can raise and lower each end as needed. Cool.
Click to expand...

Yeah. Not mine, btw, I an just a link hoarder. What I like is you can raise it and put the car on saw horses to remove the end supports for spot work in this areas, then reattach, raise, remove saw horses and lower to rotation. Pretty cool. I was planning the dual engine mount set-up but this wooden one looks more versatile.

Hi folks. I am new to midgets and really appreciate the mind share here. Can you elaborate on the actual attachment to the car, front and back. Thanks!!

Pmohn7777 said:
Hi folks. I am new to midgets and really appreciate the mind share here. Can you elaborate on the actual attachment to the car, front and back. Thanks!!
Click to expand...
we

welcome! For mine (2X4's) I just bolted a 2X4 to the bumper mounts.

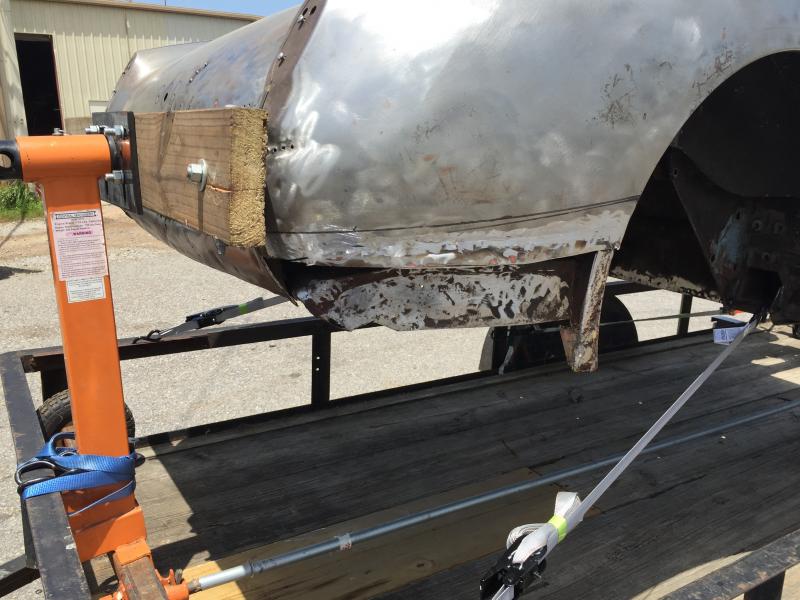

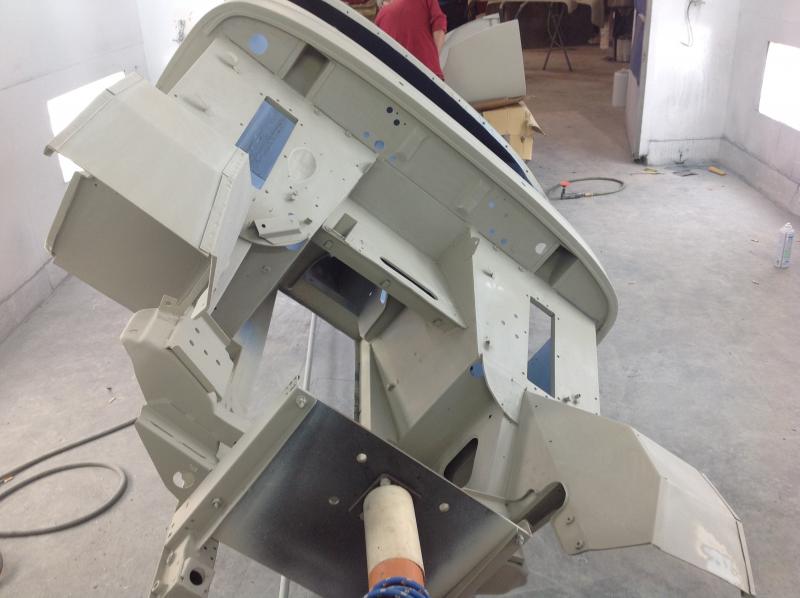

I used 2 cheap HF engine stands and mounted one to a 2x6 bolted to the rear and one bolted to a steel plate attached to the radiator uprights. I used a piece of conduit to hold the bases together, but a piece of 1x2 will work just as well. I also mounted HF rubber tires on the engine stands so it would be mobile and delivered it to my painter that way.
Rut


Attachments

  • FE50A999-96B1-42DC-8EC8-C5F35D163DE2.jpg
    72.3 KB · Views: 177
  • FED5DD22-7005-42CF-90CA-E6A4BF5DA92C.jpg
    49.8 KB · Views: 180
