Fuel pipe runs BJ8

barnman

Senior Member
Country flag
Offline
Good evening, anybody got any links to pics of the pipe runs to and from the SU fuel pump.
I am restoring the BJ8 from ground up so any help appreciated.
Thanks.


BJ8Healeys

Jedi Warrior
Country flag
Offline

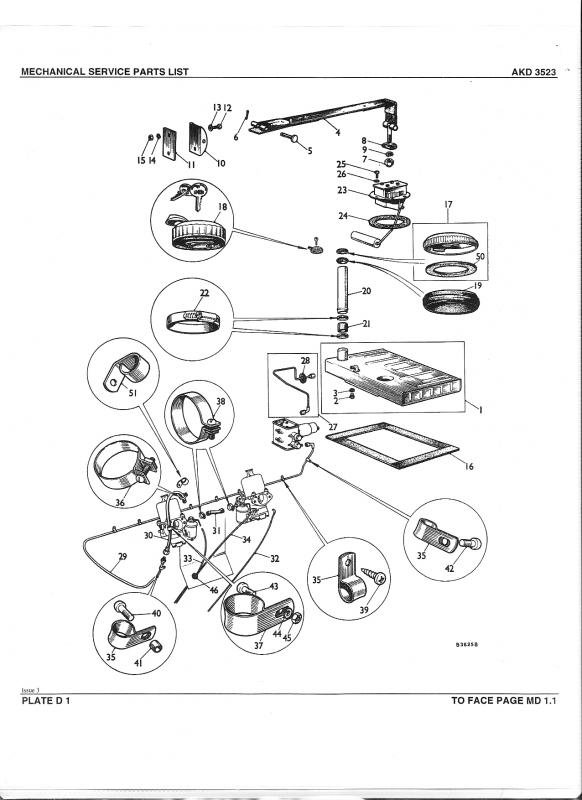

barnman, would this help?


Attachments

  • fuel line routing.jpg
    fuel line routing.jpg
    59 KB · Views: 61
OP
B

barnman

Senior Member
Country flag
Offline
Hi, thanks for that. I've seen similar which are slightly generic and was looking for a little more detail preferably pics from underneath.It certainly confirms what I know so thanks again!!Looking more closely it gives a fair idea of the shape of the pipe from tank to pump!
Regards Alan
