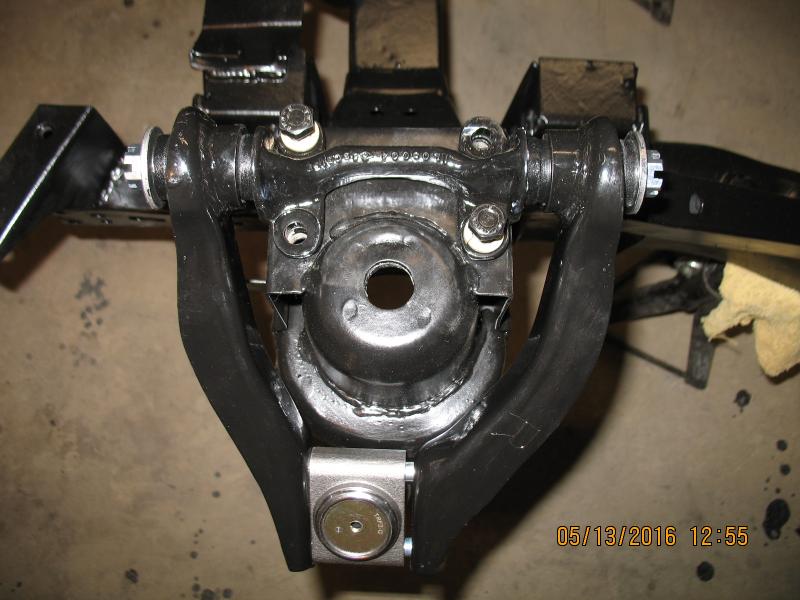

Before I proceed I wanted to confirm that I have the upper wishbone arms and the fulcrum oriented correctly. The photo is of a TR4A left (driver) side. My Ball manual shows this arrangement with the curve of the fulcrum "around" the shock bolt hole and the long wishbone arm to the rear. With this arrangement the "R" on the arm is up and I thought that indicated the right side arrangement. Appreciate any help on this.
-
Hey Guest!
British Car Forum has been supporting enthusiasts for over 25 years by providing a great place to share our love for British cars. You can support our efforts by upgrading your membership for less than the dues of most car clubs. There are some perks with a member upgrade!**Upgrade Now**
(PS: Upgraded members don't see this banner, nor will you see the Google ads that appear on the site.)
TR4/4A confirm upper wishbone arms
- Thread starter jmcfly
- Start date
Share this page
charleyf
Luke Skywalker
Offline
You need to remember that the front (left) arm on the left side is the same as the front (right) on the right side. So having a R or L does not seem practical. When you put the lower trunnion in place everything should line up all of the way down. If it is skewed to one side then the top would be wrong.
Charley
Charley
My concern is the fulcrum really. The way in which it faces the shock bolt. The "Ball" manual shows it specifically the way I have it for a 4A. Images I've seached, and those posted are both ways. Is the 4A different and which is correct, the fulcrum curved around the shock bolt or away?
charleyf
Luke Skywalker
Offline
It curves around the shock bolt. Same for TR3-4-6. Your first picture is correct.
Charley
This is a very exhaustive and comprehensive discussion of the fulcrum pin orientation on TR4A cars and why the difference of opinion and in fact the position. Thanks for all the help.
Jamie
https://www.tr-register.co.uk/forums/index.php?/topic/17530-upper-fulcrum-pin-tr4a-front-suspension/
Jamie
https://www.tr-register.co.uk/forums/index.php?/topic/17530-upper-fulcrum-pin-tr4a-front-suspension/
Offline

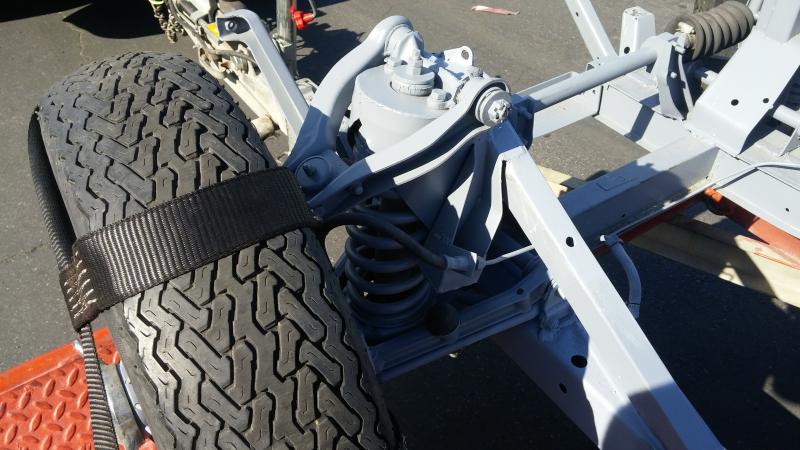

GHawk is right. His picture is correct. The first by jmcfly appears wrong.
Foura
Jedi Hopeful
Offline
It looks to me like you have the whole suspension wrongly assembled if it is a 4A. The long arm should be at the front and the short one to the rear. The front arm will then correctly show the "L" that is stamped on the other side. The ball joint should be lined up with the shock mounting hole, not well in front of it as in your photo. This will be the case when you put the arms on correctly. The way you have it also has the kingpin inclined forward rather than back, which will give some weird handling effects.
The upper fulcrum should be reversed also. This seems counterintuitive as it has the bend in it which went around the upper shock mount on all the TRs up to the 4. When Triumph fitted IRS to the cars, it changed the rear roll centre. They had to alter the position of the front roll centre to adjust the handling. They raised the lower pivot point mount from through to above the chassis. The brackets that they used are a well known failure point, and if you have not fitted the strengthening brackets (available from all the major TR suppliers) you should do so before you go any further. They also reversed the upper fulcrums to get the geometry that they wanted. Being Triumph, they used what they had rather than designing a new part.
Neil Remington had an article on his website about the fulcrum issue, but I can't find it at the moment.
Hope this helps.
The upper fulcrum should be reversed also. This seems counterintuitive as it has the bend in it which went around the upper shock mount on all the TRs up to the 4. When Triumph fitted IRS to the cars, it changed the rear roll centre. They had to alter the position of the front roll centre to adjust the handling. They raised the lower pivot point mount from through to above the chassis. The brackets that they used are a well known failure point, and if you have not fitted the strengthening brackets (available from all the major TR suppliers) you should do so before you go any further. They also reversed the upper fulcrums to get the geometry that they wanted. Being Triumph, they used what they had rather than designing a new part.
Neil Remington had an article on his website about the fulcrum issue, but I can't find it at the moment.
Hope this helps.
Foura
Jedi Hopeful
Offline
Just found this site in between working for a living! Gives some good pictures that show how the suspension goes together.
https://www.scribd.com/doc/842185/Front-Suspension-Rebuild
https://www.scribd.com/doc/842185/Front-Suspension-Rebuild
Offline

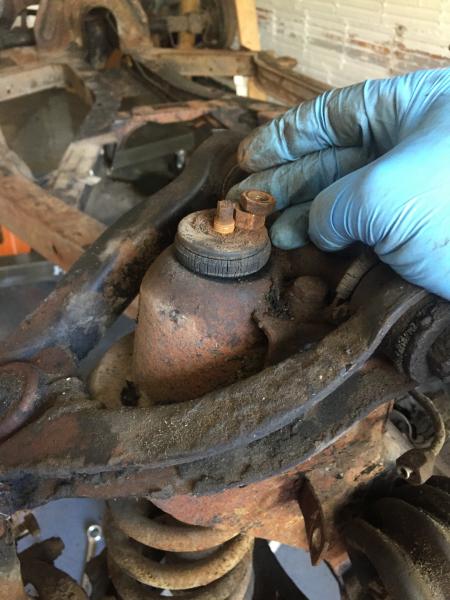

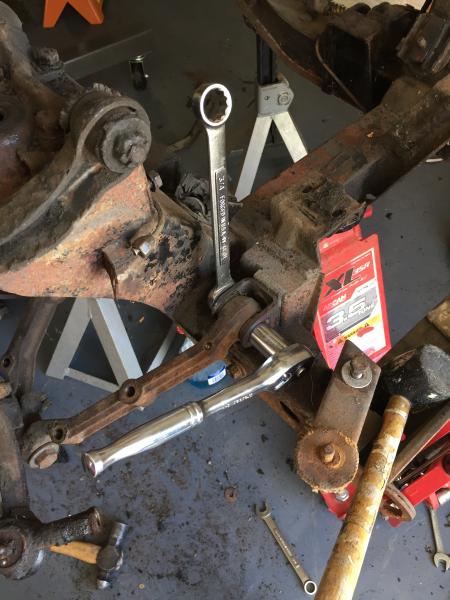

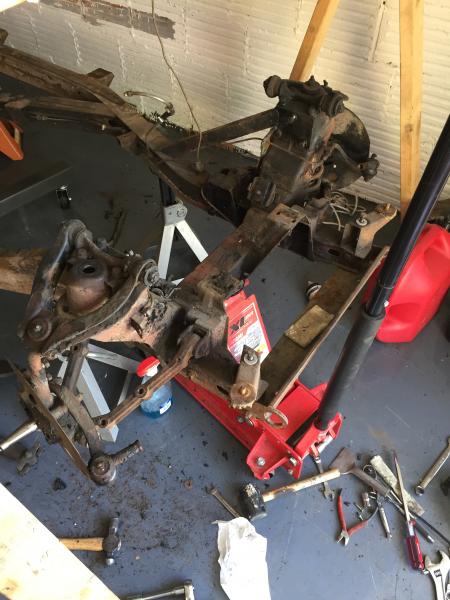

Jmcfly, for what it's worth, attached are photos of how mine was put together before dis-assembly (passenger side). Not to say it was put together correctly. It is opposite of the picture attached to your post. Also, I think (need to confirm) that my fulcrum was facing away from engine. It is a bit hard to tell which way the fulcrum is facing from the photo attached to your post.
(Mental note to self: It is impossible to take too many photos from all angles!)
(Mental note to self: It is impossible to take too many photos from all angles!)
