Bugeye combination switch

Country flag
Offline
I give up, how do I identify the terminals on the back of the combination ignition switch? My brain is brokenšŸ™ƒ


RickF

Member
Country flag
Offline

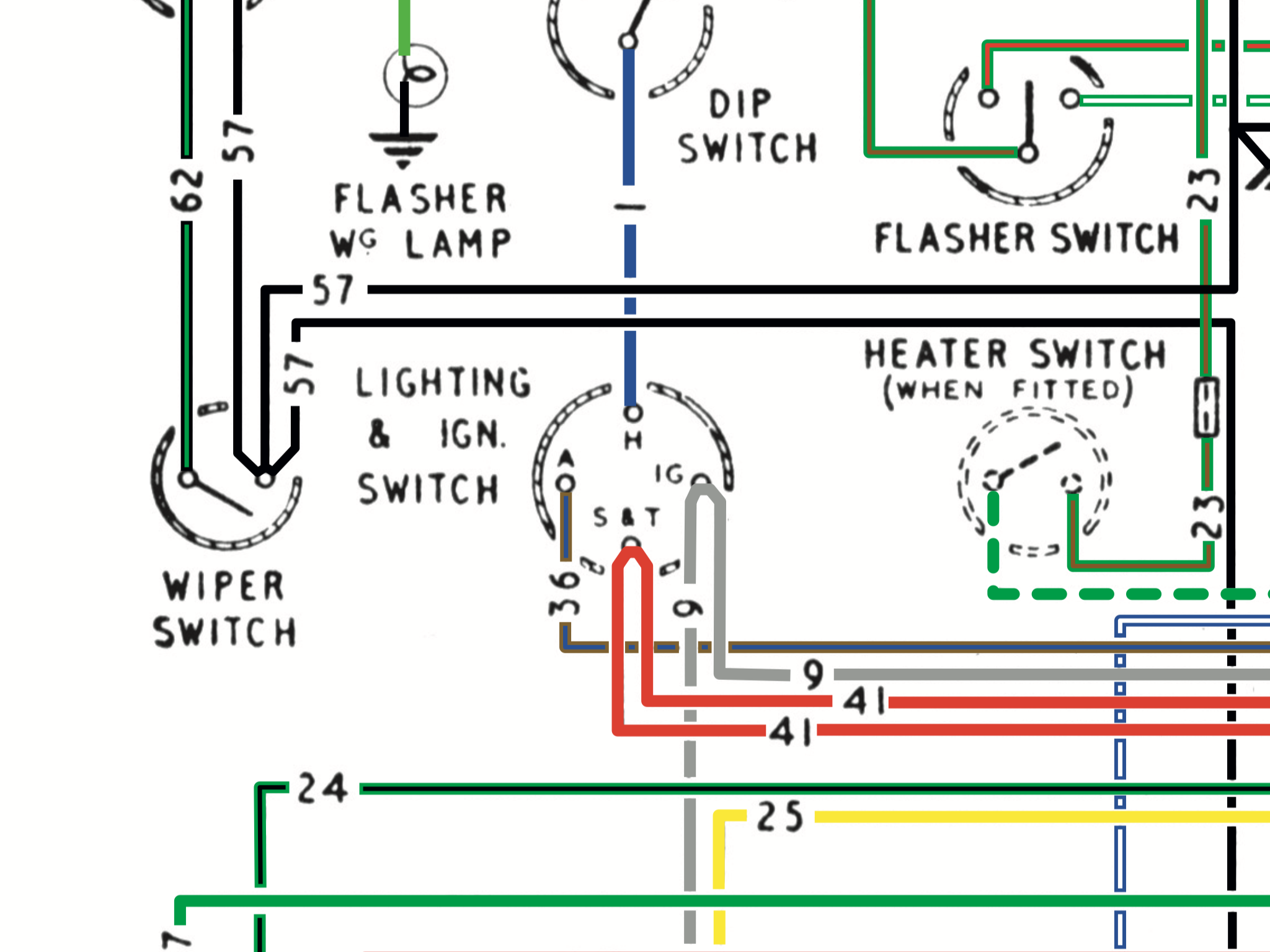

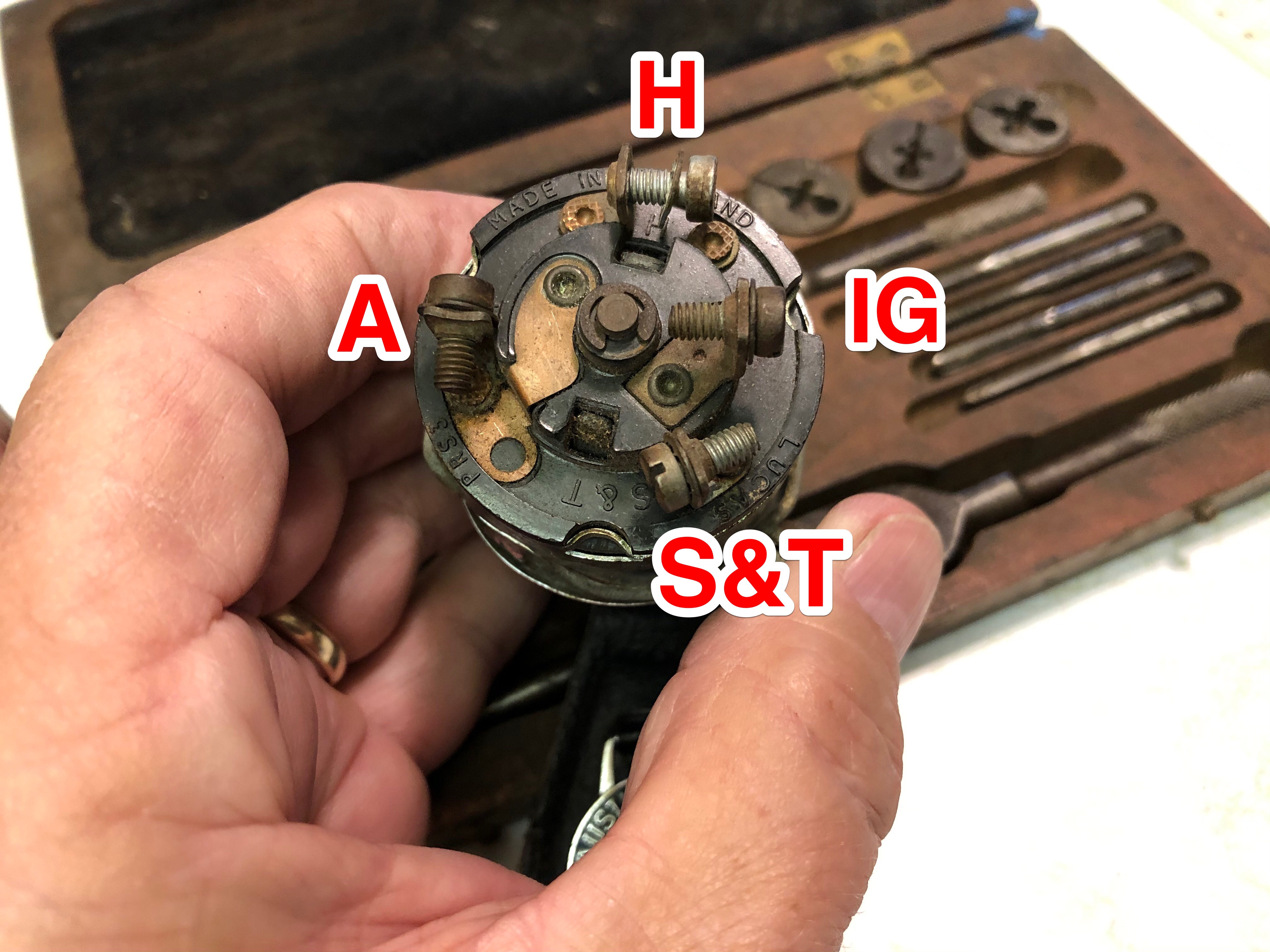

H - blue wire for headlights
IG - white wire for ignition
S&T - red wires for sidelights and taillights
A - brown with blue trace, voltage input


Attachments

  • 46CFCE97-06E5-4234-B83C-0E8C81EE4BA6.jpeg
    3.5 MB · Views: 14
  • 7D595A87-8593-46C3-81CD-FD64C0BDA8BD.png
    999.2 KB · Views: 13
OP
longbridgehealey
Country flag
Offline
H - blue wire for headlights
IG - white wire for ignition
S&T - red wires for sidelights and taillights
A - brown with blue trace, voltage input
Rick, thanks a lot! That does it for mešŸ™‚
