TR2/3/3A Brake Light Switch

Share this page

Been so long I quite forget. I had it apart recently to have the car re-painted but just labeled them and reassembled the same as before so I didn't have to think. I suspect I gave the brake lights the brighter filament - though on my LEDS the difference in the two 'filaments' isn't as dramatic as with an incandescent.

Not to change the subject to much, But How'd the paint job turn out.
can you post some pics on a new thread?
(pls. Excuse if you already have)

Geo Hahn said:
Been so long I quite forget. I had it apart recently to have the car re-painted but just labeled them and reassembled the same as before so I didn't have to think. I suspect I gave the brake lights the brighter filament - though on my LEDS the difference in the two 'filaments' isn't as dramatic as with an incandescent.
Click to expand...

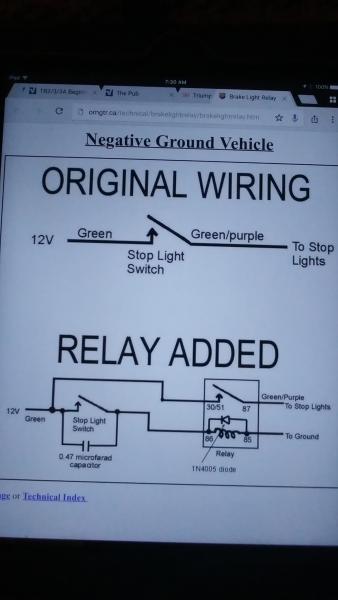

Do you think this is a good relay diagram to follow for brake light switch?

Looks like it should work.

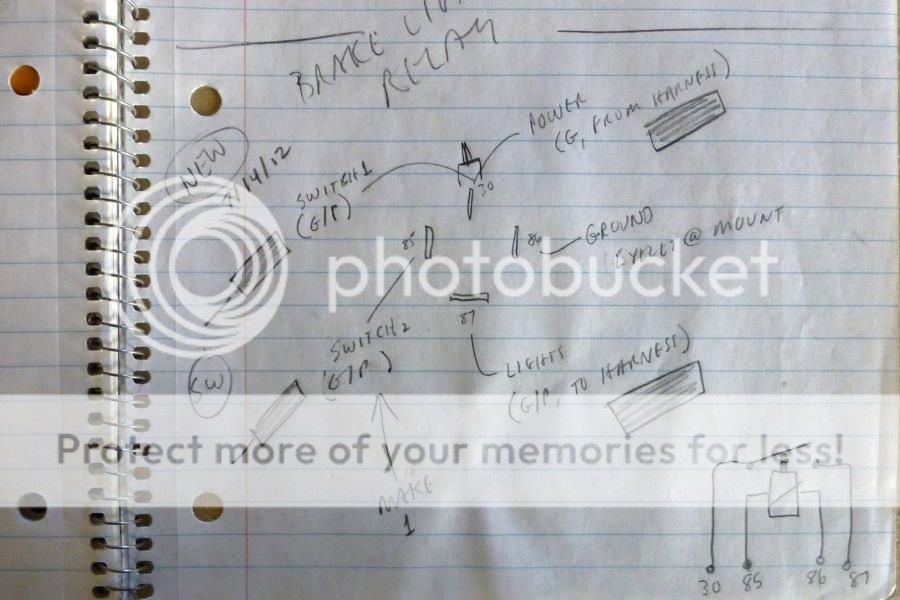

Here are the notes from when I did mine - not a good form schematic but made sense to me. I wanted a 'no-cut' installation so I used bullet connectors all around, those dark rectangles represent the female bullet connectors:
