BJ8 brake booster picture

[Marvin Gruber]

All brake lines are run except for brake booster. Will be rebuilding it soon. Having trouble figuring out how to mount. I have the two triangled shaped brackets that go on the bulkhead but how does the booster mount to the brackets. Am I missing more brackets? Picture please!

Marv



[RAC68]

Hi Marv,

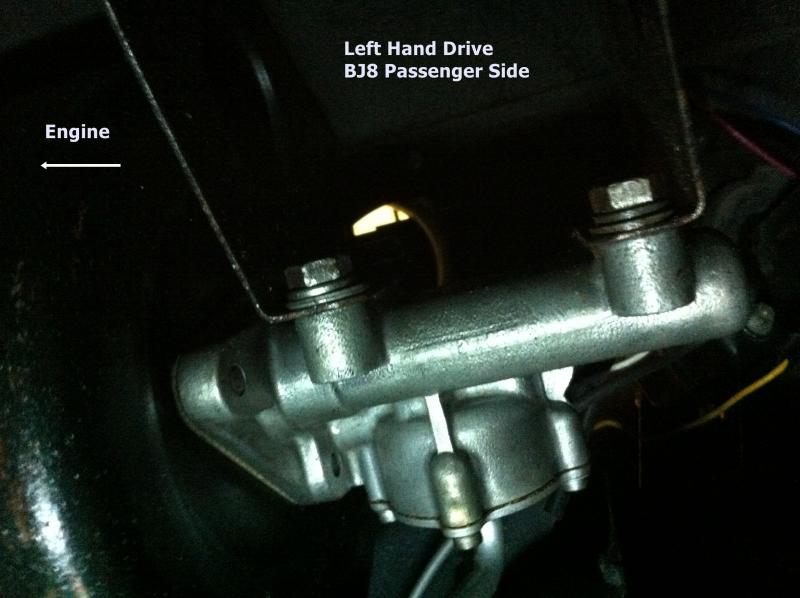

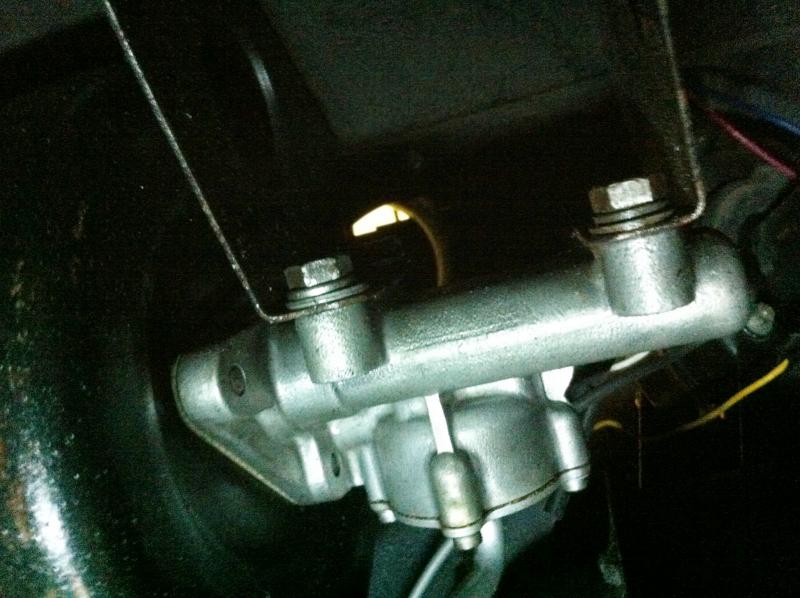

The long side of each of the (2) Girling Brake Servo mounting brackets are attached to (2) studs extending from the incline portion of the passenger side floor. The Servo is oriented with the air canister facing the engine and the smaller portion of the mount closest to the canister attached with to the hydraulic body of the servo with (2) bolts with the fender-side mount attached with (1).




Have fun,
Ray(BJ8P1)



[Marvin Gruber]

I just couldn't see the booster mounted sideways but makes sense after seeing picture.
Thanks Ray

Marv



[Randy Forbes]

From a bit further back; the frame rail is parallel with the bottom of the picture, and in the background, the starter is on the left, generator and engine mount pedestal on the right.

Clearly, this is the before picture



[Marvin Gruber]

Thanks Randy, I kept trying to mount it straight and with lines on top. Its been 7 years since the last BJ8 I restored and I didn't take this one apart. Its missing a lot of little parts and hardware
Marv
