Anyone Have Closeup Panel Fitment Photos?

kkaa

Jedi Hopeful
Offline
I think anyone that want to learn about stress, the perverse purity of cussing that weaves effortlessly through the air like a well conducted symphony, should exercise this inner daemon by trying to correctly gap a Healey!! :encouragement:

Ive been trying get it just right, scouring the web, but cant find any good closeups pics of the rocker and how the front wing to rocker and rocker to dogleg looks. Im getting about 1/8th gap more than where the door chases up to the top. Andrea and Rich's picasa sections have almost all Ive ever needed, but sadly not these....


Thank you.......


healeyblue

Jedi Warrior
Gold
Country flag
Offline
Do these help?


Attachments

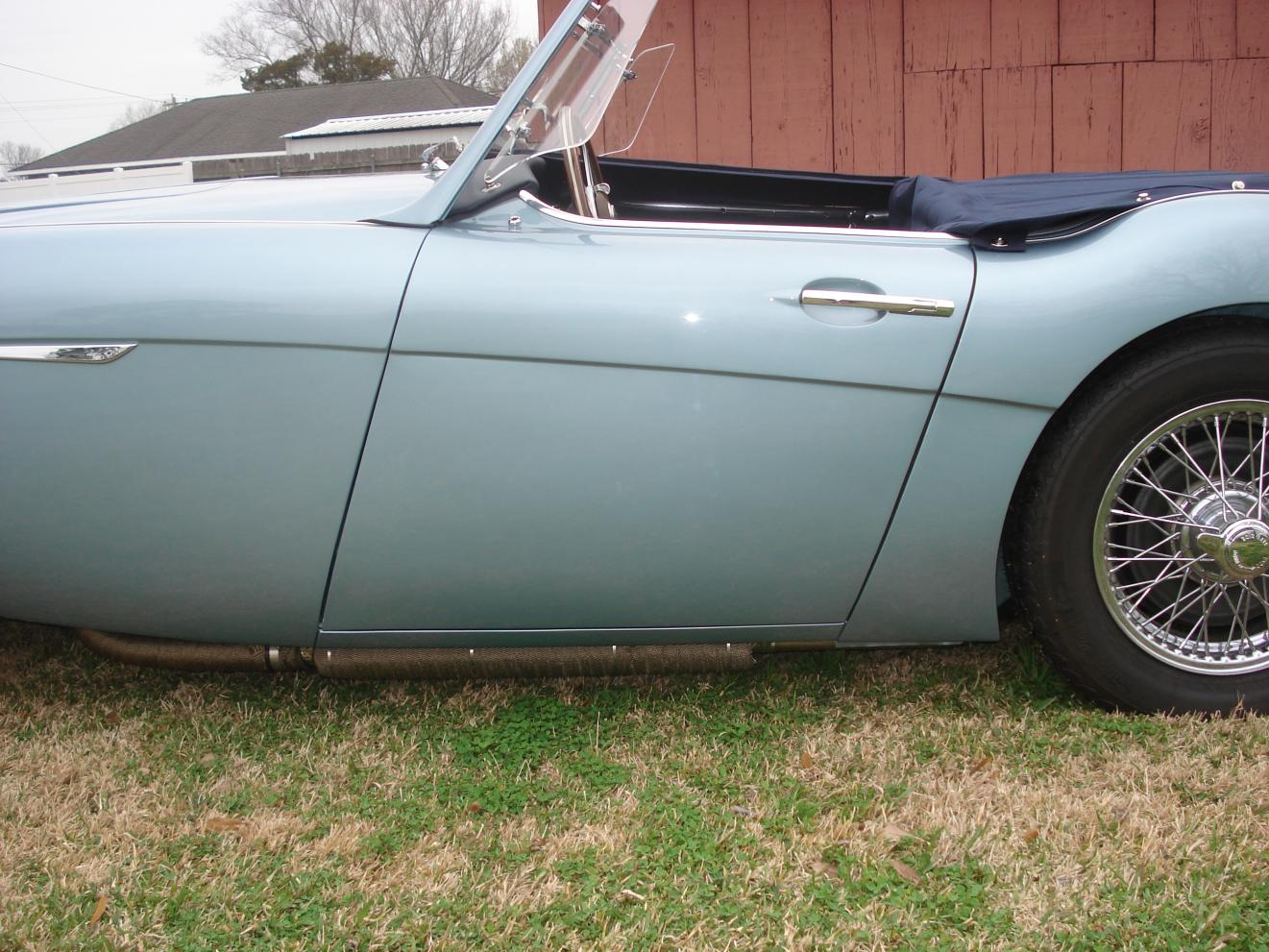

  • 2013-02-06 008.jpg
    2013-02-06 008.jpg
    196.5 KB · Views: 128

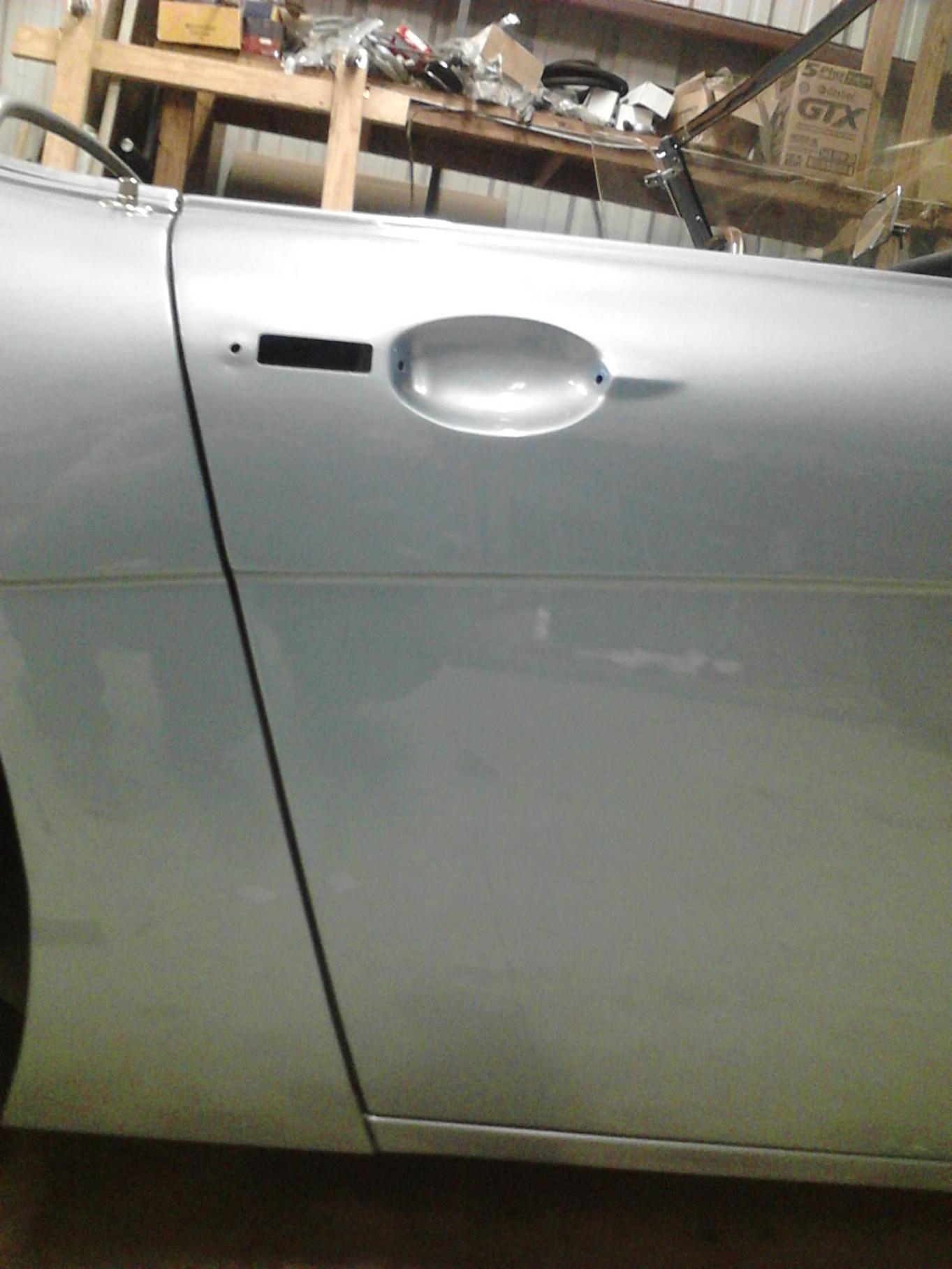

  • Photo01291657_1.jpg
    176.7 KB · Views: 124

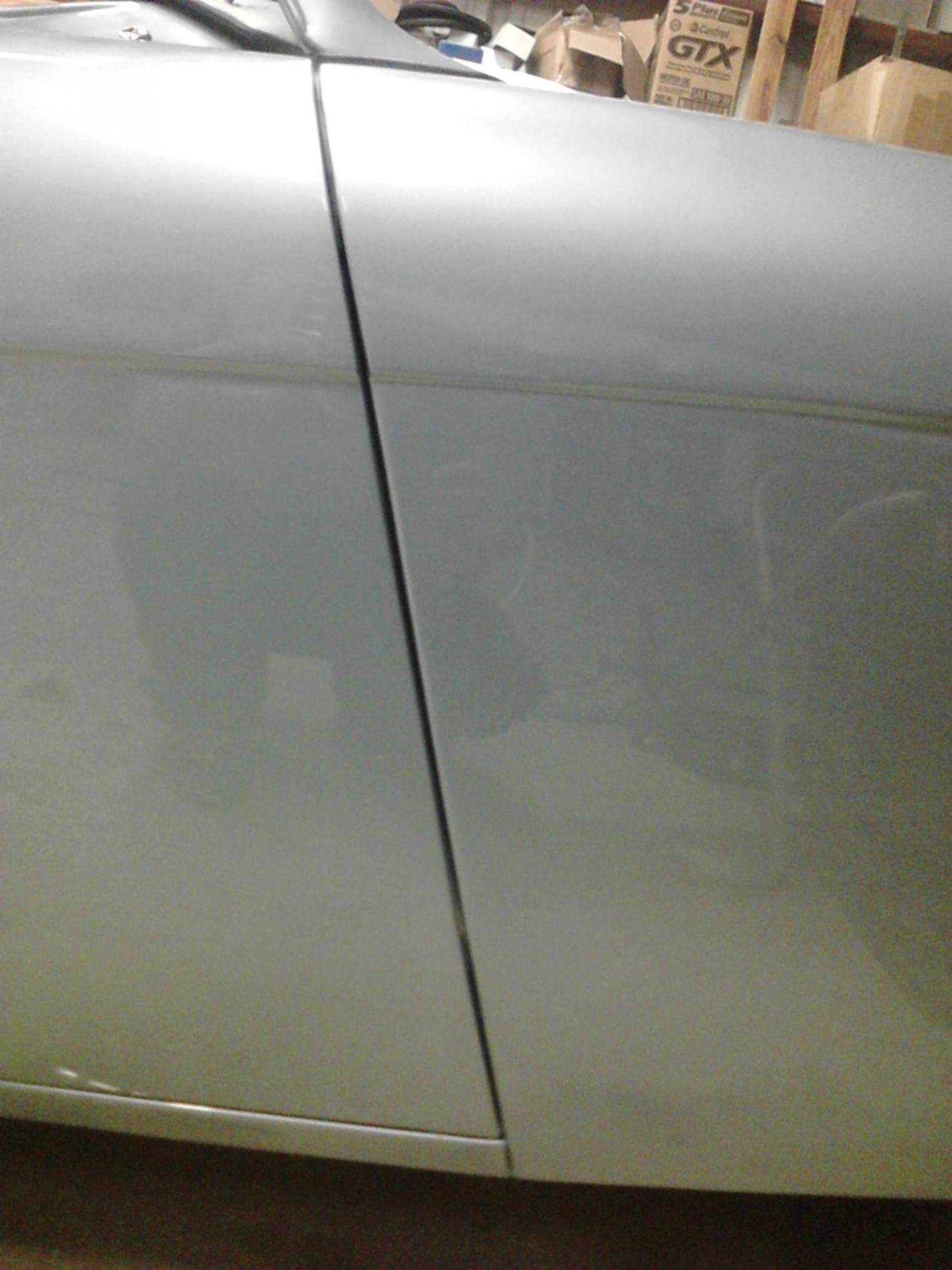

  • Photo01291658.jpg
    176.5 KB · Views: 142

Rob Glasgow

Jedi Knight
Country flag
Offline
Don't mean to hijack this topic but I've always wondered why folks who do a complete panels-off restoration say they spend so much time getting the panel gaps right. I assumed if you took the body panels off the car and then put them back on after body work, painting and such, they should fit just as well as when they were removed. Now I'm thinking this because I've never removed the panels from my car, so I have no experience. Do things really get that out of line when you remove and reinstall?

OP
K

kkaa

Jedi Hopeful
Offline
Good Q, but yes, they get way out. They can go from a 1/16th gap on top to /4" from top to bottom depending on loaded with engine weight vs not, or if you fixed any sag

Don't mean to hijack this topic but I've always wondered why folks who do a complete panels-off restoration say they spend so much time getting the panel gaps right. I assumed if you took the body panels off the car and then put them back on after body work, painting and such, they should fit just as well as when they were removed. Now I'm thinking this because I've never removed the panels from my car, so I have no experience. Do things really get that out of line when you remove and reinstall?


John_Progess

Jedi Warrior
Country flag
Offline
When I restored my 64 BJ8 I bet I spent 2 months working every day getting the door gaps correct as I had to re-construct the A and B pillars which were rusted away. I would attach the front wing and door, check the gaps, adjust and shim a little, remove both panels, re-attach both panels and the gaps would be off! Don't ask me why but it is just the way it is. I finally did get the gaps even and straight. Take your time as this is the area that you need to get right or the entire project looks off.

OP
K

kkaa

Jedi Hopeful
Offline
Ugg. At that point where i'm seeing it flush around the entire door, with a level the two panels, fender door or wing door no elevation changes. The gaps are 1/8th all the way down to the front wing, perfect. Now its just the connection where the dogleg stops overlapping the rocket and i see a 1/8 extra gap. Ill take a pic tonight....

When I restored my 64 BJ8 I bet I spent 2 months working every day getting the door gaps correct as I had to re-construct the A and B pillars which were rusted away. I would attach the front wing and door, check the gaps, adjust and shim a little, remove both panels, re-attach both panels and the gaps would be off! Don't ask me why but it is just the way it is. I finally did get the gaps even and straight. Take your time as this is the area that you need to get right or the entire project looks off.


bighealeysource

Jedi Knight
Country flag
Offline
Hey kkaa,
I would recommend getting hold of the restoration series done by Roger Moment and Gary Anderson and available through the Austin Healey Club USA. If you're a member it's online and free. If not a member, then consider joining as the subject matter of panels and gaps is discussed in one or two of the installments. I'm in both Healey clubs so this is not a push to get you to join one or the other but it is really an excellent series of articles written over a few years.
Regards,
Mike

OP
K

kkaa

Jedi Hopeful
Offline
Mike, Great advice and have it, the multi-part series. I guess when you actually get it perfect, you write a book!! Ill take a pic and post it tonight, i might be fussing over nothing....I also bought on google their restoration guide, but says even 1/16th to 1/18th, but between them talk about the difficulty.


Hey kkaa,
I would recommend getting hold of the restoration series done by Roger Moment and Gary Anderson and available through the Austin Healey Club USA. If you're a member it's online and free. If not a member, then consider joining as the subject matter of panels and gaps is discussed in one or two of the installments. I'm in both Healey clubs so this is not a push to get you to join one or the other but it is really an excellent series of articles written over a few years.
Regards,
Mike


Patrick67BJ8

Darth Vader
Silver
Country flag
Offline
Mike, Great advice and have it, the multi-part series. I guess when you actually get it perfect, you write a book!! Ill take a pic and post it tonight, i might be fussing over nothing....I also bought on google their restoration guide, but says even 1/16th to 1/18th, but between them talk about the difficulty.
I don't know about any book saying they are to be 1/16 to 1/18 but I've been told that the correct gap was 3/16 and most of the cars I've seen "restored" reflect that 3/16 gap. The gap should be fairly consistent all the way around.

OP
K

kkaa

Jedi Hopeful
Offline
Perfect, thanks for this. Ill give it and post a followup once its done...Another snowstorm today and good time to have at it..


I don't know about any book saying they are to be 1/16 to 1/18 but I've been told that the correct gap was 3/16 and most of the cars I've seen "restored" reflect that 3/16 gap. The gap should be fairly consistent all the way around.


Healey Nut

Luke Skywalker
Country flag
Online
Good Q, but yes, they get way out. They can go from a 1/16th gap on top to /4" from top to bottom depending on loaded with engine weight vs not, or if you fixed any sag

Im sorry but if the frame flexes enough to alter door gaps etc when the engine is put in then I would have some serious concerns about the integrity of the frame .


healeyblue

Jedi Warrior
Gold
Country flag
Offline
kkaa,
Yes post up some pics so we can see what you are dealing with. I adjusted and massaged the gaps many times, but all without the engine in place and I still had no movement once it all was back together. I checked and checked and rechecked many times though. I made sure the gaps were good during welding times and during the body work times. I come from the background of restoring Porsche 356's and the gaps on those cars are far more critical and harder to get right. These cars are easy by comparison, but you must still check the gaps often, and leave a little extra for paint thickness as well.
Jim


Attachments

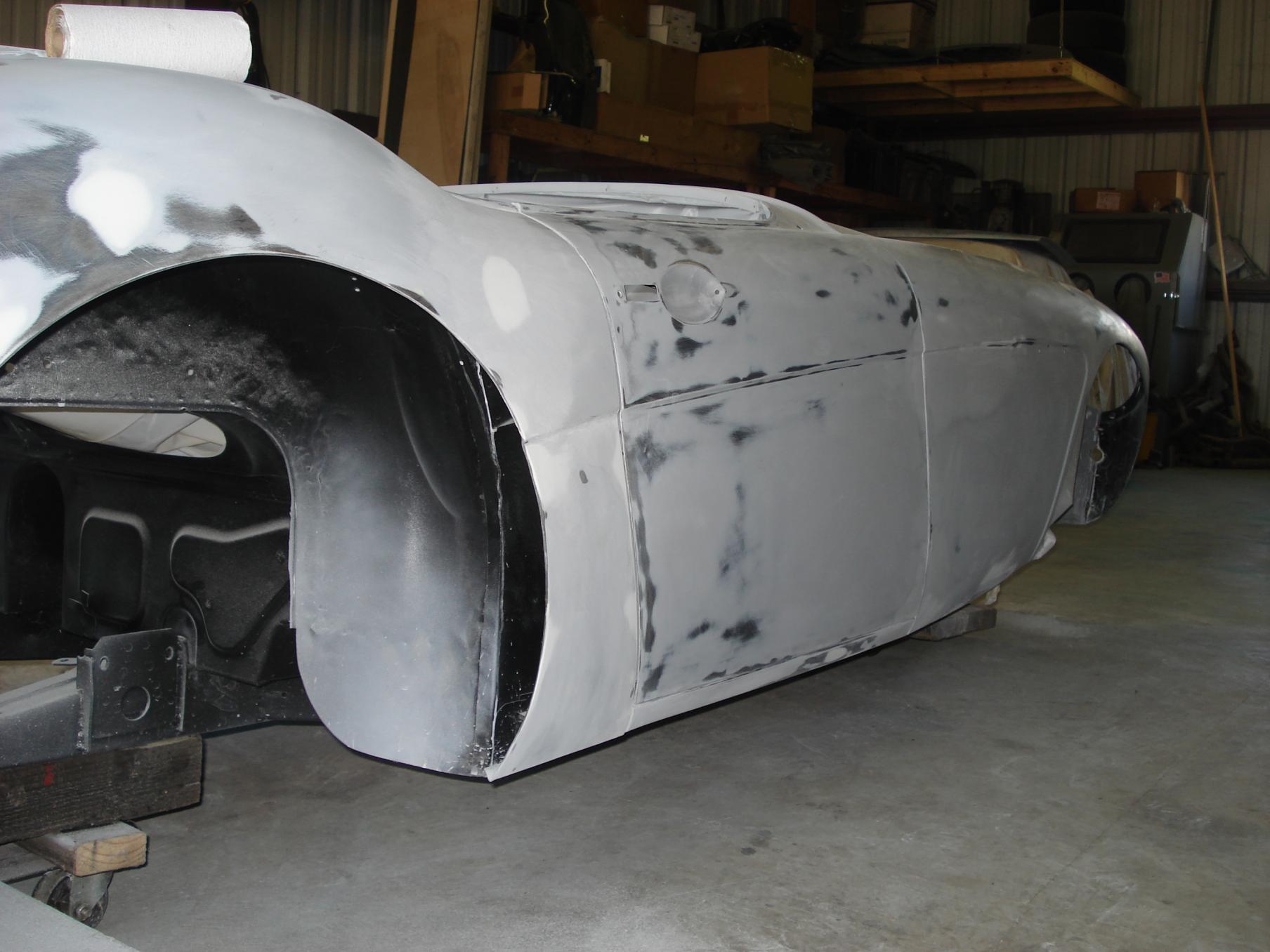

  • healey 140.jpg
    healey 140.jpg
    176 KB · Views: 87

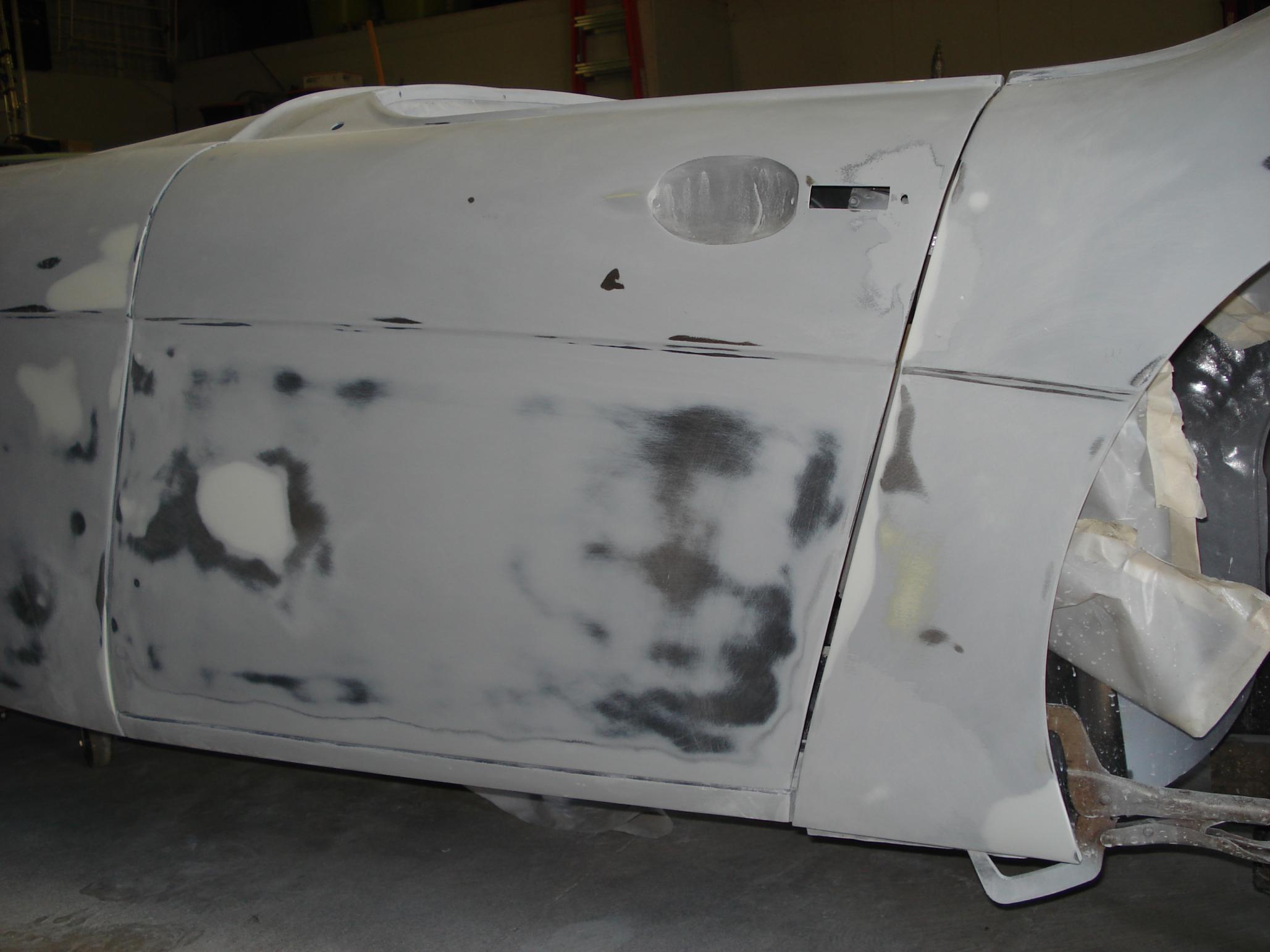

  • healey 142.jpg
    healey 142.jpg
    171.3 KB · Views: 91

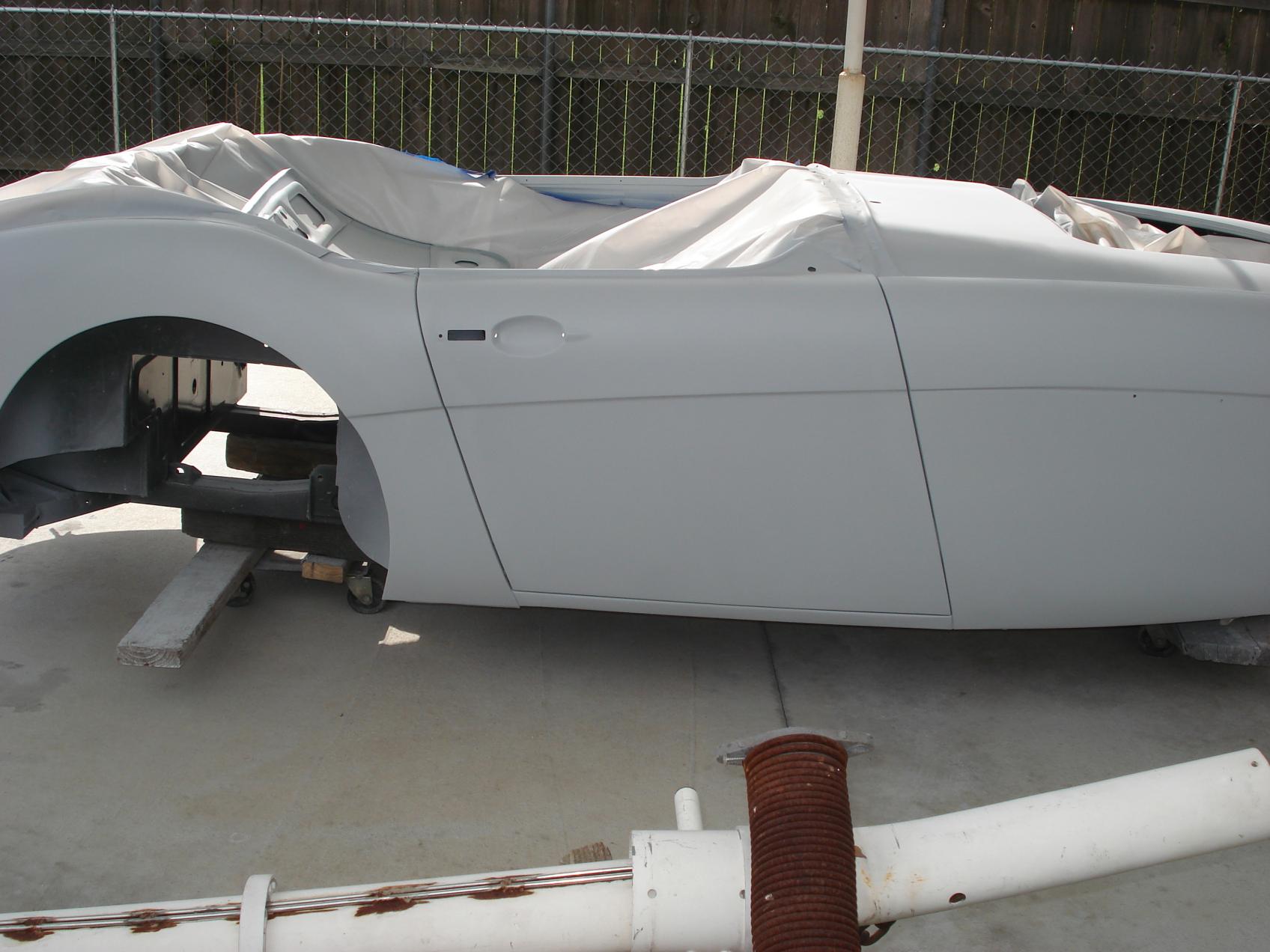

  • healey 151.jpg
    healey 151.jpg
    182.5 KB · Views: 84

andrea

Jedi Knight
Bronze
Country flag
Offline
Hi Jim

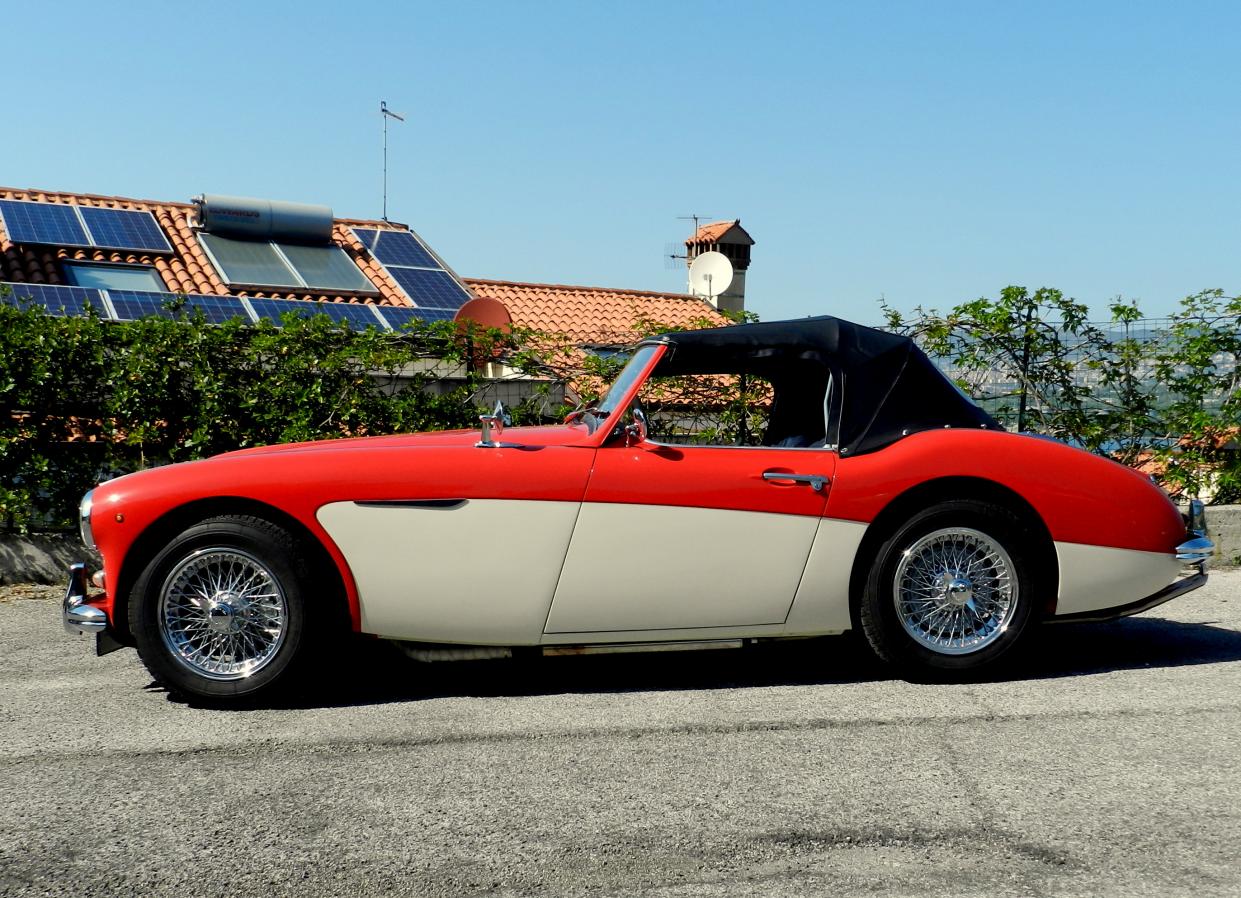

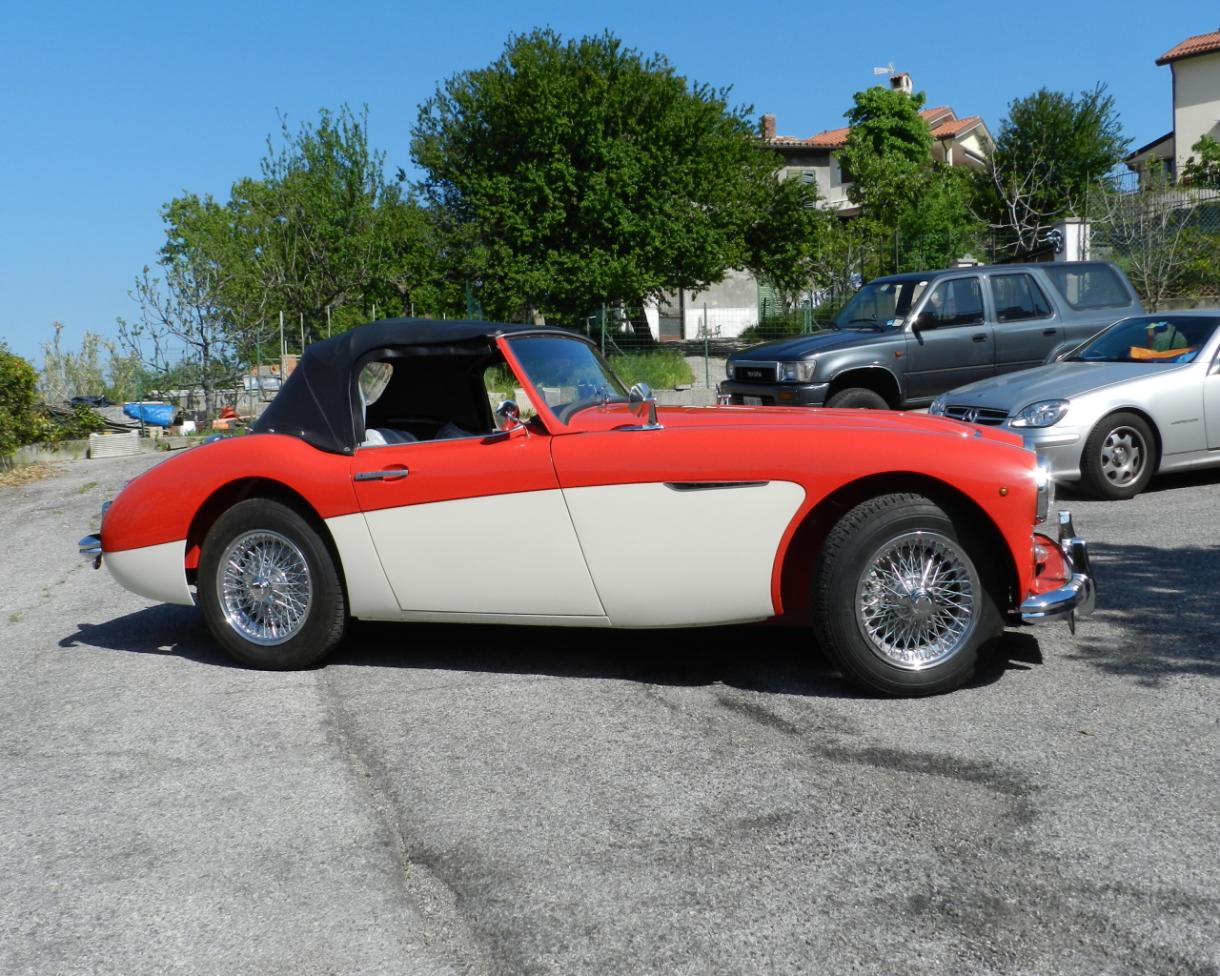

Sorry! I lost this Thread --here my car gaps
Note: MAURO fit my doors gap nearest the perfection- but I have wrongly mounted my check straps on reverse mode (RX on LX side), and this damaged the gap, of the RX door in the upper part, for about one 1mm more
This are the photos shot for my Historic certification, and can be easy enlarged


Patrick67BJ8

Darth Vader
Silver
Country flag
Offline
I don't know about any book saying they are to be 1/16 to 1/18 but I've been told that the correct gap was 3/16 and most of the cars I've seen "restored" reflect that 3/16 gap. The gap should be fairly consistent all the way around.
I believe the late Eddie Miller Jr. used to place a dolly(home made) under the center of the frame and a 100 lb. bag of cement across the front shock towers and also in the trunk then do his fitting and welding.


RDKeysor

Jedi Trainee
Bronze
Country flag
Offline
This may be stating the obvious, but it appears best to be sure that these cars are dimensionally stabilized early on in the restoration process. I am aware of a beautifully restored BJ8 on which the top does not fit and the door latches had to be recessed to match up. The owner has considered replacing the car's frame, giving one an idea of how difficult this problem can become. I think this discussion is a valuable one for people undertaking these projects. A member of my family had an a 356C Porsche coupe fully restored, and I observed that the restorer had literally welded the chassis to a template in the process. The outcome was excellent.


CLEAH

Jedi Warrior
Country flag
Offline
This may be stating the obvious, but it appears best to be sure that these cars are dimensionally stabilized early on in the restoration process. I am aware of a beautifully restored BJ8 on which the top does not fit and the door latches had to be recessed to match up. The owner has considered replacing the car's frame, giving one an idea of how difficult this problem can become. I think this discussion is a valuable one for people undertaking these projects. A member of my family had an a 356C Porsche coupe fully restored, and I observed that the restorer had literally welded the chassis to a template in the process. The outcome was excellent.

Is there in fact a set of dimensions available of the door openings for a "correct" car? I will be replacing the sills, rear shut pillar assembly and the portion of the rear quarter where the shut pillar attaches. Is there a set of dimensions available of this opening? I'd be using the hinge pillar as a datum. (I'm still in disassembly mode, but this task already has me lying awake at night...)
