79 Midget Coil Wiring
- Thread starter bpartz
- Start date
Share this page
Trevor Jessie
Yoda
Offline
OK, never owned a '79, but here is my guess.
White with black tracer to neg terminal.
White with Light Green tracer to the positive side.
So how'd I do?
White with black tracer to neg terminal.
White with Light Green tracer to the positive side.
So how'd I do?
Trevor Jessie
Yoda
Offline
By the Way, Welcome
Hopefully a spit-get owner will be along before long to give a better answer. I think the wire to the positive side sould pass through a ballast resistor and the other should go to the starter selenoid.
Hopefully a spit-get owner will be along before long to give a better answer. I think the wire to the positive side sould pass through a ballast resistor and the other should go to the starter selenoid.
tony barnhill
Great Pumpkin - R.I.P
Offline
There's an interesting sister thread over on the MG Forum...https://www.britishcarforum.com/ubbthread...9089#Post199147
Trevor Jessie
Yoda
Offline
Trevor Jessie
Yoda
Offline
ooops,
that made for a wide page!
that made for a wide page!
tony barnhill
Great Pumpkin - R.I.P
Offline
happens from time to time....
Oooops ! Just checked against the wiring diagram and it is not the same ! There are a couple of additional white wires and a white with blue wire that come out of the harness, but don't show on the diagram ??? Evidently the later 79's were wired differently ???
Trevor Jessie
Yoda
Offline
If you look in the diagram there is a White with Blue (WU) on the other side of the resistor. This resistor may just look like a fat spot in the wire. Or... a DPO may have done some rewiring that is going to make this difficult. I don't have a 1500 manual to check for additional diagrams. I really thought a 1500 owner would have joined in by now. Maybe tomorrow.
What type distibutor do you have?
What type distibutor do you have?
I haven't checked the number of the dizzy .... This is the electronic ignition with the coil mounted directly atop of the black amplifier box. Two wires in a plug-in harness go directly to the distributor (same as on my 80 B. There is no other outside or separate resistor so the resistor is in one of the wires.
Morris
Yoda
Offline
Man, I would love to help you, but I don't have anything close to a stock set-up. Mine was modified beyond recogonition long before it entered my posession.
How many lose wires are you trying to locate homes for? What are their colors? What connections are available to receive wires?
How many lose wires are you trying to locate homes for? What are their colors? What connections are available to receive wires?
sparkydave
Jedi Knight
Offline
You must have the CEI ignition. Wish I could help, but I have the OPUS system, which died on me. The one thing I can contribute is that the #42 resistor on the schematic is called the "drive" resistor, and is not the ballast resistor. The ballast resistor is actually a resistor wire built into the harness, so it doesn't even look like a bulge. Apparently the CEI got rid of the drive resistor, which would have been a metal resistor mounted to the pedal box next to the coil. My dizzy actually has 3 wires going to it, but internally I replaced the guts with a Pertronix. I kept the unused wires on the harness side in the off chance I came across a working dizzy.
About the only other thing I could contribute is the white and blue wire is what would have come from the drive resistor, and the white wires are +12 volts switched by the ignition. The OPUS box used +12 (white), the drive resistor (white with blue), and the one from the negative side of the coil (white with black).
About the only other thing I could contribute is the white and blue wire is what would have come from the drive resistor, and the white wires are +12 volts switched by the ignition. The OPUS box used +12 (white), the drive resistor (white with blue), and the one from the negative side of the coil (white with black).
startech47
Jedi Knight
Offline
startech47
Jedi Knight
Offline

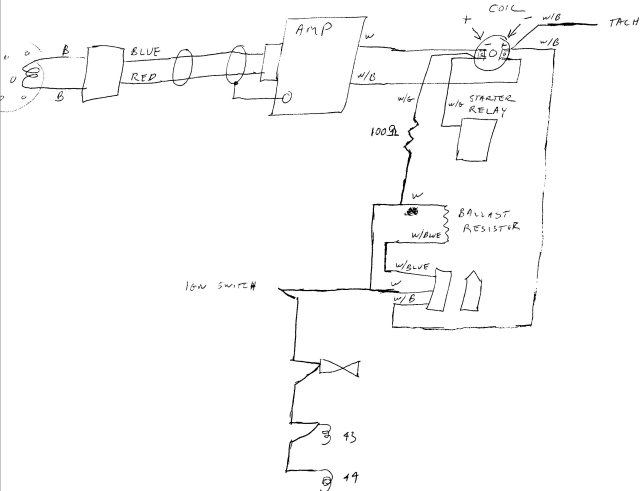

The 100 ohm resistor is in the harness wiring. The connector under the ballast resistor is the connector that went to the original distributor. Phil
Thanks, guys ! I think I have it figured out (?) Apparently, the wiring harness is the same as previous years, even keeping the wires and multi-plug for the previous type of distributor. The CEI rig does not employ those wires and they just lie there to confuse people like me !!!
capitalcitycars
Jedi Trainee
Offline
I'm using the Mallory dual point distributor and the engine purrs like a kitten.
Matthew E. Herd
Jedi Warrior
Offline
I've got a unilite. Though extremely expensive, it does run well, with no real problems thus far (except I burned out the LED unit once). This was due to the fact that I accidentally grounded the unit (something it doesn't say NOT to do in the instructions, but DON'T do it). They replaced it under warranty, and it's been fine ever since. Once it's installed, it works fine. ... It'd better for 500 bucks!
