TR2/3/3A TR3A Slave Cylinder Mounting?

Share this page

O

oxendine

Jedi Hopeful
Offline
As the title reads does anyone have a good pictures of the slave cylinder and bracket mounted on the engine/transmission?

Thanks, Donnie

TR3driver

TR3driver

Great Pumpkin - R.I.P
Offline

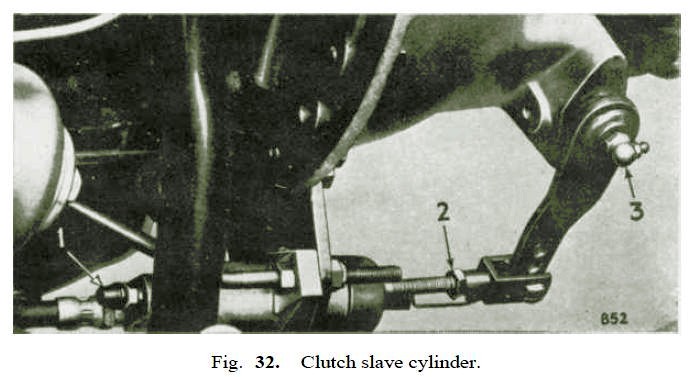

Here's the one from Practical Hints, which correctly shows the bleed valve on top.


Attachments

  • 28336.jpg
    48.4 KB · Views: 95
Geo Hahn

Geo Hahn

Yoda
Country flag
Offline
Interesting that that pic also shows the clevis connecting to the bottom hole in the operating arm (am I wrong in thinking that the middle hole is the usual way?).

Sorry about the (now deleted) pic... I grabbed a photo I took of a restoration by a friend who usually knows what he's about.

TR3driver

TR3driver

Great Pumpkin - R.I.P
Offline

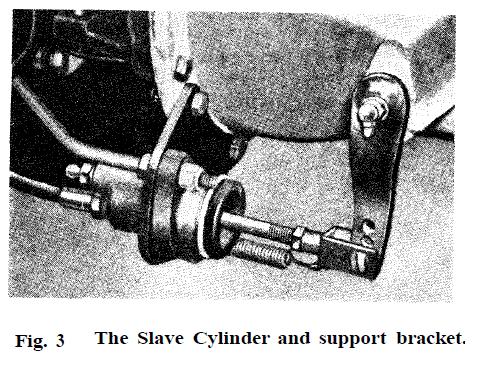

I use whichever hole lines up best with the axis of the slave cylinder. As I recall, that winds up being the bottom hole for me, but I won't swear to it. The workshop manual also shows the bottom hole, but that appears to be the early Lockheed slave, which might be different:


Attachments

  • 28337.jpg
    63 KB · Views: 84
