TR2/3/3A TR3A Choke cable hook up

[Tinkerman]

The only thing that I have to do with the carb pre-start set up, is hook up the choke. I'm sitting here looking at the Practical Hints booklet and I see how the choke cable goes and where it goes. My problem is I can't see where the actual cable hooks up. Can someone help me with this problem?

Thanks, Tinkerman



[TR3driver]

Where the horizontal rod joins the bottom of the lever on the front carb, there is a special double-ended pin. One side is smooth and takes a cotter pin to hold it in place through the lever and clevis. The other side is threaded for a nut. On the threaded side, there is a hole through the center. The inner part of the choke cable goes through the hole, then tighten the nut to lock the inner cable to the pin.



[Tinkerman]

Randall, that was great and very timely. I went into my computerized store of parts and got a hit on "choke cable pin assy" I was sitting here trying to figure out how it went when I got your post.
Thanks, Dick



[TR3driver]

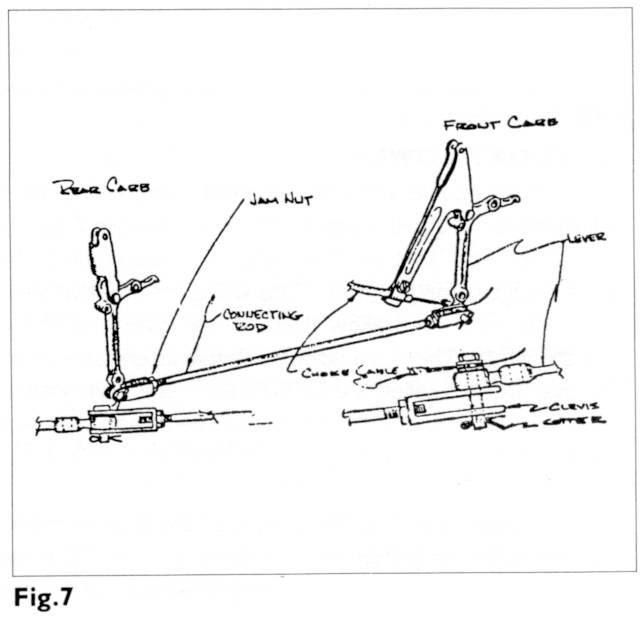

Forgot to add, that drawing is from Bob Schaller's "More BS on TRs". Bob is no longer with us, but I believe reprints are available from TRF.
