matttnz
Member
Offline
Link to similar thread on tr-register.co.uk
I've seen a few posts over the past year of folks, like myself, looking for a wiring diagram for CR cars.
Usually we get (well "intentioned-ly") sent toward the advance autowire link that seems to have diagrams for every TR5/6...except ours.

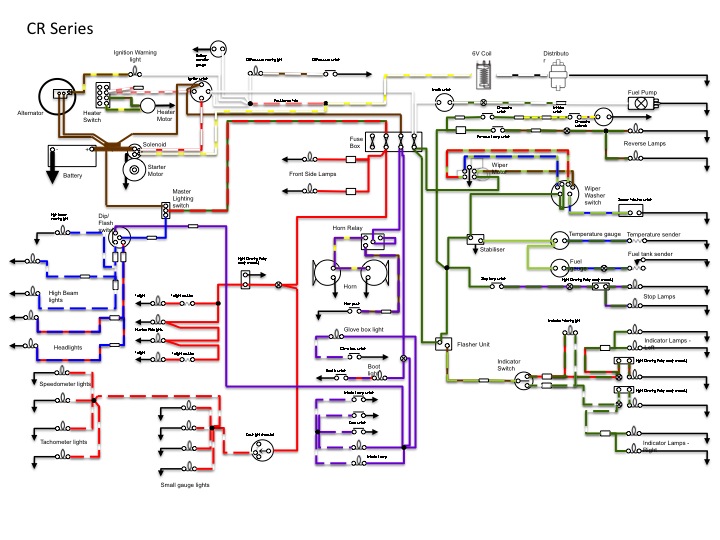

I managed to get pdf of a pdf of a copy of a scan... that I've tidied up into a colour wire diagram to mimic these. I originally formatted at A3 on PPT and converted to pdf which seemed to magically transform it to A4, but it should blow up ok. The pdf is on TRRegUK website, but size rules means I've only got a jpg attached here I'm afraid.
There are some bits for German market cars I've left out for simplicity (extra rear lights & hazard lights) but if anyone would like a copy of the original file, or the ppt I hacked together so they can use it as a base to document their own "enhancements" or "PO embellishments" please feel free to PM me with your email & I'll send them through.
Righto
MT
I've seen a few posts over the past year of folks, like myself, looking for a wiring diagram for CR cars.
Usually we get (well "intentioned-ly") sent toward the advance autowire link that seems to have diagrams for every TR5/6...except ours.
I managed to get pdf of a pdf of a copy of a scan... that I've tidied up into a colour wire diagram to mimic these. I originally formatted at A3 on PPT and converted to pdf which seemed to magically transform it to A4, but it should blow up ok. The pdf is on TRRegUK website, but size rules means I've only got a jpg attached here I'm afraid.
There are some bits for German market cars I've left out for simplicity (extra rear lights & hazard lights) but if anyone would like a copy of the original file, or the ppt I hacked together so they can use it as a base to document their own "enhancements" or "PO embellishments" please feel free to PM me with your email & I'll send them through.
Righto
MT
