TR6 TR6 aftermarket gauges

Share this page

M

MarkT

Senior Member
Offline
Just to satisfy some curiosity, has anyone out there installed aftermarket gauges to a TR6? If so, what make, and observations, thoughts etc...

And as a rider - does anyone know the fuel tank sender operating range in ohms for an (assumably) stock '76 TR6?

Cheers,
Mark
____________________
1976 TR6 "rolling" resto...

Mark
I have seen many 6's with aftermarket guages. I was going to do the same until I realised the Smiths guages are collectable. Assuming you have the original Smiths guages, can you clean them up to look new? The originals just look so much better than new guages.
Regards
Craig

Mark-

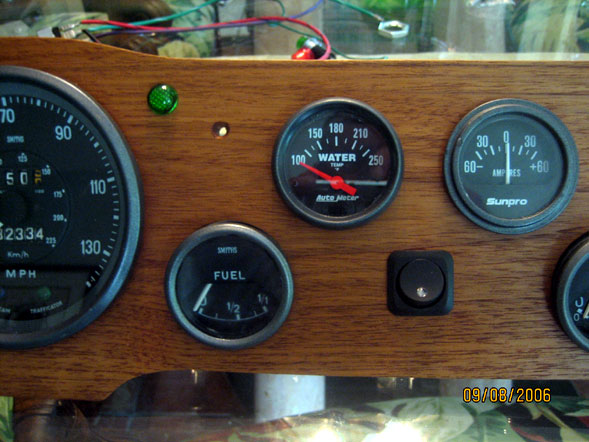

Here is a photo of 2 aftermarket gauges, dry fit at the moment.

I am this week at the tail end of refurbishing the
originals but needed an aftermarket for the new
electrical system I am installing and my original temp gauge was broken. Replacement TR temp gauge also did not
function so I bought aftermarket. It functioned just great
for the 18 miles the TR drove before it died.

Hope this helps


Attachments

  • 252644-dashgauges.jpg
    68.8 KB · Views: 639
I actually did a dash conversion to white face guages on a past tr6. If you want all original size guages I found only 1 brand auto meter brand Phanthom series has all the right sizes but some required some work as for instance the speedo, or the tach, was electronic. I don't remember everything but remember having to get a different gas tank ending unit, and some part that hooked up to the transmission for the speedo. Auto Meter tech service got me in touch with everyone I needed for the proper sending units etc.


Attachments

  • 252655-smalldash.JPG
    19.3 KB · Views: 460

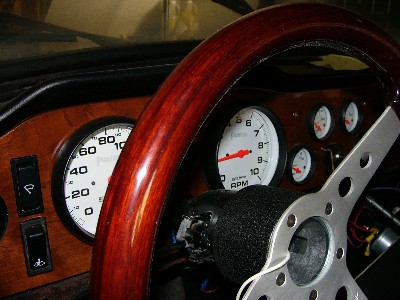

here is a second photo of the Auto Meter Phantom guages.


Attachments

  • 252753-2nddashpicture.JPG
    44.2 KB · Views: 638
All,

Thanks for the helpful info. The range of AutoMeter gauges look pretty good - Roofman, nice setup!

Cheers,
Mark

When I did the dash about 3 years ago or so, the Phantom series was the only series that had both the speedo and tach in the correct large size. It may be they have other series and styles with all the correct sizes now, but I liked the white faces.

I have also used white faced Autometer gauges in both of my TR6s. You can see pictures of one at https://www.britishv8.org/Triumph/DanMasters.htm

The real problem with aftermarket guages is what to do with the indicator lamps that are located in the stock tashometer and speedometer. You'll have to either add them to another location on the dash, or buy a set from one of the instrument makers that will allow you to customize the gauges and put lights in them for you. I don't have a name offhand, but if you'll e-mail me later, I'll try to look them up for you, but you may want to try https://www.classicinstruments.net/ first.

I have to say I'm taken with both the Phantom and Sport-Comp series of Autometer gauges, which seem to have the requisite 5" and 2 1/16" sizes. You're right about the warning lamps; this is something I've been thinking about for the past couple of days and have come to the conclusion that a set-up similar to yours would be good.

This project seems to snowball...as I'm installing one of Dan's Powerblocks, I may as well take the time to refurbish and modify the dash, or make another custom one, to take all of those little extras. I have a very nice replacement veneer, so time to get on another learning curve....

Mark

The white guages are very cool against the wood dash, and when you are done look custom. The black would look too much like stock. if your not a purist, and want something cool go for the white. These guages aren't cheap, and it's a substantial job to change them out. I was very happy with the look. I wish I had better pictures than those posted.

Another thing to consider - If you use the white face gauges, you WILL need to use a gauge light dimmer! They are BRIGHT!

Having a gage light dimmer with the stock gages in a TR6 is an oxymoron. The white gages do look good, I must admit and against a dark cherry or dark walnut dash, they would be outstanding.

Quick question regarding aftermarket units - is there any way to convert the manual oil pressure gauge to an electric unit?

Thanks!
