Shiny dash pot

Share this page

jlaird

jlaird

Great Pumpkin
Country flag
Offline

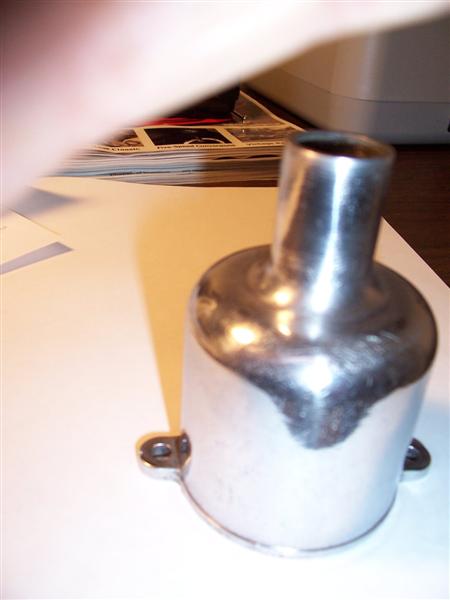

Here is one not quite finished. This was to prove the concept for me.

It was really nasty nasty. 100 grit sand paper, even a file to remove a few deap marks, 120 paper then 150.

Power polisher and it needs some more.

Kept a pot of cool water along side to keep the temp down. Piston slides freely.

This is not for Miss Agatha now was just a test but I supose I will finish the job.


Attachments

  • 6982.jpg
    26.3 KB · Views: 88
Must be Mine Ben. heh.

This is doable at home folks, just takes some time and effort.

Aluminum is rewarding to polish! I did mine the same way and finished it on a buffing wheel. Look like mirrors! I also did my MGB windshield the same way. I didn't seal mine, instead I polish with mother's mag polish every now and them and keeps them looking new.

A method I tried a couple years ago involved a small lathe (Sherline) and a four jaw chuck (jaws opened inside the dash pot). My lathe was variable speed so machining and polishing was quite easy. I used the fixed tool rest to machine the outside to round, then removed it an used three grades of rouge to polish. Seems I saved a photo of the setup, but not the finished pot. I've since given the lathe to my son for use in bamboo fly rod making.

I also have a larger wood lathe with a both a three and four jaw chuck; it would work just as well for the polishing part. I really don't see a need for perfect roundness in the pot prior to polishing.

Ray
