Panel Switch Wiring 3000 BJ8

Share this page

memphis

memphis

Jedi Hopeful
Offline

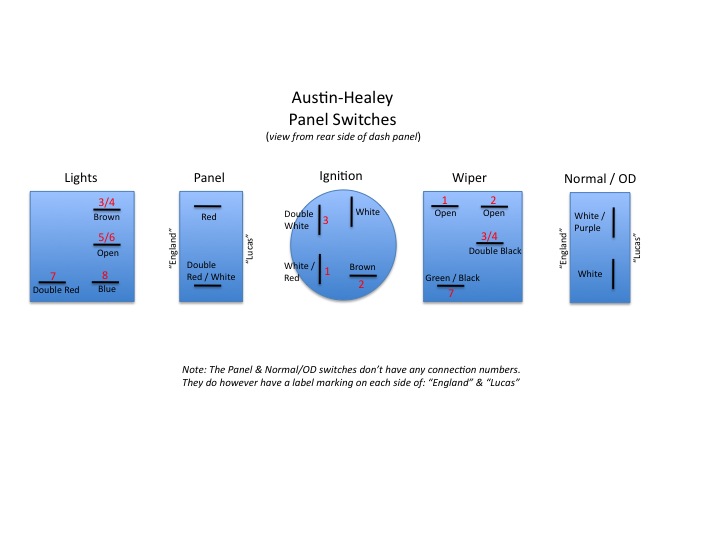

In the process of working on my heat booster fan, I made a wiring diagram.

Thought I would share it.

Thanks,
Bob


Attachments

  • 23115.jpg
    44.2 KB · Views: 282
Niiiiice!

Watch out GregW, there's a new kid that does cool stuff like you.
Not to worry Greg, he's got a tall ladder to climb to come up with some of the really neat-o things you've posted in the past.

Like one of my favorites you came up with. The Austin Healey expresso machine.

Rock on Bob and Greg.

OK, so I thought I was "awake" when taking notes for the panel switch wiring, well I wasn't...

Please look at my initial post on top of this thread. I revised the diagram to include the numbers marked on the back of the switches, next to the corresponding wire color.

Can anyone verify the wiper switch? This is the only one that I am not 100% sure on.

Thanks in advance for your help!
Bob

Hi John,

The wiring diagram also shows the "green/black" wire on connection number 8. My wiper switch doesn't have an "8", only goes up to "7".

When I connected my "double black" to connection #1, the wipers immediately turned on. So I moved them back to connection "3/4".

Maybe I have the wrong switch since I dont have a connection "8"?

Thanks,
Bob
