Holes in a 1275 block - question??

[Bruce_B]

So I'm cleaning the 1275 block getting ready for a rebuild and I notice two internal 'holes' in the block.

First one is under the main bearing, not affecting anything but seems that there's a rough break in the metal.

Two: in the front of the engine block where the timing chain/etc will go?

Are these from the factory - normal stuff? I didn't notice them before I sent them to the machine shop, but didn't really look either. Doesn't seem like something that happened in the machine shop or in transport.

Ideas?



[Bugeye58]

Bruce, the hole above the center main is normal for most 1275 blocks. There were some made without the hole, and they are much sought after by us racer types. It won't hurt anything to take a small grinder and smooth out the casting around the hole, blending everything to a nice gentle radius, This will help alleviate any stress cracks from developing. I wouldn't worry about it at all for a strictly street engine. Different story if you're planning on running 8000 RPM and 14:1 compression. Although, they've been known to stand that, too.
As to the hole in the front, you may be talking about the oil feed to the timing cover. Hard to say without more specifics. I'll look at a block this afternoon and see if I can figure out which hole you're referring to.
Jeff



[Bruce_B]

Jeff,

Thanks, puts my mind at ease. I'm going to go take a picture of the front hole and post it.



[Bruce_B]

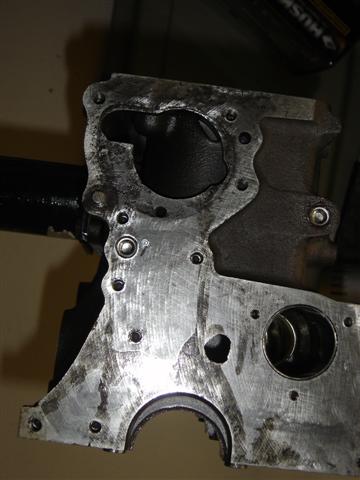

Here's the picture, it's just to the left of the cam bearing.



[Bruce_B]

Re: Holes in a 1275 block - question?? Answer foun

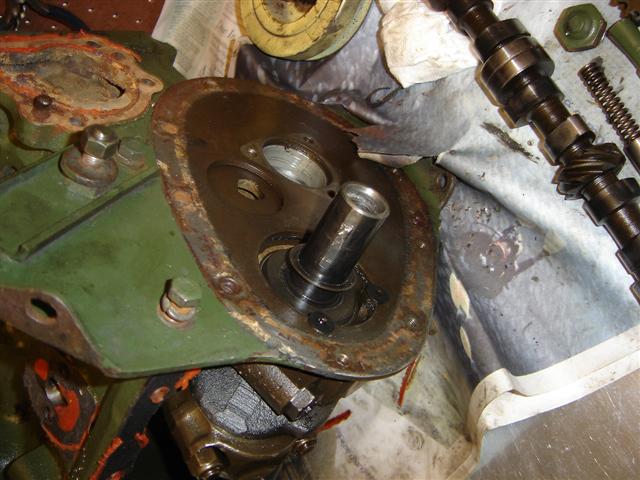

It would be nice if I used the stuff I saved. Here's a picture I have when I disassembled the engine and sure enough...the hole is there...So all is good. Thanks.



[Hap Waldrop]

Re: Holes in a 1275 block - question?? Answer foun

It just a splash hole to let oil into the timing chain area.
