General Tech Figure 8s

[KVH]

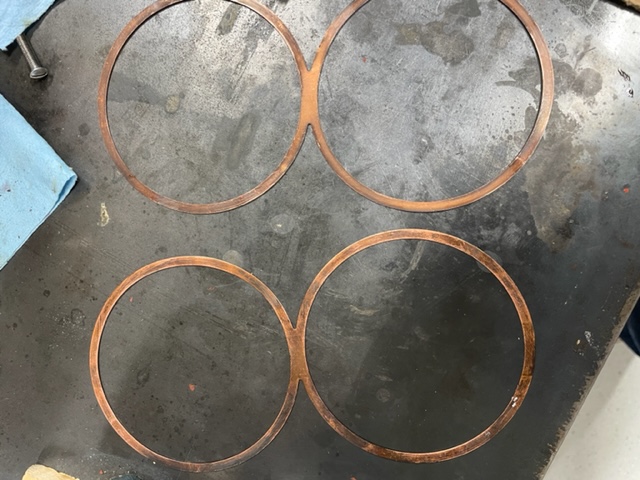

Would anyone here be nervous using these copper figure 8 gaskets. They are straight, not bent, never used, but they are ten years old and are showing tarnish. Not sure what that means, or if relevant. FYI, I have new steel ones as well. Thoughts?



[sp53]

I like the copper. I believe copper was used originally and plus they came with a plastic coating of some kind over that. With these cars getting older, I would consider the main concern on figure 8 gaskets is how they sit in the block. I have seen engines where the pitting inside the block had almost been destroyed the flat surface were the figure 8 rests. The Wellseal stuff might seal the area where the flat part is almost nil if that is the case. However, someone has probably figured out something for that problem.

steve



[Hamish Racing]

Heat them up to cherry red to anneal them and use them.



[CJD]

I would just use them. +1 on using wellseal.



[Geo Hahn]

Figure of Eight

I used Aviation Form-A-Gasket No 3 on the advice of someone we all knew.

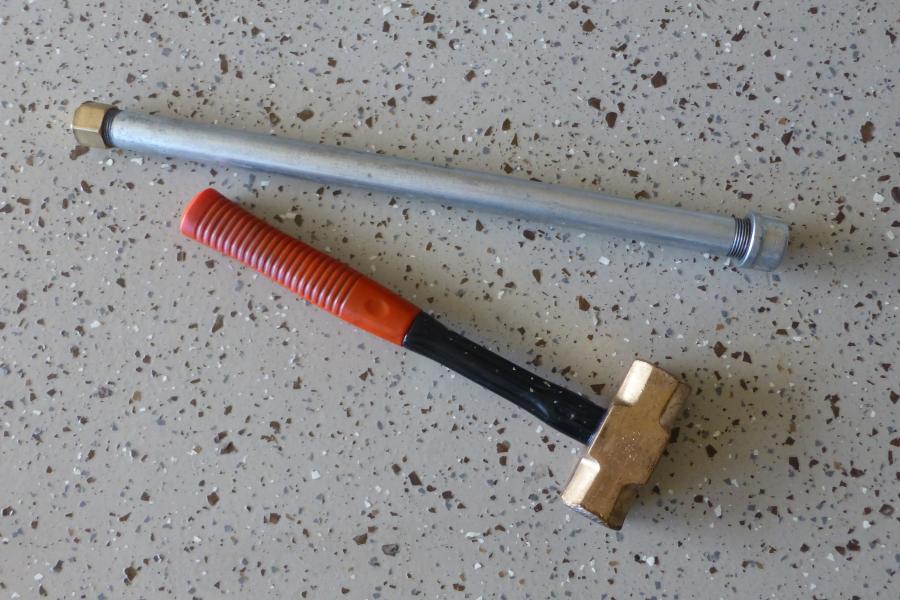

Have you already banged out the old liners? If not, I've got a tool made for that task.



[groupdeville]

I made a similar tool a while ago, and, while purchasing the parts at the local hardware store, the clerk thoughtfully asked if I was making a pipe bomb. I told him no, because if I were making an explosive device, I wouldn't be paying extra for the brass end caps!



[KVH]

I’m OK for now. I just rapped a 16 inch 1X 2 up there. The risk is getting wood debris near the bearings but I was careful.



[TomMull]

You were lucky. When they get stuck they can get really stuck.

Tom
