TR2/3/3A TR-3A [pre TS60000] engine to chassis earthing

[angelfj1]

Need your sage advice regarding the correct point for connecting the earthing strap between the engine and chassis. I understand the connection is near the engine mount, but could not remember if it was the driver or passenger side. Any photos would be appreciated.

Thanks in advance!



[PeterK]

Driver side - attaches between one bolt of the engine mount at the frame and the front engine plate.

Sorry no picture handy.



[NutmegCT]

Maybe this will help? (or at least someone will let me know I've got mine in the wrong place ...)



[prb51]

TS14502L
Mounted to the engine mount (high point left) and to the frame thru the bolt that secures the rubber block steady braket/ block base.

https://i216.photobucket.com/albums/cc138/prb51/DSC01088.jpg



[TR3driver]

or at least someone will let me know I've got mine in the wrong place ...)

Not quite sure, but doesn't look right to me. Looks like you got it on the pinch bolt for the steering tube; instead of the bolt for the motor mount to the frame.

However I believe the other end is correct, on the block side of one of the timing cover bolts. This is mentioned in the factory workshop manual, in the section about installing the timing cover (bottom of B34).



[angelfj1]

Thanks guys. I think I'll wait for a concensus and perhaps Don Elliott will chime in.

Frank



[NutmegCT]

Randall - you have a photographic memory. Just checked my old workshop manual and that's exactly what it says at the bottom of Engine, p. 34.

Thank you!

Tom



[PeterK]

AGAIN...

Bentley P34 bottom as Randal pointed out

"NOTE - See that the short earth bonding strip from engine to chassis frame is attached under the head of the bolt which aligns with the L.H. rubber mounting attaching nut."

i.e. <div class="ubbcode-block"><div class="ubbcode-header">Quote:]Driver side - attaches between one bolt of the engine mount at the frame and the front engine plate. [/QUOTE]

To further clarify, it attaches to one of the timing cover bolts that goes through the front engine plate - one of the ones with a bolt through rather than into the block. The other side bridges the rubber engine mounting to complete the ground.



[angelfj1]

Thank you gentlemen!!!



[PeterK]

Sorry fj, I didn't mean to shout and sound so abrupt. One of those days. Again, sorry for my tone.

Peter

Anyway, I went out to my shop and tool a couple of pictures for you. This is looking over the driver side front fender to the left of the distributor, radiator hose on left. The ground wire loops around out of the picture

I couldn't get all the connections in focus at the same time so I made an inset with detail of the upper attachment.

Hope this helps. I know pictures always work better with me too.



[TR3driver]

Randall - you have a photographic memory.

Nah, what I've got is a PDF file of the Bentley manual on every computer

All I remembered was that it was mentioned.



[angelfj1]

Peter: No sweat. Chill out man.

Thank you very much for the outstanding photo.

Frank



[Don Elliott]

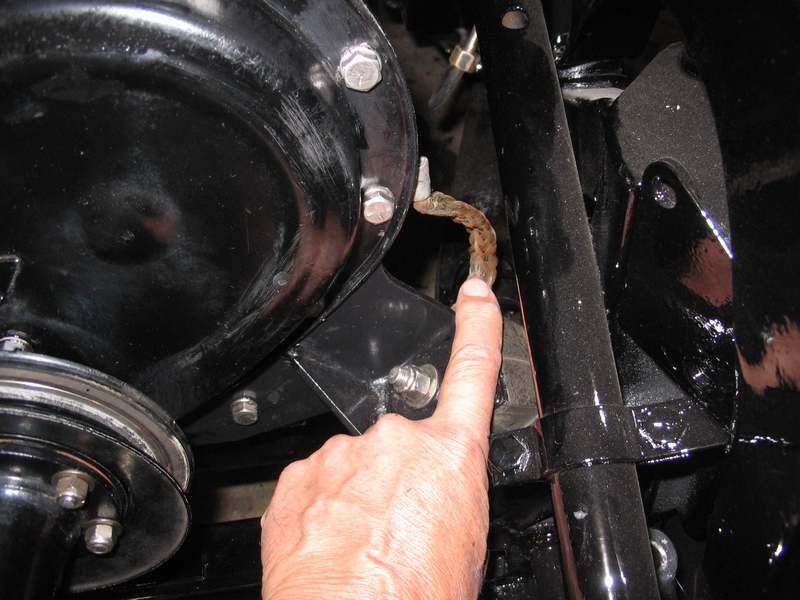

Here's my photo Frank



[angelfj1]

Thank you Mr. TR!!! As always accurate and timely. :banana:
