Hap Waldrop

Hap Waldrop

Yoda
Country flag
Offline

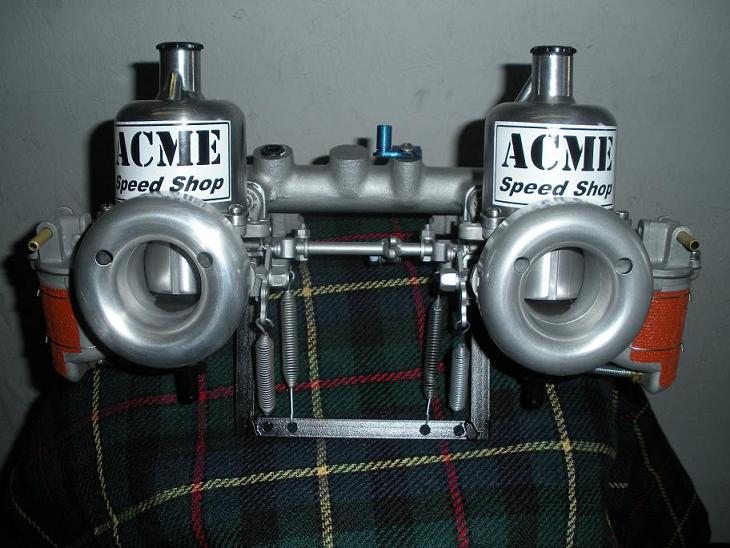

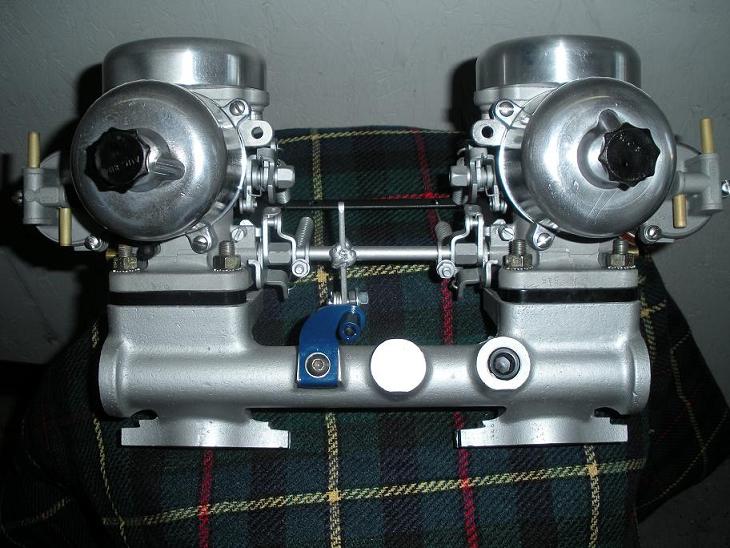

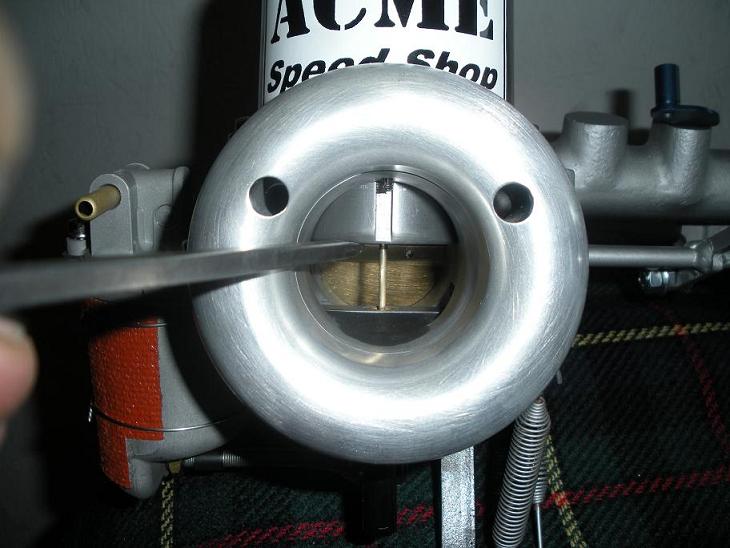

I know porn will get you banned here,well I'm going to take my chances :smile: Here a set of race prepped HS6s I just finished for a MGB vintage customer, I'm pretty proud of them, they have a bunch of bells and whistle, tweaks and mods, including custom CNC velocity stacks we made for them. We'll Use the K&N cone filters on the stacks, the velocity stack's OD were made to fit the K&N cone filters.


Attachments

  • 15341.jpg
    76.7 KB · Views: 1,097
  • 15342.jpg
    83.8 KB · Views: 1,093
  • 15343.jpg
    64 KB · Views: 1,088
Nice Hap, I can't tell by the picks, did you epoxy ramp them?

Pat

Hap's photos are certainly examples of professional carb porn--beautiful work.

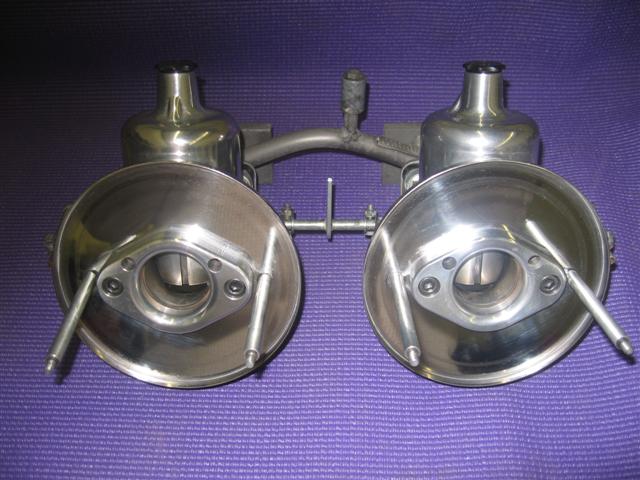

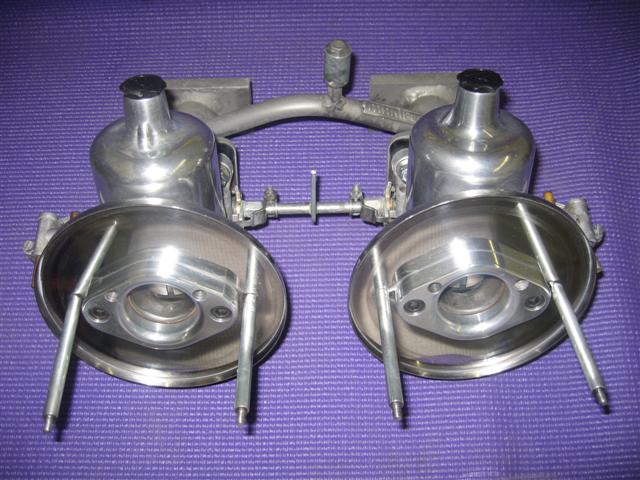

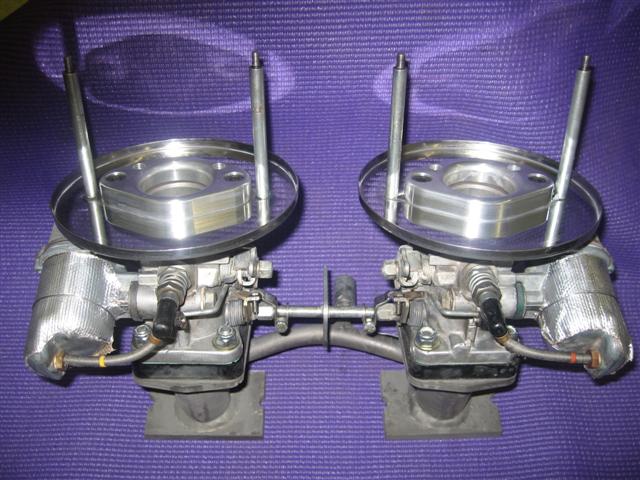

Here is some amateur stuff--the HS 6's for my Elva on a Maniflow intake manifold. I use the thick round K&N's.


Attachments

  • 15379.jpg
    56.2 KB · Views: 970
  • 15380.jpg
    63.7 KB · Views: 949
  • 15381.jpg
    65.4 KB · Views: 954

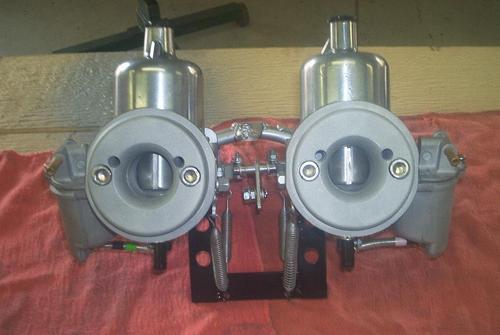

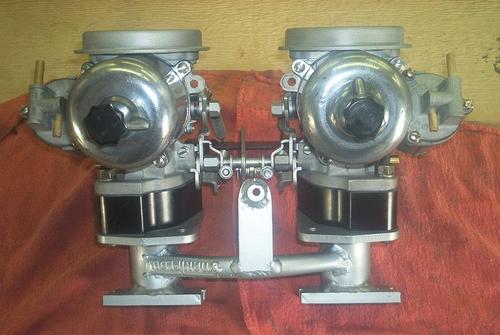

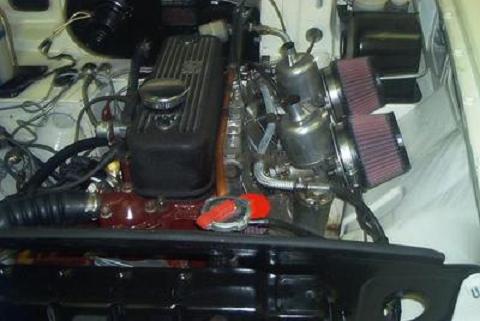

Nice looking carbs Michael. The last set of race HS6s I built I used a customer supplied Maniflow intake, I have to say I like the Lynx aluminum intake better after working wth both, you have to make your own throttle linkage bar, but I like being able to do more porting to the cast aluminum intake, with the tubing ones, you can clean them up, but thats about it, since it is a piece of pipe. These carbs will use the K&N RU-4110 univiersal cone filter like these, they flow great and are real easy to get on and off in a hurry, we disign the velocity stack to 3.5' in diameter to accept the K&N filter. Also here's a couple of shot of the HSs set for a spridget 1275 I did a while back using the Miniflow intake, the velocity stacsk are basicly the same, but these were made by somen else out of nylon, I likes the idea of maing them out of aluminum, so we tweaked the desing and bit and made a run of aluminum ones.


Attachments

  • 15385.jpg
    25.4 KB · Views: 913
  • 15386.jpg
    28.6 KB · Views: 900
  • 15387.jpg
    23.1 KB · Views: 919

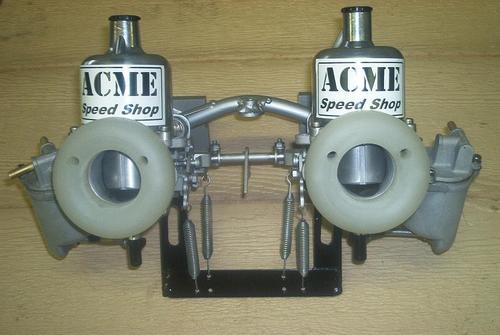

Sorry, that above set was a set I did for a Midget with twin HS4s, here's the set of HS6 with the nylon stacks.


Attachments

  • 15388.jpg
    26.8 KB · Views: 903
Hap--

Your work is superb. I'm going to be down at CMS for the VDCA event February 21-22. Any chance I will see you there?

Hi guys, I'm into SU carb porn too. You all have some fine looking work on display, I am impressed. Here is some more amature porn. This is my tripple HD6 set-up I put together last year. Manifolds are DW, just like stock Healey tri-carb except cast with thicker walls and can be enlarged to 2". I don't have much experience at posting pictures so I hope this works.

Dave Phillips


Attachments

  • 15392.jpg
    25.9 KB · Views: 907
Dave,

The picture doesn't due justice to the fine work you did on your tri-carb
set-up. Is everything ready to ROCK for this years SOVREN race season? I stopped by to talk to Arnie Lyoning today about flow testing my head after the massaging I gave it to match it up to the Ruddspeed triple 2" SU HD8 system I'm installing. I maybe looking at a cam swap with the increase in flow I now have. I'll post pic.s of my system when completed. I really got to get moving on this project since I also schedule dyno time for next month while at Lyonings today.

Michael Oritt said:
Hap--

Your work is superb. I'm going to be down at CMS for the VDCA event February 21-22. Any chance I will see you there?
Click to expand...


Believe it or not, I will be there, helping a MGB GT and hanging around a couple of Moragan buddies, look me up. I've been wanting to go to a VDCA event, so here's my chance, only about 150 mils from home.

Heat resistent material, got it from Pegasus, comes in square sheets per foot, I found many purposes for it.

I enjoy the petite stuff but what really starts my motor (literally) is the "big boy"
2" HD 8 triple SU system. I just finished the final mock-up with my Ruddspeed
manifold and 3 modified 2" SU's that I'm using on my Austin-Healey 100-6 MM this race season.

Custom cold air box and racing header heat shield to aid in performance.

Forgot to show what's "under" the cold air box.

Dougie

dougie said:
I enjoy the petite stuff but what really starts my motor (literally) is the "big boy"
2" HD 8 triple SU system.
Click to expand...

Yes, the factory always went for 2", but I have never seen any actual data that justified going above triple 1 3/4" - anyone else seen anything?
