Redoing dash question for 1958 Sprite

M

Mike

Guest
Guest
Offline
I have googled and searched my Haynes book for the proper dash set up for controls. Can someone post a dash picture that show where the controls (key,choke, turn signal, lights,etc) are located or refer me to a past post?

Thanks,

Mike


scoutll

Jedi Knight
Country flag
Offline
Re: Redoing dash question

Mike,

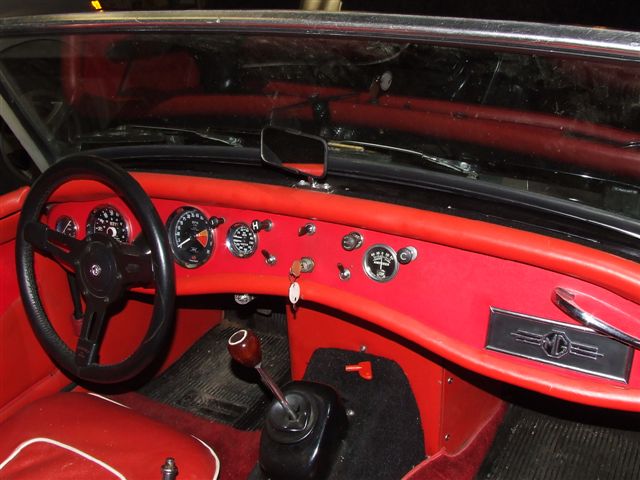

Here is the MK 1 dash, a lot like yours.

Turn signal switch top, wipers lower left, lights lower right,

Key middle.

knobs from left are starter, heater, washer, choke.

Someone with a sprite should chime in shortly if there is much difference.


Attachments

  • 14860.jpg
    63.2 KB · Views: 335
OP
M

Mike

Guest
Guest
Offline
Re: Redoing dash question

Thanks Tony, it's a 1958 Bug Eye. Edit function can be a life saver.

Mike


jlaird

Great Pumpkin
Country flag
Offline
Re: Redoing dash question

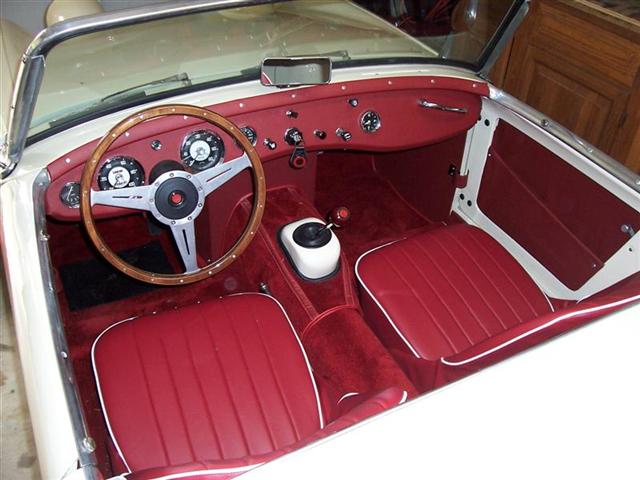

Try this.


Attachments

  • 14861.jpg
    53.4 KB · Views: 302

spritenut

Luke Skywalker
Offline
Re: Redoing dash question

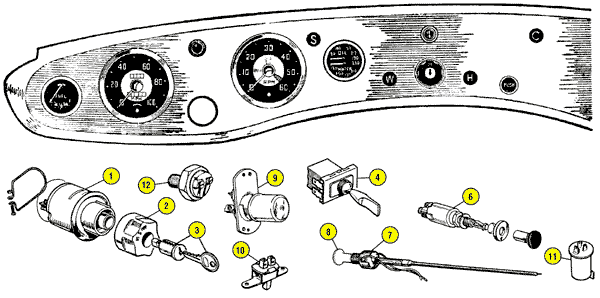

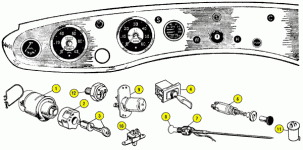

58 Sprite dash
Fuel on left, Speedo, Tach, oil/water
Cables, Choke next to tach, starter far right top heater left side next to washer
Switches, wiper left of ignition/light (center) heat (cable) to the right of Ig/lt
Signal switch center above ign/light
Signal light is center above steering wheel.


mxp01

Jedi Warrior
Country flag
Offline
Re: Redoing dash question

You should get a Moss catalogue. They have very good illustrations in it.

MXP


jlaird

Great Pumpkin
Country flag
Offline
Re: Redoing dash question

The far right gauge above is an optional clock.


texas_bugeye

Jedi Knight
Offline
Re: Redoing dash question

59 sprite dash the choke and starter pulls not in the dash yet. other wise this is it. I think.


jlaird

Great Pumpkin
Country flag
Offline
Re: Redoing dash question

Starter and choke seem to be backwars to me. All my Bugeyes have had the starter way right.


bugimike

Yoda
Offline
Re: Redoing dash question

I agree, Jack, that puts the starter cable right in line with the solenoid and the choke right behind the carbs!


texas_bugeye

Jedi Knight
Offline
Re: Redoing dash question

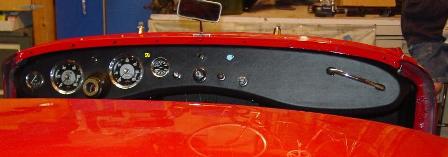

Sorry about the no picyure thing. The yellow dot is about where the choke goes and the blue is about where the stater pull goes.Stater pull should come straight thru the bulk head
to the starter switch.


Attachments

  • 14971.jpg
    14.6 KB · Views: 139

Sarastro

Obi Wan
Gold
Country flag
Offline
Re: Redoing dash question

The pictures in the Moss catalog are copied from the original parts manuals, so they should be definitive.

I have a copy of the original owner's manual ("driver's handbook") but it shows only the right-hand drive version. The LHD version is essentially a flipped version of the RHD, except that the heater and wiper controls are in the same place, as are the choke and starter, which seems essential.


texas_bugeye

Jedi Knight
Offline
Re: Redoing dash question

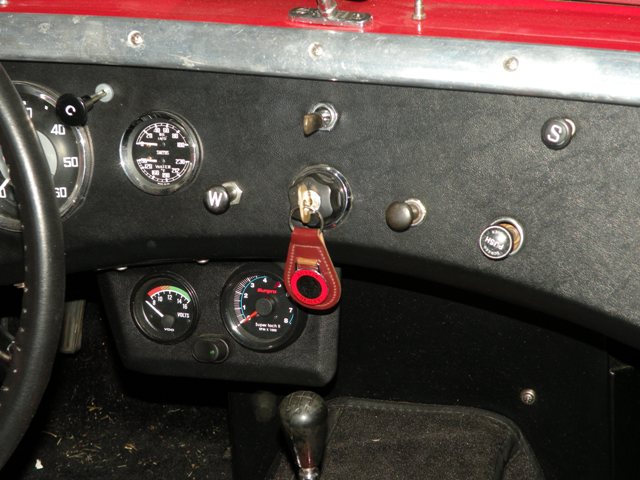

I dont think they moved the location of the choke and stater switch. The starter cable would not reach from any other location.


Attachments

  • 14985.jpg
    65.6 KB · Views: 172

jlaird

Great Pumpkin
Country flag
Offline
Re: Redoing dash question

It would be next to impossable to have the starter anywhere but right behind the starter switch. It just ain't made to work otherwise.


jvandyke

Luke Skywalker
Offline
Re: Redoing dash question

So, the starter pull switch on a BE is way over in front of the passenger, but on the MKI Midget it's next to the tach. I'm wondering because the PO ditched it for a push button and a solenoid and I kinda like the pull knob so thought I'd return to it (bought this recently ebay )

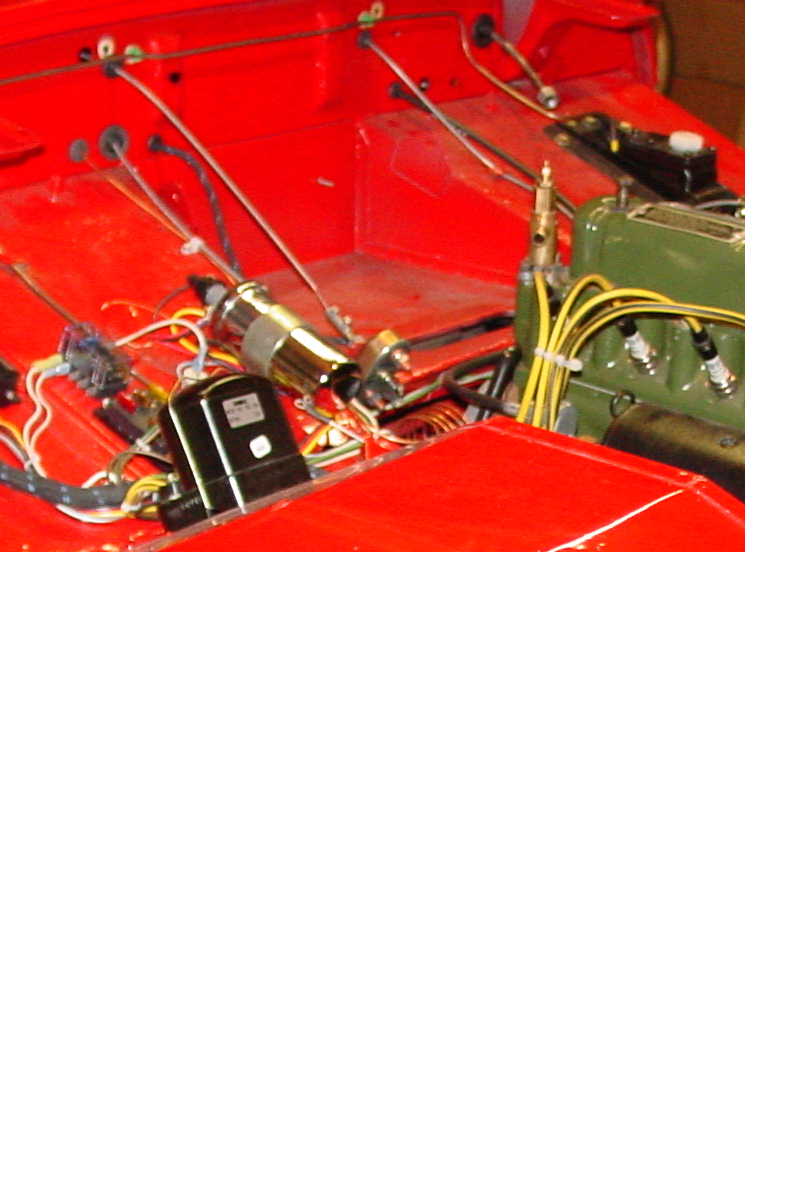

There's a mounting ear right in front of the heater box on the right edge that I assumed was where the original starter switch would be mounted, cable straight through firewall and would end up roughly where the BE has it, don't see how it could ever snake over to the tach side. Enlighten me. I'll go look for pictures. I remember seeing Tony's '63 has a nice pretty engine bay shot but can I find it back? noooooo


texas_bugeye

Jedi Knight
Offline
Re: Redoing dash question

I should be around next weekend I could swing by and you can take a look. Your in north dallas? Maybe Mike (Texas sprite) could come too! need to get out for a drive.
